CIP

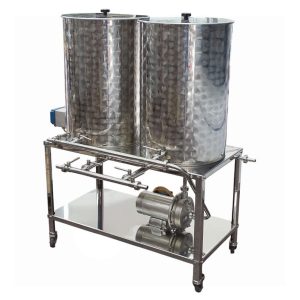

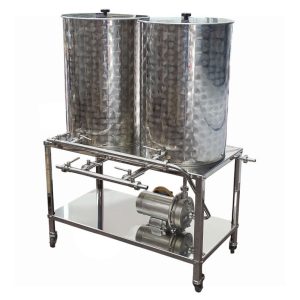

The CIP-52 is a mobile machine to the sanitation and sterilization of vessels and piping routes. This is a fully equipped system for breweries and other food production plants : Cleaning-In-Place. The CIP equipment provides heating and circulation of alkaline and acid solutions using a pump through pipe system, hoses and sanitary shower that sprays sanitary solution on interior walls of the sanitized vessel. The device consists of two separate containers with nominal volume of 50 liters and one neutralization vessel (23 l), one centrifugal pump, electric control panel, manual valves and all installation pipes as well. Digital temperature control in range of 0-80 °C. This type of the CIP station is recommended for cleaning and sanitation of fermentation tanks, storage tanks, water tanks with volume from 0 up to 2000 liters and all piping routes and other facilities that come in contact with beverages or food.

Functions of the vessels (3):

The CIP-101 is a mobile machine to the sanitation and sterilization of vessels and piping routes. This is a fully equipped system for breweries and other food production plants : Cleaning-In-Place. The CIP equipment provides heating and circulation of alkaline and acid solutions using a pump through pipe system, hoses and sanitary shower that sprays sanitary solution on interior walls of the sanitized vessel. The device consists of one stainless steel container with nominal volume of 100 liters and one neutralization vessel (53 l), one centrifugal pump, electric control panel, manual valves and all installation pipes as well. Digital temperature control in range of 0-80 °C. This type of the CIP station is recommended for cleaning and sanitation of fermentation tanks, storage tanks, water tanks with volume from 0 up to 4000 liters and all piping routes and other facilities that come in contact with beverages or food.

Functions of the vessels (2):

The CIP-102 is a mobile machine to the sanitation and sterilization of vessels and piping routes. This is a fully equipped system for breweries and other food production plants : Cleaning-In-Place. The CIP equipment provides heating and circulation of alkaline and acid solutions using a pump through pipe system, hoses and sanitary shower that sprays sanitary solution on interior walls of the sanitized vessel. The device consists of two separate containers with nominal volume of 100 liters and one neutralization vessel (53 l), one centrifugal pump, electric control panel, manual valves and all installation pipes as well. Digital temperature control in range of 0-80 °C. This type of the CIP station is recommended for cleaning and sanitation of fermentation tanks, storage tanks, water tanks with volume from 0 up to 4000 liters and all piping routes and other facilities that come in contact with beverages or food.

Functions of the vessels (3):

The equipment CIP-102 is installed in a rigid frame provided by lockable wheels. Used material is stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316) according of selected variant. Containers (vessels) are not insulated.

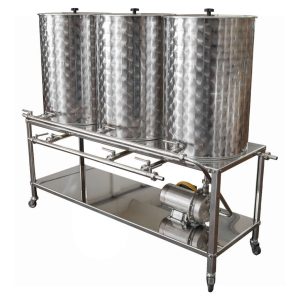

The CIP station CIP-53 with an usable volume of 3×50 liters is used for cleaning, sanitation and sterilization of vessels and pipes in the brewery. This type of the CIP station is recommended for cleaning and sanitation of tanks with volume from 0 to 2000 liters.

Functions of the vessels (4):

The CIP-202 is a mobile machine to the sanitation and sterilization of vessels and piping routes. This is a fully equipped system for breweries and other food production plants : Cleaning-In-Place. The CIP equipment provides heating and circulation of alkaline and acid solutions using a pump through pipe system, hoses and sanitary shower that sprays sanitary solution on interior walls of the sanitized vessel. The device consists of two separate containers with nominal volume of 200 liters and one neutralization vessel (70 l), one centrifugal pump, electric control panel, manual valves and all installation pipes as well. Digital temperature control in range of 0-80 °C. This type of the CIP station is recommended for cleaning and sanitation of fermentation tanks, storage tanks, water tanks with volume from 0 up to 8000 liters and all piping routes and other facilities that come in contact with beverages or food.

Functions of the vessels (3):

The equipment CIP-202 is installed in a rigid frame provided by lockable wheels. Used material is stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316) according of selected variant. Containers (vessels) are not insulated.

CIP station for the cleaning and sanitizing on place with ozone : Unique special cleaning-in-place machine with the cleaning-sanitizing technology based on ozone for all beverage and food production equipment. The machine includes one oxygen tank (50 liters) for cleaning, sanitation and sterilization of vessels and pipes in the brewery. Ozone is used as the sanitizing media instead of chemical-based disinfection solutions.

Available in two designs :

• CIP-O-51 : 1-phase electrical power connection 1×220-240V / 50Hz . This simplified type of CIP station has wheels so the machine is easily movable. Lower price of a generator of oxygen. Simplified control system, without a deaerating feed tank and a pump.
• CIP-O-53 : 3-phases electrical power connection 3×380-420V / 50Hz. This type of CIP station has adjustable legs. Fully equipped ozone CIP station: integrated deaerating feed tank. Control system with a touch panel. Integrated control for ORP (ozone). Checking the pressure over injector. Integrated ozone destructor from the degassing tank.

The CIP-503 is a machine to the sanitation and sterilization of vessels and piping routes. This is a fully equipped system for breweries and other food production plants : Cleaning-In-Place. The CIP equipment provides heating and circulation of water, alkaline and acid solutions through sanitary shower that sprays sanitary solution on the wall of a vessel. The device consists of three separate containers with nominal volume of 500 liters and one neutralization vessel (150 l), one or two centrifugal pumps, manual and automatic valves and all installation pipes as well. The steam version of the CIP station includes also a pipe heat exchanger (the heating by hot steam using an external hot steam generator) with a digital temperature control in range of 0-80 °C. This type of the CIP station is recommended for cleaning and sanitation of tanks with a volume more than 6000 liters.

Two variants of the heating system :

1. S : Steam version – The heating has to be ensured using an external hot steam generator that is not included in the price.
2. E : Electric version – The heating is ensured using an internal electric heating elements that are included in the price.

Functions of the vessels (4):

The equipment CIP-503 is installed in a rigid frame provided by lockable wheels. Used material is stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316) according of selected variant. Containers (vessels) are not insulated.

The CIP-504 is a machine to sanitation and sterilization of vessels and piping routes. This is a fully equipped system for breweries and other food production plants : Cleaning-In-Place. The CIP equipment provides heating and circulation of water, alkaline and acid solutions through sanitary shower that sprays sanitary solution on the wall of a vessel. The device consists of four separate containers with nominal volume of 500 liters and one neutralization vessel (150 l), one or two centrifugal pumps, manual and automatic valves and all installation pipes as well. The steam version of the CIP station includes also a pipe heat exchanger (the heating by hot steam using an external hot steam generator) with a digital temperature control in range of 0-80 °C. This type of the CIP station is recommended for cleaning and sanitation of tanks with a volume more than 6000 liters.

Main benefit of the four-vessel CIP system is two separated tanks for alkaline solution – first tank to alkaline cleaning-sanitation of the brewhouse, second tank to alkaline cleaning-sanitation of other brewery equipment (tanks, filter, pipes …). Used material is stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316) according of selected variant. Containers (vessels) are not insulated.

Two variants of the heating system :

1. S : Steam version – The heating has to be ensured using an external hot steam generator that is not included in the price.
2. E : Electric version – The heating is ensured using an internal electric heating elements that are included in the price.

Functions of the vessels (5):

The equipment CIP-504 is installed in a rigid frame provided by lockable wheels. Used material is stainless steel 1.4301 (AISI 304). Containers (vessels): not equipped with insulation.

The CIP-1004SQ (version of the standard quality) is used for sanitation and sterilization of vessels and piping routes. This is a fully equipped system for breweries and other food production plants : Cleaning-In-Place. The CIP equipment provides heating and circulation of water, alkaline and acid solutions through sanitary shower that sprays sanitary solution on the wall of a vessel. The device consists of four separate containers with nominal volume of 1000 liters and one neutralization vessel (300 l), one or two centrifugal pumps, manual and automatic valves and all installation pipes as well. The steam version of the CIP station includes also a pipe heat exchanger (the heating by hot steam using an external hot steam generator) with a digital temperature control in range of 0-80 °C. This type of the CIP station is recommended for cleaning and sanitation of tanks with a volume more than 12000 liters.

Main benefit of the four-vessel CIP system is two separated tanks for alkaline solution – first tank to alkaline cleaning-sanitation of the brewhouse, second tank to alkaline cleaning-sanitation of other brewery equipment (tanks, filter, pipes …). The equipment CIP-1004SQ is installed in a rigid frame provided by lockable wheels. Used material is stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316) according of selected variant. Containers (vessels) are not insulated.

Two variants of the heating system :

1. S : Steam version – The heating has to be ensured using an external hot steam generator that is not included in the price.
2. E : Electric version – The heating is ensured using an internal electric heating elements that are included in the price.

Functions of the vessels (5):

The equipment CIP-1004SQ is installed in a rigid frame provided by lockable wheels. Used material is stainless steel 1.4301 (AISI 304). Three vessels designed for hot dilution are equipped with insulation.

The CIP-1004HQ (version of the high quality) is used for sanitation and sterilization of vessels and piping routes. This is a fully equipped system for breweries and other food production plants : Cleaning-In-Place. The CIP equipment provides heating and circulation of water, alkaline and acid solutions through sanitary shower that sprays sanitary solution on the wall of a vessel. The device consists of four separate containers with nominal volume of 1000 liters and one neutralization vessel (300 l), one or two centrifugal pumps, manual and automatic valves and all installation pipes as well. The steam version of the CIP station includes also a pipe heat exchanger (the heating by hot steam using an external hot steam generator) with a digital temperature control in range of 0-80 °C. This type of the CIP station is recommended for cleaning and sanitation of tanks with a volume more than 12000 liters.

Main benefit of the four-vessel CIP system is two separated tanks for alkaline solution – first tank to alkaline cleaning-sanitation of the brewhouse, second tank to alkaline cleaning-sanitation of other brewery equipment (tanks, filter, pipes …).

This high quality version includes several attributes and complements that increase the effectiveness of sanitation, reduce operational costs and are characterized as high luxury design. Used material is stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316) according of selected variant.

Advantages of the high quality version : Three containers (vessels) designed for hot dilution are equipped with insulation, the surfaces of all tanks are polished, all external plates are welded,  conductivity sensor for recording the quality of sanitation dilution is included, Microbial filter (2.5 micron) included.

Two variants of the heating system :

1. S : Steam version – The heating has to be ensured using an external hot steam generator that is not included in the price.
2. E : Electric version – The heating is ensured using an internal electric heating elements that are included in the price.

Functions of the tanks (5):

The equipment CIP-1004SQ is installed in a rigid frame provided by lockable wheels. Used material is stainless steel 1.4301 (AISI 304). Three vessels designed for hot dilution are equipped with insulation.

The CIP-1504SQ (version of the standard quality) is used for sanitation and sterilization of vessels and piping routes. This is a fully equipped system for breweries and other food production plants : Cleaning-In-Place. The CIP equipment provides heating and circulation of water, alkaline and acid solutions through sanitary shower that sprays sanitary solution on the wall of a vessel. The device consists of four separate containers with nominal volume of 1500 liters and one neutralization vessel (450 l), one or two centrifugal pumps, manual and automatic valves and all installation pipes as well. The steam version of the CIP station includes also a pipe heat exchanger (the heating by hot steam using an external hot steam generator) with a digital temperature control in range of 0-80 °C. This type of the CIP station is recommended for cleaning and sanitation of tanks with a volume more than 18000 liters.

Main benefit of the four-vessel CIP system is two separated tanks for alkaline solution – first tank to alkaline cleaning-sanitation of the brewhouse, second tank to alkaline cleaning-sanitation of other brewery equipment (tanks, filter, pipes …). The equipment CIP-1504SQ is installed in a rigid frame provided by lockable wheels. Used material is stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316) according of selected variant. Containers (vessels) are not insulated.

Two variants of the heating system :

1. S : Steam version – The heating has to be ensured using an external hot steam generator that is not included in the price.
2. E : Electric version – The heating is ensured using an internal electric heating elements that are included in the price.

Functions of the vessels (5):

The equipment CIP-1504SQ is installed in a rigid frame provided by lockable wheels. Used material is stainless steel 1.4301 (AISI 304). Three vessels designed for hot dilution are equipped with insulation.
