FBD-12B Fast bottle dryer with 2×12 positions
FBD-12B is an easy-use bottle rack for fast gravity drying of water cleaned bottles. It allows to dry up to 48pcs bottles in the same time. This is a recommended accessory for the FBW-12B Fast bottle washer with 12 positions.
This set contains 1 drip tray and 2 racks (each for 4×3=12 bottles with diameter up to 85mm).
This system can also be used for larger bottles, such as Champagne (D>85mm). In that case one rack can hold about 8 bottles.
FBD-24B Fast bottle dryer with 2×24 positions
FBD-24B is an easy-use bottle rack for fast gravity drying of water cleaned bottles. It allows to dry up to 48pcs bottles in the same time. This is a recommended accessory for the FBW-24B Fast bottle washer with 24 positions.
This set contains 1 drip tray and 2 racks (each for 6×4=24 bottles with diameter up to 67mm)
This system can also be used for larger bottles, such as Steinies (D=80mm). In that case one rack can hold about 18 bottles.
FBW-12B Fast bottle washer with 12 positions
FBW-12B is an easy-use high-capacity bottle cleaning and sanitizing equipment with 12 positions for glass bottles that will cut your bottle washing time in half in comparation with manual bottle washing!
FBW-24B Fast bottle washer with 24 positions
FBW-24B is an easy-use high-capacity bottle cleaning and sanitizing equipment with 24 positions for glass bottles that will cut your bottle washing time in half in comparation with manual bottle washing!

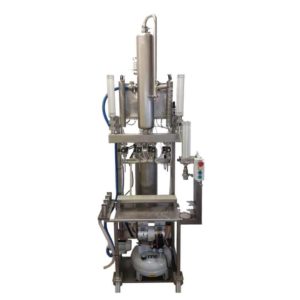

BFSA4-250 Semi-automatic machine to rinsing, filling and capping of bottles : 150-250pcs per hour
Operation capacity: 150-250 bph (depending on fill temperature and the operator, calculated for bottles 330 ml)
Designed for : natural or carbonizated beverages (beer, wine, cider, soft drinks, water)
Type of bottles : Glass bottles (330 ml or 750 ml)
This machine is an original Czech made product.

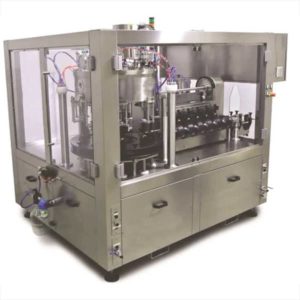

BFL-MB1200 Automatic bottle filling line – up to 1200 bph
The automatic bottle filling line BFL-MB1200 is fully equipped filling technology for the production capacity up to 1200 bottles (0,33L) per hour. It consists of these components and services :
- Automatic monoblock machine for rinsing, filling and capping the bottles.
- Special CIP bottle for full cleaning and sanitizing the machine in closed circuit.
- High temperature kit for the hot internal cleaning of the machine at 85 ⁰C using a caustic solution.
- Linear labelling unit for application of paper labels on the bottles.
- Photocell to avoid bottle jam out in the labelling unit.
- Coder integrated into the labelling unit to printing the filling day date.
- Rotary table to inserting the bottles.
- Rotary table to full bottles accumulation before unloading (Ø800mm).
- Conveyor system to connection of all units each other.
The bottle filling line is designed to be operated only with one worker.

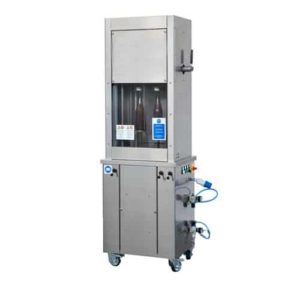

BFSA2-200 Semi-automatic bottle filling machine
Semi-automatic bottle filler – type BFSA2-200
Hourly output: 150-200 bph (depending on fill temperature and the operator)
For product : carbonizated beverages (beer, wine, cider, soft drinks, water)
For bottles : Glass bottles (350mm height / 120mm diameter )

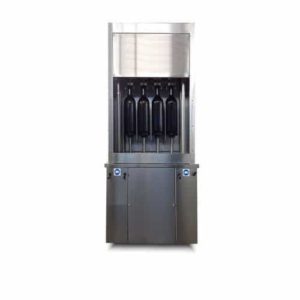

BFSA4-350 Semi-automatic bottle filler
Semi-automatic bottle filler – type BFSA4-350
Hourly output: 280-350 bph (depending on fill temperature and the operator)
For product : carbonizated beverages (beer, wine, cider, soft drinks, water)
For bottles : Glass bottles (350mm height / 120mm diameter )

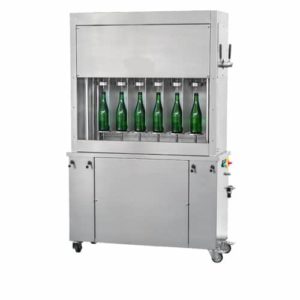

BFSA6-600 Semi-automatic bottle filler
Semi-automatic bottle filler – type BFSA4-350
Hourly output: 280-350 bph (depending on fill temperature and the operator)
For product : carbonizated beverages (beer, wine, cider, soft drinks, water)
For bottles : Glass bottles (350mm height / 120mm diameter )
RBF-800 : Rotational bottle filling machine (semi-automatic) 800 bph
Semi-automatic rotational bottle filling machine with adjustable filling capacity up to 800 bottles per hour.
Hourly output: 200-800 bph (depending on which carusel speed of rotation is set)
RBF-1200 : Rotational bottle filling machine (semi-automatic) 1200 bph
Semi-automatic rotational bottle filling machine with adjustable filling capacity up to 1200 bottles per hour.
Hourly output: 300-1200 bph (depending on which carusel speed of rotation is set)
BLA-MB1500 : Automatic bottle labelling unit (1500 bottles per hour)
Automatic bottle labelling machine for applying self-sdhesive labels – Model BLA-MB1500. Automatic linear labelling machine equipped to apply one self adhesive label on glass bottles. For bottles with maximal diameter 300mm. Capacity maximally 1500 bottles per hour.
BFL-KT1600 : Automatic bottling line for the filling + capping of bottles (up to 1600 bph) : only for non-carbonated beverages
The BFM-KT1600 is an automatic rotary bottle filling line with built-in bottle closure unit. Designed only for non-carbonated beverages. Capacity up to 1600 bottles per hour.
Designed for filling wine, fruit juices and other non-carbonated beverages into glass bottles. The bottles are automatically transported into the machine and are automaticall filled, after which they are automatically closed with a crown cap, cork or screw cap – depending on the installed closure unit type. 10 filling heads included.
BFL-KT2000 : Automatic bottling line for the filling + capping of bottles (up to 2000 bph) : only for non-carbonated beverages
The BFM-KT2000 is an automatic rotary bottle filling line with built-in bottle closure unit. Designed only for non-carbonated beverages. Capacity up to 2000 bottles per hour.
Designed for filling wine, fruit juices and other non-carbonated beverages into glass bottles. The bottles are automatically transported into the machine and are automaticall filled, after which they are automatically closed with a crown cap, cork or screw cap – depending on the installed closure unit type. 14 filling heads included.
BFL-KT2200 : Automatic bottling line for the filling + capping of bottles (up to 2200 bph) : only for non-carbonated beverages
The BFM-KT2200 is an automatic rotary bottle filling line with built-in bottle closure unit. Designed only for non-carbonated beverages. Capacity up to 2200 bottles per hour.
Designed for filling wine, fruit juices and other non-carbonated beverages into glass bottles. The bottles are automatically transported into the machine and are automaticall filled, after which they are automatically closed with a crown cap, cork or screw cap – depending on the installed closure unit type. 16 filling heads included.
CPFL-KT1400 : Counter pressure system for the isobaric filling of carbonated beverages into glass bottles – up to 1150 bph
The CPFL-KT1400 is an fully automatic bottle filling and capping line (counter pressure bottle filling machine) designed for both non-carbonated and carbonated beverages like water, carbonated water, juice, beer, cider, wine or sparkling wine. The filling machine is equipped with 8 filling heads.
The system includes all equipment needed to the fully automatic filling non carbonated or carbonated beverages into glass bottles, capping of the bottles and their manual collectioning from the exit board.
Bottles can be loaded on the input conveyor manualy or some automatic system can be used before the input conveyor (not included).
Working capacity is up to 800/960/1150 bottles per hour (valid for filling carbonated beverages into the bottles with volume 0.7 / 0.5 / 0.33 liters)
BFM-KT1600C : Automatic compact bottling machine for the filling + capping the bottles (up to 1600 bph) : only for non-carbonated beverages
The BFM-KT1600C is an automatic rotary bottle filling machine with built-in bottle closure unit. Designed only for non-carbonated beverages. Capacity up to 1600 bottles per hour.
Designed for filling wine, fruit juices and other non-carbonated beverages into glass bottles. The bottles are manually loaded into the machine and then they are automatically filled, after which they are automatically closed with a crown cap, cork or screw cap – depending on the installed closure unit type. The machine is equipped with 10 filling heads.
BFM-KT2000C : Automatic compact bottling machine for the filling + capping the bottles (up to 2000 bph) : only for non-carbonated beverages
The BFM-KT2000C is an automatic rotary bottle filling machine with built-in bottle closure unit. Designed only for non-carbonated beverages. Capacity up to 2000 bottles per hour.
Designed for filling wine, fruit juices and other non-carbonated beverages into glass bottles. The bottles are manually loaded into the machine and then they are automatically filled, after which they are automatically closed with a crown cap, cork or screw cap – depending on the installed closure unit type. The machine is equipped with 14 filling heads.
BFM-KT2000C : Automatic compact bottling machine for the filling + capping the bottles (up to 2000 bph) : only for non-carbonated beverages
The BFM-KT2000C is an automatic rotary bottle filling machine with built-in bottle closure unit. Designed only for non-carbonated beverages. Capacity up to 2000 bottles per hour.
Designed for filling wine, fruit juices and other non-carbonated beverages into glass bottles. The bottles are manually loaded into the machine and then they are automatically filled, after which they are automatically closed with a crown cap, cork or screw cap – depending on the installed closure unit type. The machine is equipped with 14 filling heads.
CPFL-KT1800 : Counter pressure system for the isobaric filling of carbonated beverages into glass bottles – up to 1800 bph
The CPFL-KT1800 is an fully automatic bottle filling and capping line (counter pressure bottle filling machine) designed for both non-carbonated and carbonated beverages like water, carbonated water, juice, beer, cider, wine or sparkling wine. The filling machine is equipped with 10 filling heads.
The system includes all equipment needed to the fully automatic filling non carbonated or carbonated beverages into glass bottles, capping of the bottles and their manual collectioning from the exit board.
Bottles can be loaded on the input conveyor manualy or some automatic system can be used before the input conveyor (not included).
Working capacity is up to 1000/1200/1400 bottles per hour (valid for filling carbonated beverages into the bottles with volume 0.7 / 0.5 / 0.33 liters)
