BHAC-3 Automatic Control System for brewhouses Oppidum
The BHAC3 is an automatic control system for the OPPIDUM wort preparation machines with computer support and most operations controlled automatically – according to a specified program from a central control panel. This control system cooperates with OPPIDUM machines with usable production volumes from 1000 up to 6000 liters of wort per one batch.
BHAC3 automatic control system for the brewery includes:
- Automatically controlled hot process of brewing – fully automatized management of the entire processes of production wort
- Automatic system for time-control of temperatures in fermentation and maturation process
- Automatic system for control of media
WCASB-3002 Two-stage block wort cooler-aerator 2×3000 liters per hour
The block system for precisse cooling and aeration of hot wort. This is a necessary equipment for preparation of wort after the hot wort brewing process and before start of the beer fermentation process. The cooling system includes two plate heat exchangers. 1-st heat exchanger is designed for cooling of wort from 98°C to appoximaly 30°C using cold drink water (12°-18°C) and purchasing hot water with temperature 80°C. 2-nd heat exchanger is designed for cooling wort from 30°C to approximaly 7-12°C (for bottom fermented beer types) or 15-24°C (for top fermented beer types) using cold glycol (-4°C). The plate heat exchanger and the aeration candle are attached to a stainless steel panel which is equipped with temperature sensors and digital displays.
BMTM-200 Termo-sleeve for the BREWMASTER BM-200
BMTM-200 Termo-sleeve is a recommended accessory for the BREWMASTER BM-200 brewhouse. This is used for insulation of the kettle to speed up heating of the kettle and saving energy. The termo-sleeve is also very recommended for use when is requirement for more than one brew cycle per day – in this case we recommend to use the fermentation and maturation tanks with volume total of daily produced wort.
BMTM-500 Termo-sleeve for the BREWMASTER BM-500
BMTM-500 Termo-sleeve is a recommended accessory for the BREWMASTER BM-500 brewhouse and BM-510 additional brewing boiler. This is used for insulation of the kettle to speed up heating of the kettle and saving energy. The termo-sleeve is also very recommended for use when is requirement for more than one brew cycle per day. In this case we recommend to use the fermentation and maturation tanks with volume total of daily produced wort.
BMTM-1000 Termo-sleeve for the BREWMASTER BM-1000
BMTM-1000 Termo-sleeve is a recommended accessory for the BREWMASTER BM-1000 brewhouse and BM-1010 additional brewing boiler. This is used for insulation of the kettle to speed up heating of the kettle and saving energy. The termo-sleeve is also very recommended for use when is requirement for more than one brew cycle per day. In this case we recommend to use the fermentation and maturation tanks with volume total of daily produced wort.
PHE-SWP250 Plate heat exchanger B10x80
PHE-SWP250 is the brazed (not be dismantled) plate heat exchanger with architecture B10x80. This equipment is used for the cooling of beer wort with maximal capacity 250 liters of beer wort per one hour, cooling down from 90°C to 25°C (if cold water 12°C is used as coolant) or from 25°C to 6°C (if glycol -4°C is used) . Two pieces of this PHE (double PHE system) are able to cool wort from 90°C to 6°C .
PHE-SWP500 Plate heat exchanger B28x86
PHE-SWP500 is the brazed (not be dismantled) plate heat exchanger with architecture B28x86. This equipment is used for the cooling of beer wort with maximal capacity 500 liters of beer wort per one hour, cooling down from 90°C to 25°C (if cold water 12°C is used as coolant) or from 25°C to 6°C (if glycol -4°C is used) . Two pieces of this PHE (double PHE system) are able to cool wort from 90°C to 6°C .

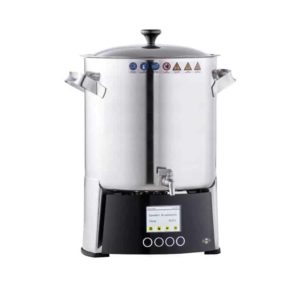

BREWMASTER BM-10 Compact wort brew machine – the 11L brewhouse
The small brewhouse machine for easy preparation of 11 liters beer wort in one batch using the infusion brewing method. Practical and easy to use, our new machine BREWMASTER BM-10 permits to prepare a good hand crafted beer, using fresh products any kind of recipe. The nano brewhouse produced of stainless steel. Maximal malt quantity 2.8 kg.
The BREWMASTER BM-10 produces 11 liters of beer wort per one batch (to production of 10 liters of beer)
PHE-GLP-500L9025 Plate heat exchanger 500 lt/hour
The PHE-GLP-500L9025 is a dismountable plate heat exchanger. This equipment is used for the cooling of beer wort with capacity : 500 liters of beer wort per one hour, cooling down from 90°C to 25°C or from 25°C to 6°C. Two pieces of this PHE (double PHE system) are able to cool wort from 90°C to 6°C.

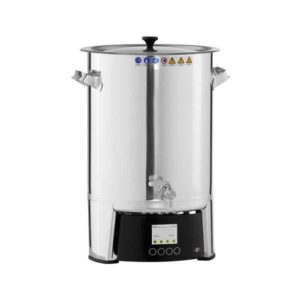

BREWMASTER BM-20 Compact wort brew machine – 25L brewhouse
The small brewhouse machine for easy preparation of 25 liters beer wort in one batch using the infusion brewing method. Practical and easy to use, our new machine BREWMASTER BM-20 permits to prepare a good hand crafted beer, using fresh products any kind of recipe. The nano brewhouse produced of stainless steel. Maximal malt quantity 6.0 kg.
The BREWMASTER BM-20 produces 25 liters of beer wort per one batch (to production of 20 liters of beer)
PHE-GLP-1000L9025 Plate heat exchanger 1000 lt/hour
The PHE-GLP-1000L9025 is a dismountable plate heat exchanger. This equipment is used for the cooling of beer wort with capacity : 1000 liters of beer wort per one hour, cooling down from 90°C to 25°C or from 25°C to 6°C. Two pieces of this PHE (double PHE system) are able to cool wort from 90°C to 6°C.
PHE-SWP1000 Plate heat exchanger B120Tx80
PHE-SWP1000 is the brazed (not be dismantled) plate heat exchanger with architecture B120Tx80. This equipment is used for the cooling of beer wort with maximal capacity 1000 liters of beer wort per one hour, cooling down from 90°C to 25°C (if cold water 12°C is used as coolant) or from 25°C to 6°C (if glycol -4°C is used) . Two pieces of this PHE (double PHE system) are able to cool wort from 90°C to 6°C .

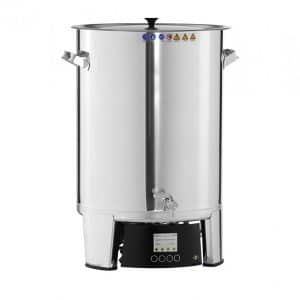

BREWMASTER BM-50 Compact wort brew machine – the 55L brewhouse
The small brewhouse machine for easy preparation of 55 liters beer wort in one batch using the infusion brewing method. Practical and easy to use, our new machine BREWMASTER BM-50 permits to prepare a good hand crafted beer, using fresh products any kind of recipe. The nano brewhouse produced of stainless steel. Maximal malt quantity 13 kg.
The BREWMASTER BM-50 produces 55 liters of beer wort per one batch (to production of 50 liters of beer)
PHE-GLP2-500L902506 Double plate heat exchanger 500 lt/hour
The PHE-GLP2-500L902506 is a set of two pieces of plate heat exchangers for cooling of beer (both ALE and LAGER types) that is a necessary equipment for preparation of wort produced by brewhouse with one batch volume 500 liters. This equipment is used for the cooling of beer wort in two steps : 1st heat exchanger : Cooling of 500 lt/hour from 90°C to 25°C + 2nd heat exchanger : Cooling of 500 lt/hour from 25°C to 6°C.
PHE-GLP2-1000L902506 Double plate heat exchanger 1000 lt/hour
The PHE-GLP2-1000L902506 is a set of two pieces of plate heat exchangers for cooling of beer (both ALE and LAGER types) that is a necessary equipment for preparation of wort produced by brewhouse with one batch volume 1000 liters. This equipment is used for the cooling of beer wort in two steps : 1st heat exchanger : Cooling of 1000 lt/hour from 90°C to 25°C + 2nd heat exchanger : Cooling of 1000 lt/hour from 25°C to 6°C.
WCASB-150 Compact cooler and aerator of wort 150 liters per hour
Compact cooler and aeration system for wort with performance 150 liters of wort per hour. The block system for precisse cooling and aeration of hot wort. This is a necessary equipment for preparation of wort after the hot wort brewing process and before start of the beer fermentation process. Two-stage tabular heat exchanger intended for cooling of the wort from 98 ° C to 7 ° C using 15 ° C and 1 ° C water before starting of beer fermentation process. The plate heat exchanger and the aeration candle are attached to a stainless steel panel which is equipped with temperature sensors and digital displays.
PHE-KST-500L9025 Plate heat exchanger 500 lt/hour
The PHE-KST-500L9025 is a plate heat exchanger, completely made of stainless steel, top industry unit. Food industry fittings according to DIN 11851. This equipment is used for the cooling of beer wort with capacity : 500 liters of beer wort per one hour, cooling down from 90°C to 25°C or from 25°C to 6°C. Two pieces of this PHE (double PHE system) are able to cool wort from 90°C to 6°C.
WCASB-300 Compact cooler and aerator of wort 300 liters per hour
Compact cooler and aeration system for wort with performance 300 liters of wort per hour. The block system for precisse cooling and aeration of hot wort. This is a necessary equipment for preparation of wort after the hot wort brewing process and before start of the beer fermentation process. Two-stage tabular heat exchanger intended for cooling of the wort from 98 ° C to 7 ° C using 15 ° C and 1 ° C water before starting of beer fermentation process. The plate heat exchanger and the aeration candle are attached to a stainless steel panel which is equipped with temperature sensors and digital displays.
WCASB-500 Compact cooler and aerator of wort 500 liters per hour
Compact cooler and aeration system for wort with performance 500 liters of wort per hour. The block system for precisse cooling and aeration of hot wort. This is a necessary equipment for preparation of wort after the hot wort brewing process and before start of the beer fermentation process. Two-stage tabular heat exchanger intended for cooling of the wort from 98 ° C to 7 ° C using 15 ° C and 1 ° C water before starting of beer fermentation process. The plate heat exchanger and the aeration candle are attached to a stainless steel panel which is equipped with temperature sensors and digital displays.
PHE-GLP2-1500L902506 Double plate heat exchanger 1500 lt/hour
The PHE-GLP2-1500L902506 is a set of two pieces of plate heat exchangers for cooling of beer (both ALE and LAGER types) that is a necessary equipment for preparation of wort produced by brewhouse with one batch volume 1500 liters. This equipment is used for the cooling of beer wort in two steps : 1st heat exchanger : Cooling of 1500 lt/hour from 90°C to 25°C + 2nd heat exchanger : Cooling of 1500 lt/hour from 25°C to 6°C.
