Description
The UNI-BOTTLE-CAPPER (Electric version) is a robust professional electrical bottle capper. It is supplied with three interchangeable heads: 26 mm and 29 mm for crown caps, and one adjustable head suitable for plastic T-caps and anti-refill caps. The hourly production is approximately 250-300 bottles.
Made in the EU.
Key Features:
✔ Professional crown-capping machine for beer bottles / suitable also for capping wine bottles with the plastic T-caps or Press-fit not refillable caps.
✔ Ideal machine for craft breweries, homebrewers, wine makers and small-scale producers.
✔ Electrically operated.
✔ An external air compressor is not required.
✔ Up to 300 bottles per hour (accommodates all standard bottle sizes).
✔ Includes interchangeable heads for 26mm and 29mm crown caps—suitable for sealing bottles of beer, cider, wine or kombucha. For use with plastic T-caps or Press-fit not refillable caps the third special head is available.
✔ Durable, highly stable construction made of stainless steel and anodized aluminum.
✔ Compact, professional-design bottle capper, perfect for small-scale bottling operations.
✔ The two-hand control system guarantees maximum safety, while the shaft collar system allows quick and precise adjustments.
✔ Low consumption, sturdy construction, and compact dimensions make it ideal for bench use, without the need for fixings.
✔ High-quality engineering – the machine is made in Europe! No problem with spare parts.
✔ A life test of over 100,000 cycles guarantees its long-term durability.
Capping heads and compatible caps :
The UNI-BOTTLE-CAPPER is not suitable with the natural corks.
The UNI-BOTTLE-CAPPER is available in both electric and pneumatic versions, both reliable and easy to use. The electric model is suitable for small jobs, while the pneumatic model offers greater speed and durability.
Technical specifications :
| Dimensions | 280x280x630 mm (L x W x H) |
| Weight | 16.6 Kg |
| Maximum bottle diameter | 150 mm |
| Maximum bottle height | 380 mm |
| Replaceable heads | 26 mm crown cap / 29 mm crown cap / plastic mushroom caps / anti-refill caps |
| Capacity (1 hour) | about 300 bottles |
| Electric power supply | 1-phase 220-240V 50Hz |
Optional equipment :
| Product Code | Decription | Price |
| UBC-300-NIN | Nitrogen Injection Nozzle : The nozzle injects nitrogen into the headspace of the filled bottle immediately before capping. | € 220,- |
Nitrogen Injection Nozzle
The nozzle injects nitrogen into the headspace of the filled bottle immediately before capping.
Why to use the Nitrogen Injection Nozzle ?
- This nozzle allows bottles to be flushed with nitrogen immediately before capping, reducing oxygen in the bottle headspace.
- The short stainless steel tube delivers a precise jet of nitrogen into the top of the filled bottle, efficiently displacing the remaining oxygen just before the cap is applied.
- When used together with the vacuum filler, this nozzle completes a low-oxygen bottling process. The bottle is filled under vacuum, flushed with nitrogen and immediately sealed with the cap.
- An ideal solution for wines, juices and other non-carbonated oxygen-sensitive beverages, ensuring maximum protection against oxidation until the bottle is closed.
Designed for use only with the UNI-BOTTLE-CAPPER capping machines.

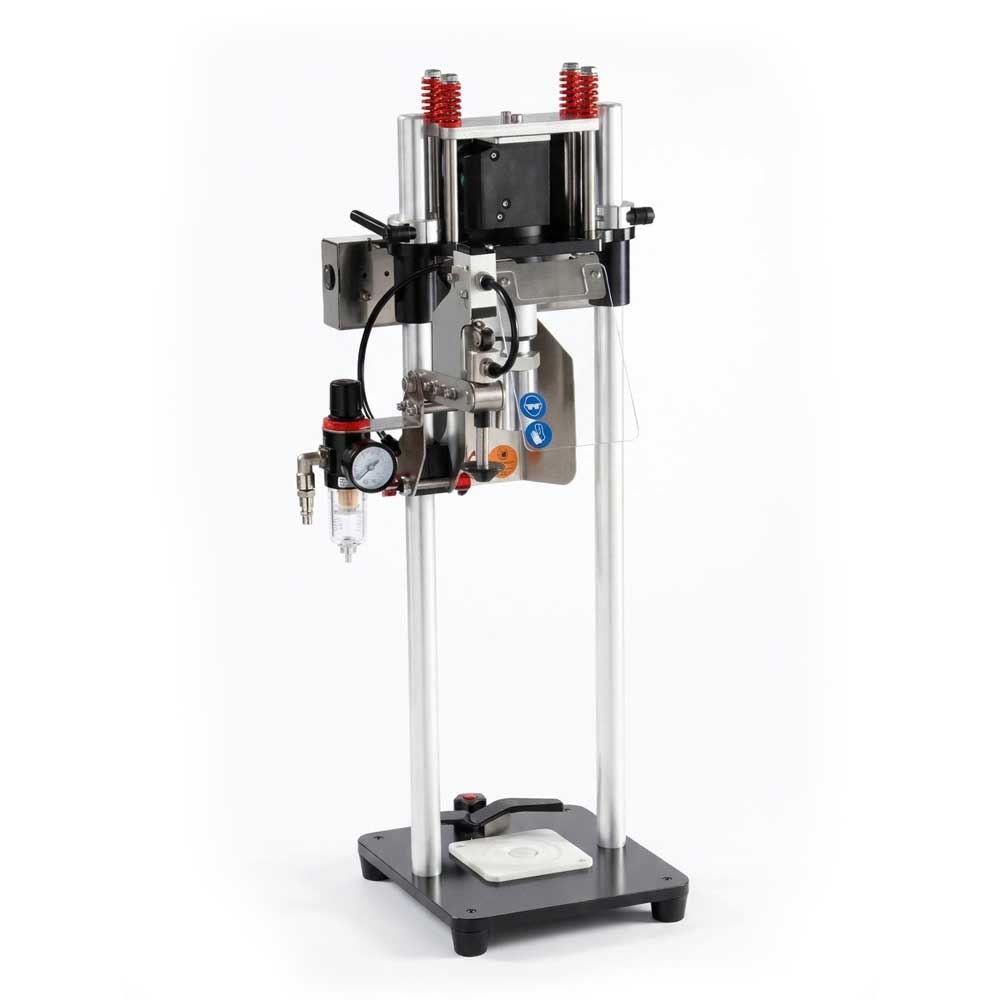

The UNI-BOTTLE-CAPPER (Electric version) with the installed Nitrogen Injection Nozzle :
