UF-GPB2S : Universal stainless steel counter pressure bottle filling valve for glass and PET bottles

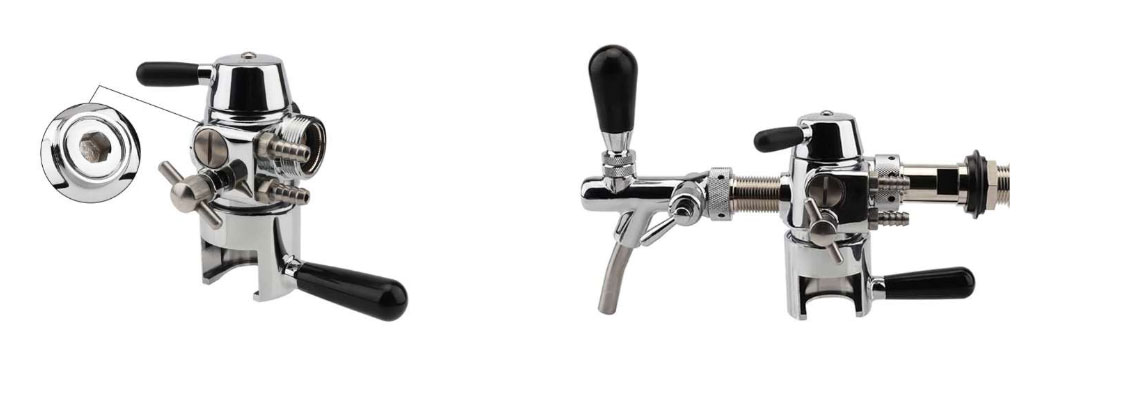

Counter-pressure stainless steel filler for glass and PET bottles. Universal filling system for fast, non-foaming bottling of beer and other carbonated beverages in a protective CO2 atmosphere.

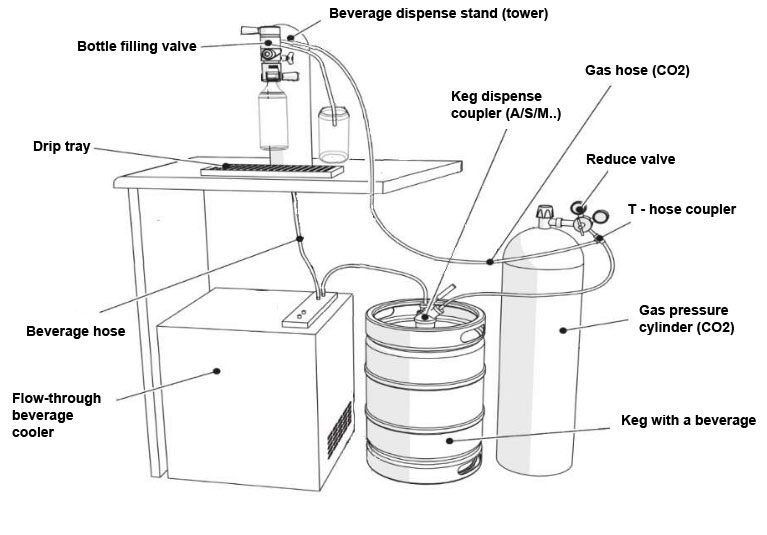

The delivery includes two heads for filling PET bottles and glass bottles of the NRW type. Simple connection to any tap stand using a standard 5/8″ thread.

Technical specifications:

• Material: stainless steel 1.4301 / AISI 304
• 2x filling head (1x for PET bottles, 1x for NRW type glass bottles)
• Connection to the tap stand: thread 5/8″ male / screw length 55mm
• Upper mandrel for hose with an inner diameter of 8mm (CO2 inlet)
• Lower mandrel for a hose with an inner diameter of 8mm (releasing CO2/overflow in case of overfilling of the bottle)
• Side regulation screw for draining air from the bottle and for filling the bottle (flow rate regulation)
• Upper lever with 3 positions: left (filling CO2 bottle), middle (closed) and right (filling bottle with beverage)
