PCLS-4 : PEGAS CraftPad Light 4+1 – the switcher for 4 kinds of beer

 305 excluding tax

The PEGAS CraftPad Light 4+1 is a simple switcher for expanding the usability all types of the PEGAS filling devices. This switcher allows to choose of up to four different kinds of beer for the filling in the bottles using only one filling device.
A construction of the CraftPad is designed to be built in a table, stainless steel box, wall or directly to a beverage dispense tower.

Description

Print Friendly, PDF & Email

The PEGAS CraftPad Light 4+1 is a simple switcher for expanding the usability all types of the PEGAS filling devices. This switcher allows to choose of up to four different kinds of beer for the filling in the bottles using only one filling device.
A construction of the CraftPad is designed to be built in a table, stainless steel box, wall or directly to a beverage dispense tower.

Pegas CraftPad Light panel


Compatible with any PEGAS filling valves or equipment :

PCPL pegas craft pad light 03 - PCLS-4 : PEGAS CraftPad Light 4+1 - the switcher for 4 kinds of beer - hfp, mbf

PBFM-01 PEGAS DRIVE Filling valve for PET-bottles

PBFM-01 PEGAS DRIVE - PET bottle filling valve

PBFM-02 PEGAS ECOJET Filling valve for PET-bottles

PBFM-01 Pegas Ecojet PET bottle filling valve

PBFM-03 PEGAS EVOLUTION Filling valve for PET-bottles and glasses

PBFM-03 Universal valve for filling beer into PET bottles and glasses

PGBFS-01 : PEGAS glass bottle filling set

Pegas glass bottle filling set

PBFT2 : PEGAS DRAGON – PET bottle filling tower

PEGAS DRAGON PET bottle filling tower

BFM-30 PEGAS CRAFTTAP 3 – Manual bottle filling system

BFM 30 manual bottle filler 600x600 150x150 - PCLS-4 : PEGAS CraftPad Light 4+1 - the switcher for 4 kinds of beer - hfp, mbf








Main benefits

  • The device expands the function of any Pegas device and allows the filling of up to 4 types of beer or other carbonated beverages using a single filling device.
  • The CraftPad light top control panel can be installed in both vertical and horizontal surfaces (table, wall, beverage dispense tower)
  • The device is suitable for any space and saves space.
  • Up to 4 types of beer are bottled in a way that does not allow mixing of different types of beer.
  • The device is easily sanitizable after each filling batch, it is possible to blow through the beverage paths with compressed sterile air after each cycle.
  • The system has negligible losses
  • Easy operation and switching between up to 4 types of drinks.

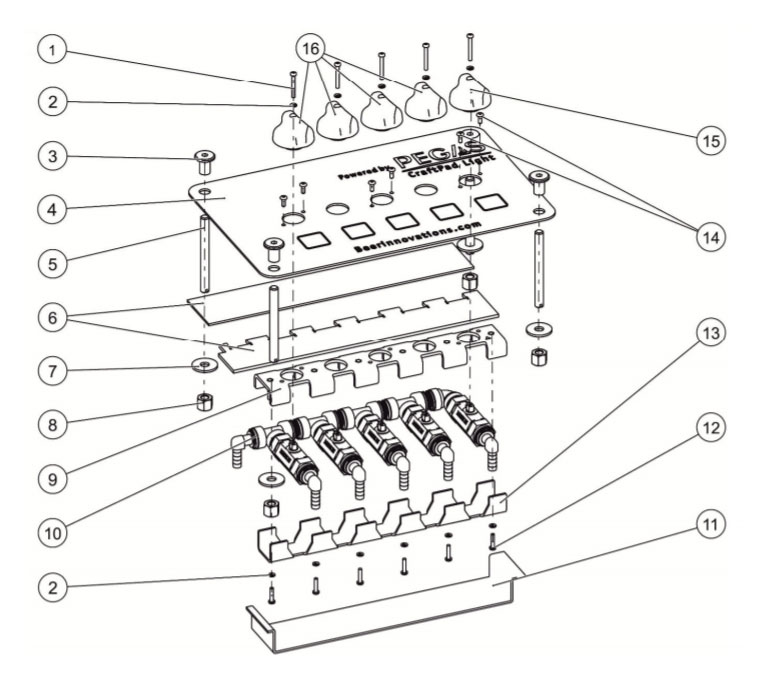

What parts the PEGAS CraftPad 4+1 Light consists of :

PCPL 4 pegas craft pad light 06 - PCLS-4 : PEGAS CraftPad Light 4+1 - the switcher for 4 kinds of beer - hfp, mbf

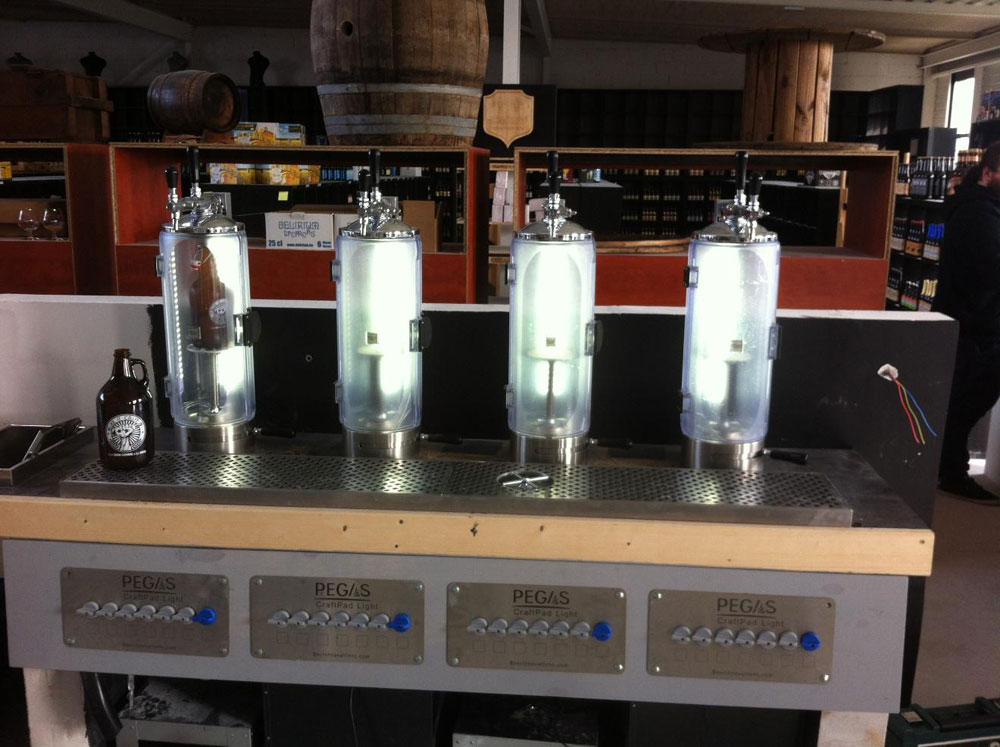

Example application :



Pegas CraftPad Light - example application

Additional information

Weight 0.9 kg
Dimensions 210 × 150 × 80 mm
