ACOS-01 : Saturation pipe-candle with the carbonation/oxygenation stone
ACOS-01 : Saturation pipe-candle with the carbonation/oxygenation stone
ACOS-01 : Saturation pipe-candle with the carbonation/oxygenation stone

ACOS-01 : Saturation pipe-candle with the carbonation/oxygenation stone

€ 455 – € 1061 excluding tax

Saturation pipe-candle is designed for a saturation of the wort, beer, wine or cider with sterilized compressed oxygen, carbon dioxide, nitrogen or other gas. The saturation of beverage is usually carried out before or during the fermentation or maturation process. The porous stone is built into the pipe, the nozzle is connected to the source of the pressurized gas.

Clear selection
SKU: ACOS-01 Categories: , , , , Tags: , , , , , ,

Description

Print Friendly, PDF & Email

Saturation pipe-candle is designed for a saturation of the wort, beer, wine or cider with sterilized compressed oxygen, carbon dioxide, nitrogen or other gas. The saturation of beverage is usually carried out before or during the fermentation or maturation process. The porous stone is built into the pipe, the nozzle is connected to the source of the pressurized gas.



Parameters of the carbonation/oxygenation stone :
Material Sintered stainless steel carbide
Pore size < 15 µm (maximally)
Pore density 2x 104 pores / 1 cm2

ACOS-01 : Saturation pipe-candle with the carbonization or oxygenation stone

Saturation pipe-candle with the carbonization or oxygenation stone

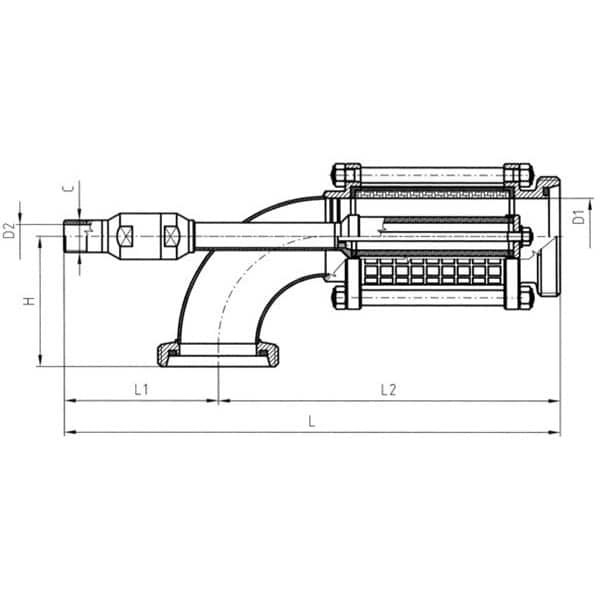

wort-aerator-004



  • Material – body and pipes : Stainless steel AISI 304
  • Material – stone : Sintered stainless steel stone AISI 304

Dimensions

TypeDNCD2D1HLL1L2
acos01dr25acos01ss25acos01cs2525G1/4"9256525585170
acos01dr32acos01ss32acos01cs3232G1/4"9328726590175
acos01dr40acos01ss40acos01cs4040G1/4"9388728090190
acos01dr50acos01ss50acos01cs5050G1/2"154990320100220
acos01dr65acos01ss65acos01cs6565G1/2"156697343110233
acos01dr80acos01ss80acos01cs8080G1/2"1581109392114278





Recommended accessories to be ordered with the saturation candle

(For version with the DIN32676 TriClamp connections)



The gasket and the clamp for TriClamp connection system DIN 32676

TEA-TC-CL50 : Clamp for TriClamp connection system DIN 32676 / D=50.5mmPF GATCDN10E - ACOS-01 : Saturation pipe-candle with the carbonation/oxygenation stone - csc, tea, oce, oxe, coe







Additional information

Weight 10 kg
Dimensions 400 × 150 × 100 mm
size

1" DN25, 1 1/4" DN32, 1 1/2" DN40, 2" DN50, 2 1/2" DN65, 3" DN80
connection

DIN11851 (Dairy coupling), DIN32676 (TriClamp)
