The simplifiest solution to manual filling carbonated beverages (beer, cider) into glass bottles, PET bottles, beer glasses directly from a beverage dispense tower, uning only one universal dispense tap.
The PEGAS glass bottle filling set includes :
I. PET filling valve of type (three types are available):

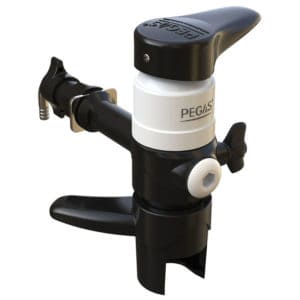

PBFM-01 PEGAS DRIVE Filling valve for PET-bottles

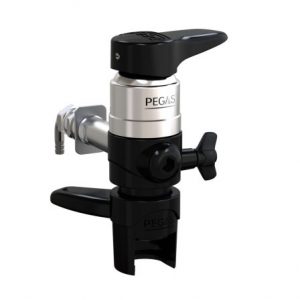

PBFM-02 PEGAS ECOJET Filling valve for PET-bottles

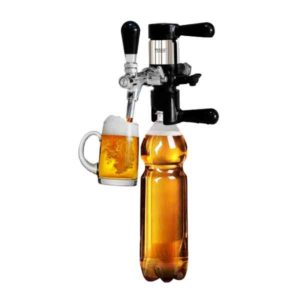

PBFM-03 PEGAS EVOLUTION Filling valve for PET-bottles and glasses
II. PEGAS BEERCASE adapter
An adapter to filling beer into glass bottles for all types of the PEGAS filling valves. Protective case serves for adaptation of the glass bottle neck to the standard for PET bottle neck.
PBFT2 : PEGAS DRAGON – PET bottle filling tower
PEGAS Dragon is a professional top-quality beer tower designed specially for the installation of the PEGAS bottle filling valves.
CRW-P1 Manual capping machine for bottles
Semiautomatic, pneumatic machine for crowning of bottles by steel or plastic cap plugs.
• Pneumatic machine to closing of bottles by crown caps with effortless operation
• Cap hundreds of bottles per hour
• Includes quick release pneumatic fittings
• Hinged safety shield for ease of use
• Twin levers prevent operator injury
• A massive steel body of the machine
This heavy duty commercial pneumatic capping machine is ideal when you have an air supply and a need to close a lot of bottles of the same height. The machine is able to close bottles from 5½” to 16″ in height, and features two capping heads, one for the American standard 26mm crimp beer bottle cap, and the other for the European 29-31mm crimp bottle cap (which fits many kinds of European beer bottles). The 29-31mm cap may also to be used for inserting plastic champagne corks into wine bottles. It fits bottles with diameter from 1¾” to 6″ . A unique hinged safety shield is easier to use than other models with fixed safety shields.
This machine is featured with dual air valves, so both black air valve levers must be always pressed at once to be activated caping of the bottle (which prevents an operators hand from getting crushed by the capping head). An adjustable bottom bracket makes it easy to set up your chosen bottle size so your bottles will be always properly under the capping head, saving a lot of time when you have a lot of bottles to closing.
Requires 4-5 bar of air pressure (max 125psi) . Includes a quick disconnect air fitting that will screw onto a male 1/4″ NPT air inlet for attaching your pressure air hose.
Production capacity : from 500 up to 600 bph (depends on operator’s ability).

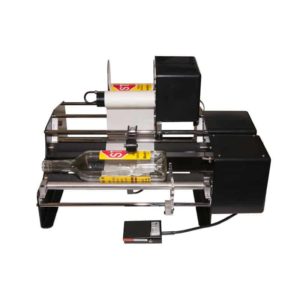

BLM-BM1202 Two-side semiautomatic bottle labelling machine
The BLM-BM12012 Label Applicator enables the user to label all kinds of cylindrical bottles by simply inserting the bottle and pressing a foot switch. Once the foot switch is activated the label is applied within five second, most bottles are labeled in less than 2 seconds! This allows the user to quickly remove the bottle and insert another to start the procedure again. Once a rhythm is established bottles are labeling very quickly. Therefore this bottle labeller can label bottles at speeds up to 1200 pieces an hour!
The version includes two positions for rollers with paper labels. The machine is able to apply two labels on bottle wihin one cycle.
Optional accessories :
Rewinder of the waste paper
This option part automatically rewinds the waste paper that is produced after labeling your product. Without this option part the waste paper is simply fallen over the back of the machine into a waste bin.
This labeling option allows you to just insert your bottle and start of the labeling cycle is automatically activated. Foot switch is still included, but not needed to operation!
