Compact water or glycol coolers units with integrated condenser for cooling of tanks.
FTTM-B38 Flow-through thermometer 3/8 inch
FTTM-B38 is an in-line flow-through thermometer that fits to water and wort temperature indication during the wort cooling process. This thermometer is equipped with two hose connectors (for hoses with inner diameter 3/8inch / 9.5mm).
CLC-1P1200: Compact liquid chiller-heater 1.2 kW with one pump
The CLC-1P1200 GreenLine V is the compact water or glycol cooler with integrated condenser. This cooling unit is designed to cool, with the accumulation of ice or water heating. It can be used for cooling beer, ciders, freeze-drying wines or heating mash. Cooling power is 1200 W (5/8 HP).
CLC-4P2300 Compact liquid cooler 2.3 kW with four pumps
The CLC-4P2300 GreenLine is the compact water or glycol cooler with integrated condenser. This cooling unit is designed to independent cooling up to four beverage tanks. It can be used for cooling beer, ciders, freeze-drying wines or heating mash. Cooling power is 2300 W.
CWC-MC05 : Compact water chiller QUANTOR MULTICHILLY 0.5 kW (Tmin -6°C) with 1 up to 4 pumps
The Quantor MultiChilly compact water cooler is an ideal solution for the smallest breweries, wineries, cider producers looking to chill 1 to 4 fermenters at once using only one chiller. Model CWC-MC05 with the cooling capacity 0.5 kW / 0.67 HP allows the cooling of one up to four tanks using one up to four temperature control kits. This cooler has enough capacity for the cooling up to 500 liters of beer, cider or wine in the primary fermentation phase or up to 1500 liters of beverages in the secondary fermentation phase.
CWC-MC05-US : Compact water chiller QUANTOR MULTICHILLY 0.5 kW (Tmin -6°C) with 1 up to 4 pumps (US version)
The Quantor MultiChilly compact water cooler is an ideal solution for the smallest breweries, wineries, cider producers looking to chill 1 to 4 fermenters at once using only one chiller. Model CWC-MC05 with the cooling capacity 0.5 kW / 0.67 HP allows the cooling of one up to four tanks using one up to four temperature control kits. This cooler has enough capacity for the cooling up to 500 liters of beer, cider or wine in the primary fermentation phase or up to 1500 liters of beverages in the secondary fermentation phase.
CWC-MC09 : Compact water chiller QUANTOR MULTICHILLY 0.9 kW (Tmin -6°C) with 1 up to 4 pumps
The Quantor MultiChilly compact water cooler is an ideal solution for the smallest breweries, wineries, cider producers looking to chill 1 to 4 fermenters at once using only one chiller. Model CWC-MC09 with the cooling capacity 0.9 kW / 1.21 HP allows the cooling of one up to four tanks using one up to four temperature control kits. This cooler has enough capacity for the cooling up to 1000 liters of beer, cider or wine in the primary fermentation phase or up to 3000 liters of beverages in the secondary fermentation phase.
CWC-MC09-US : Compact water chiller QUANTOR MULTICHILLY 0.9 kW (Tmin -6°C) with 1 up to 4 pumps (US version)
The Quantor MultiChilly compact water cooler is an ideal solution for the smallest breweries, wineries, cider producers looking to chill 1 to 4 fermenters at once using only one chiller. Model CWC-MC09 with the cooling capacity 0.9 kW / 1.21 HP allows the cooling of one up to four tanks using one up to four temperature control kits. This cooler has enough capacity for the cooling up to 1000 liters of beer, cider or wine in the primary fermentation phase or up to 3000 liters of beverages in the secondary fermentation phase.
CWC-MC17 : Compact water chiller QUANTOR MULTICHILLY 1.7 kW (Tmin -6°C) with 1 up to 4 pumps
The Quantor MultiChilly compact water cooler is an ideal solution for the smallest breweries, wineries, cider producers looking to chill 1 to 4 fermenters at once using only one chiller. Model CWC-MC17 with the cooling capacity 1.7 kW / 2.28 HP allows the cooling of one up to four tanks using one up to four temperature control kits. This cooler has enough capacity for the cooling up to 2000 liters of beer, cider or wine in the primary fermentation phase or up to 6000 liters of beverages in the secondary fermentation phase.
CWC-MC17-US : Compact water chiller QUANTOR MULTICHILLY 1.7 kW (Tmin -6°C) with 1 up to 4 pumps (US version)
The Quantor MultiChilly compact water cooler is an ideal solution for the smallest breweries, wineries, cider producers looking to chill 1 to 4 fermenters at once using only one chiller. Model CWC-MC17 with the cooling capacity 1.7 kW / 2.28 HP allows the cooling of one up to four tanks using one up to four temperature control kits. This cooler has enough capacity for the cooling up to 2000 liters of beer, cider or wine in the primary fermentation phase or up to 6000 liters of beverages in the secondary fermentation phase.
STCK-1T : Single tank temperature control kit for QUANTOR MULTICHILLY water coolers
The temperature control kit is a complete set for the cooling and temperature control of one tank (fermentor) intended for use with the QUANTOR MULTICHILLY compact water chillers.
The Compact water chiller QUANTOR MULTICHILLY allows to use from one to four the control kits (one for each tank or a cooling zone).

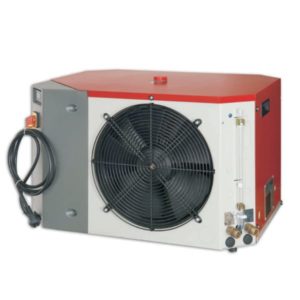

CWC-C25 Compact water chiller 2.4 kW (Tmin +10°C)
The CWC-C25 is the compact water cooler with integrated condenser and cooling capacity 2.4 kW. The ‘plug-and-play’ unit CWC-C25 has a compact design. It is space-saving and easy to assemble. The cooler is equipped with a hermetic motor compressor and a cooling water circuit containing water tank and centrifugal pump. Suitable for cooling tanks with output / input cooling media fittings 2x ½” AG (male) . Designed in Germany.
CWC-C35 Compact water chiller 3.5 kW (Tmin +10°C)
The CWC-C35 is the compact water cooler with integrated condenser and cooling capacity 3.5 kW. The ‘plug-and-play’ unit CWC-C35 has a compact design. It is space-saving and easy to assemble. The cooler is equipped with a hermetic motor compressor and a cooling water circuit containing water tank and centrifugal pump. Suitable for cooling tanks with output / input cooling media fittings 2x ½” AG (male) . Designed in Germany.
CWC-C350 Compact water chiller 3.5 kW (Tmin +10°C)
The CWC-C350 is the compact water cooler with integrated condenser and cooling capacity 3.5 kW. The ‘plug-and-play’ unit CWC-C350 has a compact design. It is space-saving and easy to assemble. The cooler is equipped with a hermetic motor compressor and a cooling water circuit containing water tank and centrifugal pump. Suitable for cooling tanks with output / input cooling media fittings 2x ½” AG (male) . Designed in Germany.
CWC-C45 Compact water chiller 4.5 kW (Tmin +10°C)
The CWC-C45 is the compact water cooler with integrated condenser and cooling capacity 4.5 kW. The ‘plug-and-play’ unit CWC-C45 has a compact design. It is space-saving and easy to assemble. The cooler is equipped with a hermetic motor compressor and a cooling water circuit containing water tank and centrifugal pump. Suitable for cooling tanks with output / input cooling media fittings 2x ½” AG (male) . Designed in Germany.
CWC-C450 Compact water chiller 4.5 kW (Tmin +10°C)
The CWC-C450 is the compact water cooler with integrated condenser and cooling capacity 4.5 kW. The ‘plug-and-play’ unit CWC-C450 has a compact design. It is space-saving and easy to assemble. The cooler is equipped with a hermetic motor compressor and a cooling water circuit containing water tank and centrifugal pump. Suitable for cooling tanks with output / input cooling media fittings 2x ½” AG (male) . Designed in Germany.
CWC-C25MLT Compact water chiller 2.2 kW (Tmin -10°C) Microchannel
The CWC-C25MLT is the compact water cooler with integrated condenser and cooling capacity from 0.8 kW (-10°C) to 2.2 kW (+15°C) with Micro-Channel technology. The micro-channel condenser allows the unit to operation on about 30% less cooling gas, it is more silent and even consumes less energy. The ‘plug-and-start’ unit CWC-C25MLT has a compact design. It is space-saving and easy to assemble. The cooler is equipped with a hermetic motor compressor and a cooling water circuit containing water tank and centrifugal pump. Suitable for cooling tanks with output / input cooling media fittings 2x ½” AG (male). Designed in Germany.
CWC-C35MLT Compact water chiller 3.1 kW (Tmin -10°C) Microchannel
The CWC-C35MLT is the compact water cooler with integrated condenser and cooling capacity from 1.1 kW (-10°C) to 3.1 kW (+15°C) with Micro-Channel technology. The micro-channel condenser allows the unit to operation on about 30% less cooling gas, it is more silent and even consumes less energy. The ‘plug-and-start’ unit CWC-C35MLT has a compact design. It is space-saving and easy to assemble. The cooler is equipped with a hermetic motor compressor and a cooling water circuit containing water tank and centrifugal pump. Suitable for cooling tanks with output / input cooling media fittings 2x ½” AG (male). Designed in Germany.
CWC-C350MLT Compact water chiller 3.1 kW (Tmin -10°C) Microchannel
The CWC-C350MLT is the compact water cooler with integrated condenser and cooling capacity 3.1 kW. The ‘plug-and-play’ unit CWC-C350MLT has a compact design. It is space-saving and easy to assemble. The cooler is equipped with a hermetic motor compressor and a cooling water circuit containing water tank and centrifugal pump. Suitable for cooling tanks with output / input cooling media fittings 2x ½” AG (male) . Designed in Germany.
Low temperature version (with Low Temperature Option): cooling medium temperature from -10 °C to + 15°C. The MLT-models are equipped with an additional plate heat-exchanger that ensures optimal heat-transfer. It is required to add Glycol to the cooling water by outlet temperatures below +8°C
CWC-C450MLT Compact water chiller 4.2 kW (Tmin -10°C) Microchannel
The CWC-C450MLT is the compact water cooler with integrated condenser and cooling capacity 4.2 kW. The ‘plug-and-play’ unit CWC-C450MLT has a compact design. It is space-saving and easy to assemble. The cooler is equipped with a hermetic motor compressor and a cooling water circuit containing water tank and centrifugal pump. Suitable for cooling tanks with output / input cooling media fittings 2x ½” AG (male) . Designed in Germany.
Low temperature version (with Low Temperature Option): cooling medium temperature from -10 °C to + 15°C. The MLT-models are equipped with an additional plate heat-exchanger that ensures optimal heat-transfer. It is required to add Glycol to the cooling water by outlet temperatures below +8°C.
CWC-C45MLT Compact water chiller 4.2 kW (Tmin -10°C) Microchannel
The CWC-C45MLT is the compact water cooler with integrated condenser and cooling capacity from 1.6 kW (-10°C) to 4.2 kW (+15°C) with Micro-Channel technology. The micro-channel condenser allows the unit to operation on about 30% less cooling gas, it is more silent and even consumes less energy. The ‘plug-and-start’ unit CWC-C45MLT has a compact design. It is space-saving and easy to assemble. The cooler is equipped with a hermetic motor compressor and a cooling water circuit containing water tank and centrifugal pump. Suitable for cooling tanks with output / input cooling media fittings 2x ½” AG (male). Designed in Germany.
