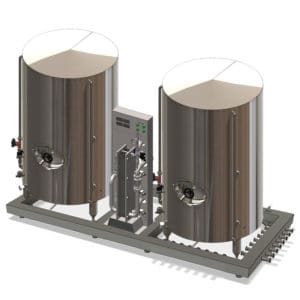

Compact wort cooling and aeration units with both water tanks

Compact wort cooling and aeration units

Compact wort cooling and aeration units are designed for the MODULO brewery system. But the units are usable in all breweries as a fully equipped compact system.

Compact wort cooling and aeration units include :

– Plate heat cooler to the cooling the wort
– Porous stone in the pipe to the aeration the wort
– Tank for cooling and storage of cold water
– Tank for heating and storage of hot water
– Compact cooler (only if it is selected)
– Fully equipped pipe and wire system with all valves, fittings, thermosensors
– Temperature control system
– Stainless steel frame with wheels or adjustable feet

WCUHWT-200 Compact wort cooling & aeration unit with cold & hot water tanks 2×200 L
WCUHWT-200 Compact wort cooling & aeration unit with cold & hot water tanks 2×200 L
WCUHWT-200 Compact wort cooling & aeration unit with cold & hot water tanks 2×200 L

Special CMM module (The compact system wort cooling and the water management) which integrates the unit for cooling of the wort consists of heat exchanger, cold water tank 200 liters and independent water cooler for cooling of the wort , stone for aeration of the wort and the hot water tank 200 liters on a shared frame with the adjustable feet. Hot water that we receive from cooling of the wort in the first stage of cooling (in the plate heat exchanger integrated in the brewhouse) is collected in a stainless steel insulated tank and is ready for use. Most often brewers use the hot water for preparing the next batch of brewing, but also when washing and sanitizing other equipment in microbrewery. This recuperation of waste heat from wort cooling contributes to substantial savings in production costs.

not rated  19 718 21 158 excluding tax Add to Cart
WCUHWT-400 Compact wort cooling & aeration unit with cold & hot water tanks 2×400 L
WCUHWT-400 Compact wort cooling & aeration unit with cold & hot water tanks 2×400 L
WCUHWT-400 Compact wort cooling & aeration unit with cold & hot water tanks 2×400 L

Special CMM module (The compact system wort cooling and the water management) which integrates the unit for cooling of the wort consists of heat exchanger, cold water tank 400 liters and independent water cooler for cooling of the wort , stone for aeration of the wort and the hot water tank 400 liters on a shared frame with the adjustable feet. Hot water that we receive from cooling of the wort in the first stage of cooling (in the plate heat exchanger integrated in the brewhouse) is collected in a stainless steel insulated tank and is ready for use. Most often brewers use the hot water for preparing the next batch of brewing, but also when washing and sanitizing other equipment in microbrewery. This recuperation of waste heat from wort cooling contributes to substantial savings in production costs.

not rated  20 724 23 714 excluding tax Add to Cart
WCUHWT-600 Compact wort cooling & aeration unit with cold & hot water tanks 2×600 L
WCUHWT-600 Compact wort cooling & aeration unit with cold & hot water tanks 2×600 L
WCUHWT-600 Compact wort cooling & aeration unit with cold & hot water tanks 2×600 L

Special CMM module (The compact system wort cooling and the water management) which integrates the unit for cooling of the wort consists of heat exchanger, cold water tank 600 liters and independent water cooler for cooling of the wort , stone for aeration of the wort and the hot water tank 600 liters on a shared frame with the adjustable feet. Hot water that we receive from cooling of the wort in the first stage of cooling (in the plate heat exchanger integrated in the brewhouse) is collected in a stainless steel insulated tank and is ready for use. Most often brewers use the hot water for preparing the next batch of brewing, but also when washing and sanitizing other equipment in microbrewery. This recuperation of waste heat from wort cooling contributes to substantial savings in production costs.

not rated  21 642 25 010 excluding tax Add to Cart
WCUHWT-300 Compact wort cooling & aeration unit with cold & hot water tanks 2×300 L
WCUHWT-300 Compact wort cooling & aeration unit with cold & hot water tanks 2×300 L
WCUHWT-300 Compact wort cooling & aeration unit with cold & hot water tanks 2×300 L

Special module, which integrates the unit for cooling of the wort consists of heat exchanger, ice water tank 300 liters and independent water cooler for cooling of the wort , stone for aeration of the wort and the hot water tank 300 liters on a shared frame with the wheels and adjustable legs. Hot water that we receive from cooling of the wort in the first stage of cooling (in the plate heat exchanger integrated in the brewhouse) is collected in a stainless steel insulated tank and is ready for use. Most often brewers use the hot water for preparing the next batch of brewing, but also when washing and sanitizing other equipment in microbrewery. This recuperation of waste heat from wort cooling contributes to substantial savings in production costs.

not rated  22 666 excluding tax Add to Cart
WCUHWT-800 Compact wort cooling & aeration unit with cold & hot water tanks 2×800 L
WCUHWT-800 Compact wort cooling & aeration unit with cold & hot water tanks 2×800 L
WCUHWT-800 Compact wort cooling & aeration unit with cold & hot water tanks 2×800 L

Special CMM module (The compact system wort cooling and the water management) which integrates the unit for cooling of the wort consists of heat exchanger, cold water tank 800 liters and independent water cooler for cooling of the wort , stone for aeration of the wort and the hot water tank 800 liters on a shared frame with the adjustable feet. Hot water that we receive from cooling of the wort in the first stage of cooling (in the plate heat exchanger integrated in the brewhouse) is collected in a stainless steel insulated tank and is ready for use. Most often brewers use the hot water for preparing the next batch of brewing, but also when washing and sanitizing other equipment in microbrewery. This recuperation of waste heat from wort cooling contributes to substantial savings in production costs.

not rated  23 285 26 653 excluding tax Add to Cart
WCUHWT-400A Compact wort cooling & aeration unit with cold & hot water tanks 2×400 L
WCUHWT-400A Compact wort cooling & aeration unit with cold & hot water tanks 2×400 L
WCUHWT-400A Compact wort cooling & aeration unit with cold & hot water tanks 2×400 L

Special module, which integrates the unit for cooling of the wort consists of the plate heat exchanger for cooling of the wort with integrated porous stone in the pipe for the aeration of the wort , ice water tank 400 liters (ITWT) and the hot water tank 400 liters (HWT) on a shared frame with the wheels or adjustable legs. Ice water is pre-chilled by an external water chiller in the primary tank (ITWT). Ice water is intended to cooling of wort in the heat plate exchanger and also for accurate mixing with hot water before the wort preparation process. Then the water is heated and stored as hot water in the second tank (HWT) and is ready for next use. The hot water tank is equipped also its own electric heating system for pre-heating of water. Hot water is needed in the wort brew process and for cleaning and sanitizing of the all brewery equipment. Most often brewers use the hot water for preparing the next batch of brewing, but also when washing and sanitizing other equipment in microbrewery. This recuperation of waste heat from wort cooling contributes to substantial savings in beer production costs.

Compatible with wort brew machines Breworx Modulo Classic 250A and Breworx Modulo Lite-ME 250A – only versions with the electric-oil heating system and the automatic control system.

not rated  23 611 excluding tax Add to Cart
WCUHWT-600A Compact wort cooling & aeration unit with cold & hot water tanks 2×600 L
WCUHWT-600A Compact wort cooling & aeration unit with cold & hot water tanks 2×600 L
WCUHWT-600A Compact wort cooling & aeration unit with cold & hot water tanks 2×600 L

Special module, which integrates the unit for cooling of the wort consists of the plate heat exchanger for cooling of the wort with integrated porous stone in the pipe for the aeration of the wort , ice water tank 600 liters (ITWT) and the hot water tank 600 liters (HWT) on a shared frame with the wheels or adjustable legs. Ice water is pre-chilled by an external water chiller in the primary tank (ITWT). Ice water is intended to cooling of wort in the heat plate exchanger and also for accurate mixing with hot water before the wort preparation process. Then the water is heated and stored as hot water in the second tank (HWT) and is ready for next use. The hot water tank is equipped also its own electric heating system for pre-heating of water. Hot water is needed in the wort brew process and for cleaning and sanitizing of the all brewery equipment. Most often brewers use the hot water for preparing the next batch of brewing, but also when washing and sanitizing other equipment in microbrewery. This recuperation of waste heat from wort cooling contributes to substantial savings in beer production costs.

Compatible with wort brew machines Breworx Modulo Classic 250A and Breworx Modulo Lite-ME 250A – only versions with the electric-oil heating system and the automatic control system.





.



not rated  23 787 excluding tax Add to Cart
WCUHWT-1000 Compact wort cooling and aeration unit with the cold and hot water tanks 2×1000 L
WCUHWT-1000 Compact wort cooling and aeration unit with the cold and hot water tanks 2×1000 L
WCUHWT-1000 Compact wort cooling and aeration unit with the cold and hot water tanks 2×1000 L

Special CMM module (The compact system wort cooling and the water management) which integrates the unit for cooling of the wort consists of heat exchanger, cold water tank 1000 liters and independent water cooler for cooling of the wort , stone for aeration of the wort and the hot water tank 1000 liters on a shared frame with the adjustable feet. Hot water that we receive from cooling of the wort in the first stage of cooling (in the plate heat exchanger integrated in the brewhouse) is collected in a stainless steel insulated tank and is ready for use. Most often brewers use the hot water for preparing the next batch of brewing, but also when washing and sanitizing other equipment in microbrewery. This recuperation of waste heat from wort cooling contributes to substantial savings in production costs.

not rated  25 567 29 217 excluding tax Add to Cart
WCUHWT-1200 Compact wort cooling & aeration unit with cold & hot water tanks 2×1200 L
WCUHWT-1200 Compact wort cooling & aeration unit with cold & hot water tanks 2×1200 L
WCUHWT-1200 Compact wort cooling & aeration unit with cold & hot water tanks 2×1200 L

Special CMM module (The compact system wort cooling and the water management) which integrates the unit for cooling of the wort consists of heat exchanger, cold water tank 1200 liters and independent water cooler for cooling of the wort , stone for aeration of the wort and the hot water tank 1200 liters on a shared frame with the adjustable feet. Hot water that we receive from cooling of the wort in the first stage of cooling (in the plate heat exchanger integrated in the brewhouse) is collected in a stainless steel insulated tank and is ready for use. Most often brewers use the hot water for preparing the next batch of brewing, but also when washing and sanitizing other equipment in microbrewery. This recuperation of waste heat from wort cooling contributes to substantial savings in production costs.



not rated  28 250 31 900 excluding tax Add to Cart
WCUHWT-1500 Compact wort cooling & aeration unit with cold & hot water tanks 2×1500 L
WCUHWT-1500 Compact wort cooling & aeration unit with cold & hot water tanks 2×1500 L
WCUHWT-1500 Compact wort cooling & aeration unit with cold & hot water tanks 2×1500 L

Special CMM module (The compact system wort cooling and the water management) which integrates the unit for cooling of the wort consists of heat exchanger, cold water tank 1500 liters and independent water cooler for cooling of the wort , stone for aeration of the wort and the hot water tank 1500 liters on a shared frame with the adjustable feet. Hot water that we receive from cooling of the wort in the first stage of cooling (in the plate heat exchanger integrated in the brewhouse) is collected in a stainless steel insulated tank and is ready for use. Most often brewers use the hot water for preparing the next batch of brewing, but also when washing and sanitizing other equipment in microbrewery. This recuperation of waste heat from wort cooling contributes to substantial savings in production costs.





not rated  30 128 34 934 excluding tax Add to Cart
WCUHWT-2000 Compact wort cooling & aeration unit with cold & hot water tanks 2×2000 L
WCUHWT-2000 Compact wort cooling & aeration unit with cold & hot water tanks 2×2000 L
WCUHWT-2000 Compact wort cooling & aeration unit with cold & hot water tanks 2×2000 L

Special CMM module (The compact system wort cooling and the water management) which integrates the unit for cooling of the wort consists of heat exchanger, cold water tank 2000 liters and independent water cooler for cooling of the wort , stone for aeration of the wort and the hot water tank 2000 liters on a shared frame with the adjustable feet. Hot water that we receive from cooling of the wort in the first stage of cooling (in the plate heat exchanger integrated in the brewhouse) is collected in a stainless steel insulated tank and is ready for use. Most often brewers use the hot water for preparing the next batch of brewing, but also when washing and sanitizing other equipment in microbrewery. This recuperation of waste heat from wort cooling contributes to substantial savings in production costs.


not rated  31 162 36 067 excluding tax Add to Cart
