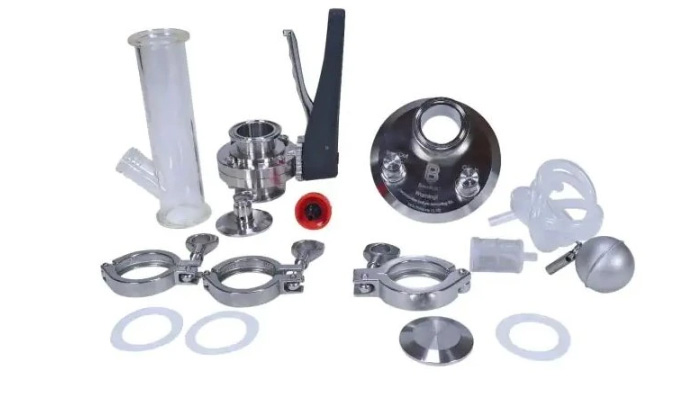

PSHB-TC100 : The TriClamp lid (TC 4″ DN100 D=119mm) with the BrewBuilt Pressurizing set (2x BallLock) and the HopBong

The pressurizing kit TriClamp TC DN100 119mm / 4″, with the TC DN40 50.5mm 1.5″ TriClamp port, the HopBong, the butterfly valve and two Ball-Lock connectors allows kegmentors to be used either as pressure fermenters for maturation and carbonation of beer, or to be used as kegs for transport and storage of finished beer, cider or other beverage, with Ball-Lock caps. The integrated HopBong allows you to add dry hops to your cold beer.

The pressure kit based on the BrewBuilt TriClamp hole plug comes with a micro pressure relief valve (which opens at 1.0 bar – its thread is compatible with Cornelius type pressure relief valves).

The set includes an 80 cm silicone immersion hose with a stainless steel float that keeps the mouth of the hose just below the surface. Thanks to this, beer will always be sucted from the upper 2.5 cm below the surface – only the cleanest beer without settled sludge will be pumped from the kegmenter.
This special version of the kegmenter pressurizing kit is equipped with the TC 50.5mm 1.5″ TriClamp port suitable for connection of other accessories (equipped with the HOP BONG in this set).

Technical parameters and components :

• TriClamp lid TC 4″ DN100 (Flange diameter of 119mm) for use with a TriClamp hole, Clamp and gasket.
• Additional TC 50.5mm 1.5″ DN40 TriClamp port equipped with the HopBong (allows you to add dry hops to your cold beer)
• After purchasing a kegmenter pressurization set, you can let ferment and mature your beer under pressure.
• Maximal working pressure 1.0 bar – possibility of carbonation and fermentation of beer in one container.
• Butterfly valve TC 50.5mm 1.5″ DN40

Recommended configuration for the pressure fermentation (the secondary fermentation / maturation / carbonation) :

FKRV-APM-01 : Adjustable pressure mechanism for the Fermzilla fermentors and fermentation stainless steel kegs

Designed to be used with all kegmenters or small fermenters :

UTK-29 : Stainless steel Unitank Kegmenter 29L – simple pressure fermenter 2.5bar (KL05906)

UTK-58 : Stainless steel Unitank Kegmenter 58L – simple pressure fermenter 2.5bar (KL04572)

UTK-118D : Stainless steel Unitank Kegmenter 118L with two TC ports – simple pressure fermenter 2.5bar (KL04541)

CCT-53BBX3 : Cylindrically-conical X3 Unitank Fermenter (pressure design, cooling jacket) BrewBuilt 53 liters | 1bar | AISI 304
