PBFM-03 : PEGAS NEO CLASSIC MAX – Filling valve for PET-bottles and beer glasses

PEGAS NEO CLASSIC MAX – the manual valve for filling beverages into PET bottles

The PEGAS NEO CLASSIC MAX is universal manual filling valve for the filling carbonated beverages into PET bottles. Its design allows the filling beer, cider, lemonades or other carbonated beverages into PET bottles directly in pubs because it is equipped with a screw to mounting the valve on a wall or on beverage dispensing towers.

The PEGAS NEO CLASSIC MAX can be used only as dedicated PET filling valve or it is can be expanded for classic dispensing tap cock intended to filling beverages into glasses.

Main benefits

• Improved pressure released valve
• Plastic body with reinforced construction
• Quick connections and start up
• Ready for connection of a traditional dispense tap
• Filling capacity: 45-120 l/hour (depends on the skills of the operator)
• Rear thread-pipe: 5/8″ (diameter 2.28mm) – compatible with the most beer dispense towers

The PEGAS NEO CLASSIC MAX consists of:

• Clamp handle – for firm fixation of PET bottle in required working position. Push the handle – the PET bottle is filled with inert gas. Pull the handle – the PET bottle is filled with a drink.
• Throttle with screw – used for fine control of inert gas pressure
• Body – Compared to previous models, the body is reinforced at the fastening point of the connection tube, so there is no rupture even during frequent use.
• Connector for a beer tap – after removing the stopper, you can easily connect a regular beer tap to the body and pour drinks directly into the glasses.
• Versatile PET bottle holder – the PEGAS is now compatible with almost all types of high and low neck PET bottles – BPF, PCO1810, PCO1881.
• Rear thread-pipe: 5/8″ (diameter 2.28mm) – compatible with the most beer dispense towers

As well as in the others PEGAS devices, dispensing beverages with the PEGAS NEO CLASSIC MAX is based on the counter pressure method, which ensures that drink will enjoy the same taste and carbonation level as the drink had when it is dispensed directly from fermentation tanks at a brewery.

Attention: The classic beer dispense tap is not part of the PEGAS NEO CLASSIC MAX valve. The photos on this page showing the PEGAS NEO CLASSIC MAX valve with mounted the beer dispense tap are illustrative only and show the main advantage of the PEGAS NEO CLASSIC MAX valve.

Connection scheme :

How the PEGAS NEO CLASSIC MAX works and how to install it ? See the video …

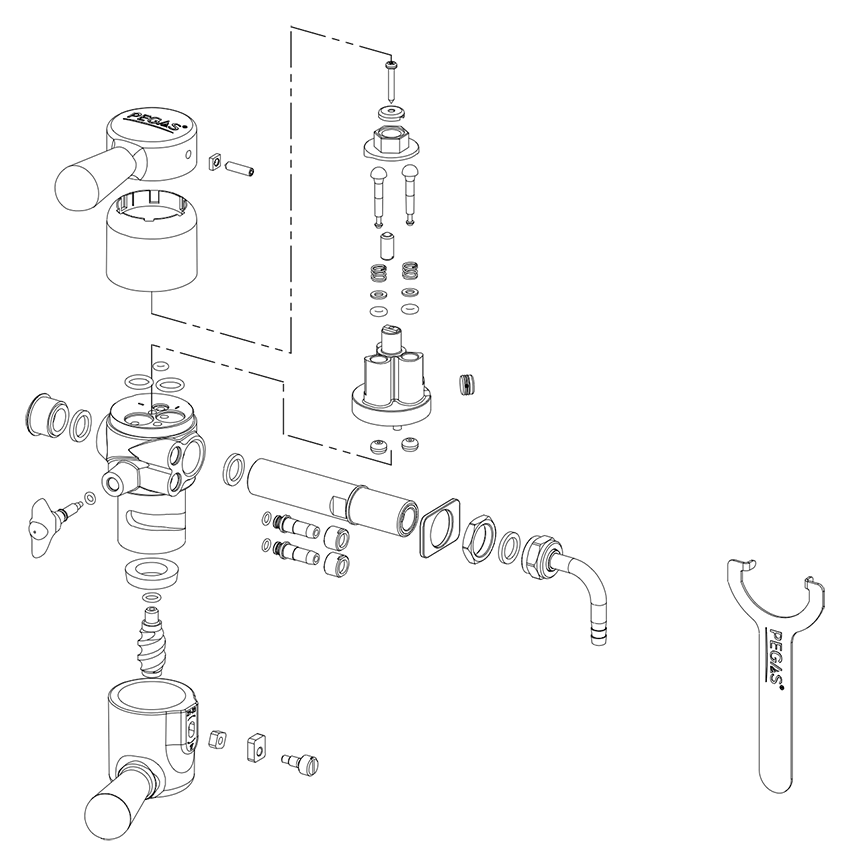

Spare parts :
