MTS-RV2-DN32DC Pressure adjusting apparatus type 6 with manometer and air-lock for fermentors DN32 DC is an extension equipment to the monitoring of current pressure and setting of required pressure in the tank. Also the fermentation lock is included in this part to visual monitoring of the fermenting process in the tank. Connection : Upper connection (to CS2 pipe) DIN 11851 Dairy Coupling DN 32 / NW 32. Adjustable pressure in the tank from 0bar to 3.0bar using the regulation screw with the spring.
MTS-RV2-DN25DC set includes :
A – Upper connection to the tank sanitizing pipe
B – Lower connection (sanitization) – input of sanitizing solution (usually from the CIP station)
C – Bottom connection (pressure gas) – input of pressure gas – a hose from a source of the pressure air or carbodioxide
D – Ball valve on the pressure gas pipe
E – Adjustable pressure valve with the screw and spring – to precisious adjusting of the required pressure in the tank
F – Fermentation water lock – the plastic cup to filling with water designed to visual monitoring of the fermenting process in the tank
G – Glycerine stainless steel manometer 0 – 4 bar

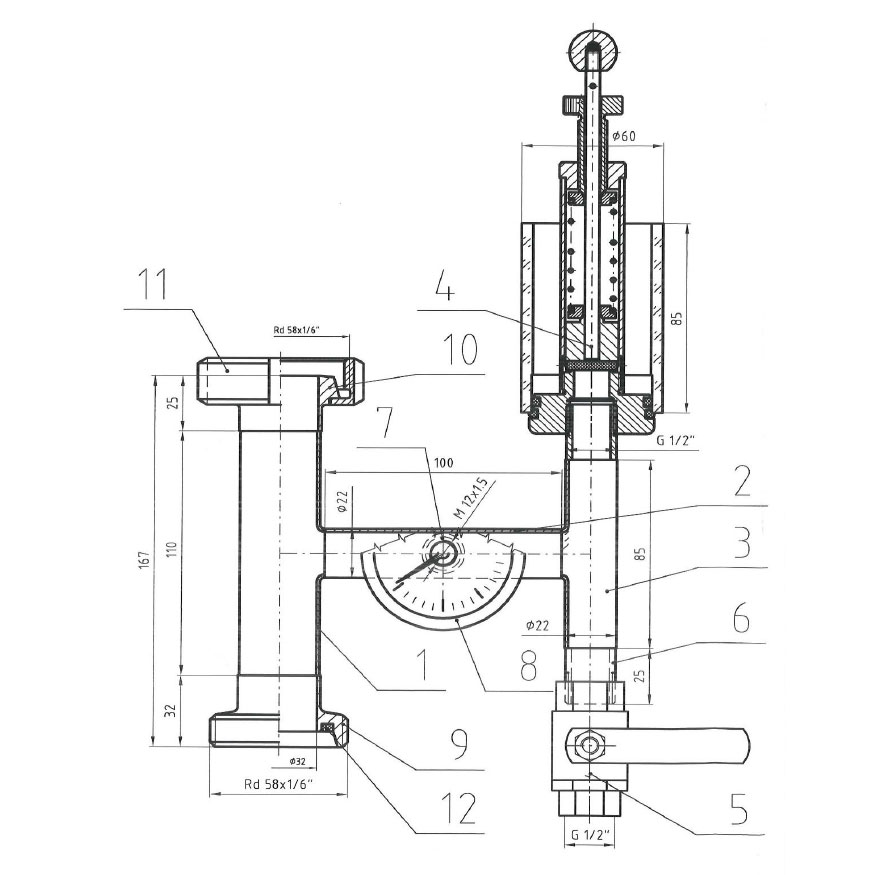

|A – to connection on the cleaning pipe of the tank||DIN 11851 “Dairy Coupling” DN 32 / NW 32 (nut)|
|B – to connection of hose from sanitation||DIN 11851 “Dairy Coupling” DN 32 / NW 32 (outer thread)|
|C – to connection of hose from source of pressure gas||G 1/2″ (inner thread)|
Position of the fitting on the CCT-M fermenter :
MTS-RV1-DN32DC is an optional accessory of the CCT-M cylindrical-conical tank system – position RV1 in the scheme of the tank.
