GFGC-6L : GF Glycol chiller 6L (to cooling up to 120 liters of beer in CF fermenters)

The GF Glycol chiller 6L is a simple semi-professional system to cooling up to four GF conical fermenters (Pro Edition 4×30 liters) or to cooling up to 23 litres of wort from 98°C to temperature of 4-6ºC.

More about the GF Conical Fermenter Pro Edition 30 liters

Control your fermentation temperature accurately, every time, everywhere.

Temperature control of fermenting wort is one of the most important prerequisites for producing a good quality beer. Wort temperature needs to be regulated and stable throughout the whole fermentation process to ensure the yeast doesn’t get stressed and ferments correctly to get youc beer with the right flavour profile.
With the ability to individually power and control the temperature of up to 4 Grainfather Conical Fermenters, each with their own fermenting schedules, the Grainfather Glycol Chiller is the perfect addition to ensure superior fermenting results.

With the use of the GF glycol chiller, your system is operating at the ultimate level and you are even able to use the cooler to make cool your wort down to 4-6ºC before start of the beer fermentation process. The Glycol Chiller connects to a hidden cooling jacket, located in between the two stainless steel walls of the CF conical fermenters. After dialling your desired temperature into the conical fermenter’s digital temperature control, the cooling liquid then travels through this double jacket, cooling the stainless steel, which in turn cools the beer in the fermenter. The cooling jacket never comes into contact with the beer, is completely concealed and does not need cleaning or sanitising – it is a true innovation for a fermenter of this scale.

Allows you to cool down up to 23 litres of wort to as low as 4-6ºC. Minimum temperature will vary based on external factors such as ambient room temperature, the number of fermenters connected and other environmental conditions.
It is designed to cooling up to 4 GF conical fermenters at different temperatures and fermenting schedules.

The package includes:

A : The GF Glycol chiller

B : Wall outlet power cord with plug

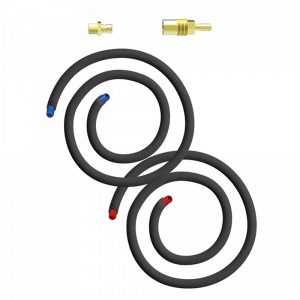

C : 2 pcs of the cooling connection couplers (for connection with one GF fermenter)

D : 2 pcs of the 2 m insulated hoses (for connection with one GF fermenter)

E : 1 pc of the glycol funnel

F : 1 pc of the silicon tube for priming pump

G : 3 liters of the propylene glycol

If you purchase more than one GF Conical Fermenter you will need to purchase one or more GF Cooling Connection Kit per each additional fermenter.

More about the  GF Cooling Connection Kit

Note: When you receive your cooling unit, you will need to fill it up with a propylene glycol mixture. Refer to the instructions provided with the glycol chiller for mixing, filling and pump priming information.
