FUIC-CHP1C-3x150CCT : Compact fermentation unit 3×150/180 liters, 0.5/1.5/3.0bar

The independent compact unit for the beer fermentation and maturation process with integrated cooling : FUIC 3×150 liters

with three 150 lt / 180 lt Cylindrical-conical tanks (CCT) with classic design, insulated, double-jacket, cooled by water/glycol, adjustable pressure from 0bar to 3bar

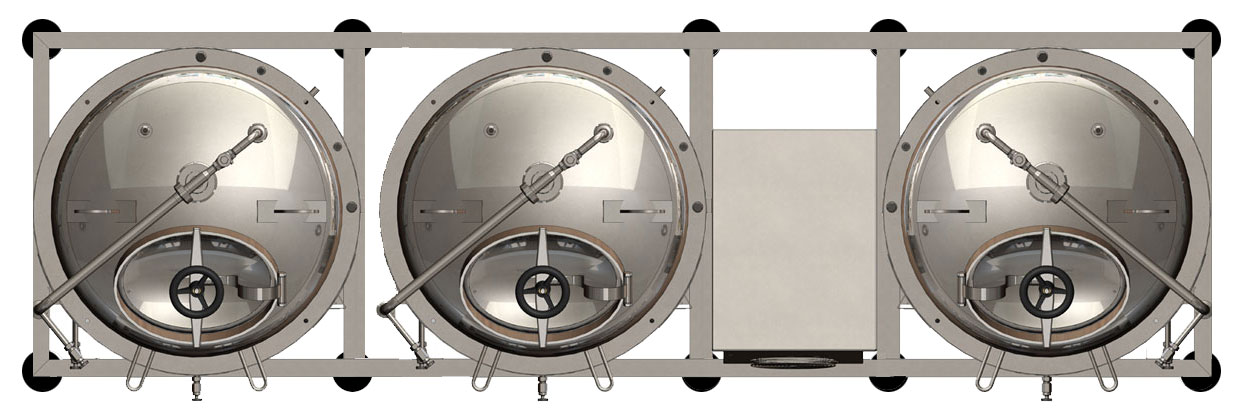

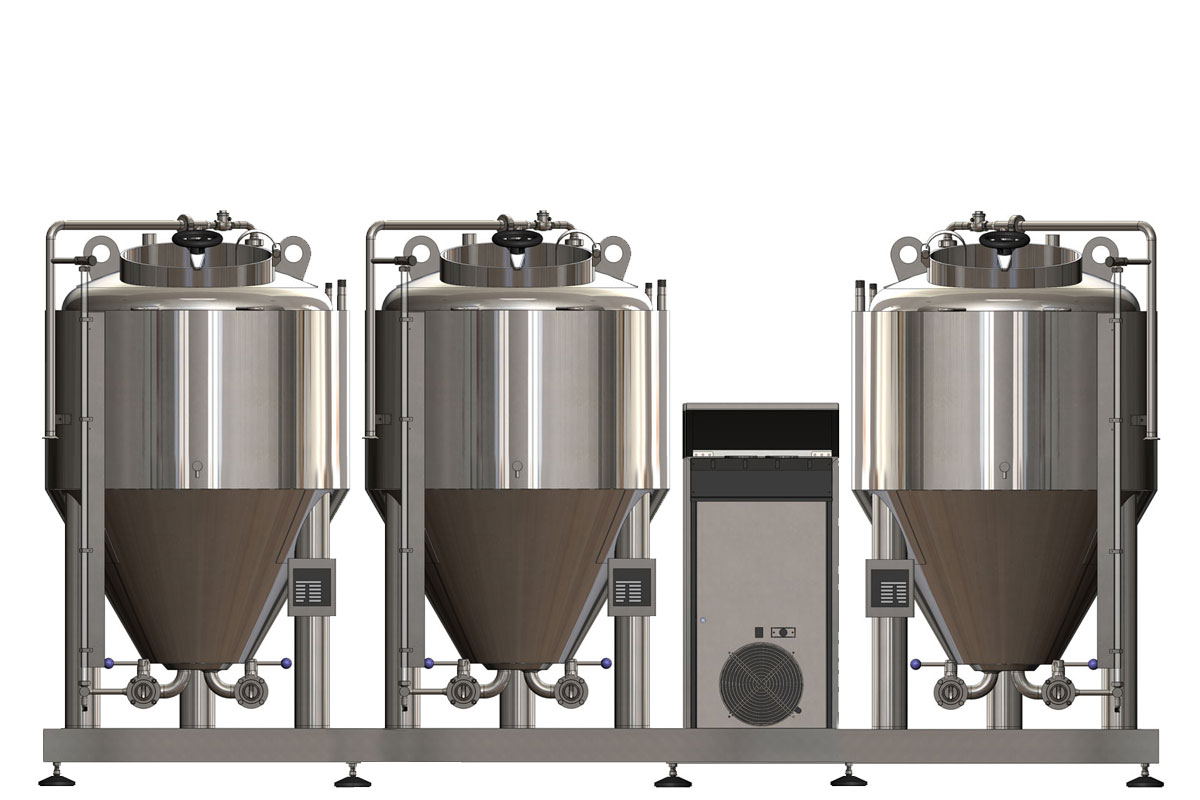

The compact unit for the beer fermentation and maturation process with integrated cooling BREWORX MODULO FUIC-CHP1C-3x150CCT is an independent mobile equipment with three cylindrical-conical tanks 150 liters (total capacity 3×180 liters) The FUIC unit includes everything what is necessary to the main fermentation of beer, to the beer maturation under pressure, to an isobaric filling beer into kegs or bottles or to serving beer into drink glasses directly from the fermenters that are included in this unit. The FUIC unit may be used also for the fermentation of other alcoholic beverages like sparkling wine, cider etc.

This type of the FUIC unit consists of these components :

• 3 pcs of CCT 150 liters (usable volume) / 180 liters (total volume) – Cylindroconical fermenters made of stainless steel that are insulated by PUR foam, cooled by water or glycol that circulated in cooling channels of double-jacket
• 1 pc of the compact water cooling unit with integrated condenser
• Elements for measurement and control of temperature and circulation of coolant
• Piping for cooling liquid – elements for connecting between coolers and tanks
• Supporting frame with adjustable legs or wheels with an aretation

Compact fermentation units BREWORX MODULO – This is a very universal compact equipment for fermentation and maturation of wort. During the fermentation and maturation of wort made in brewhouse the wort becomes the final drink – beer. Time parameters of the fermentation and maturation process depend on the type of beer, the set pressure in the cylindrical-conical tanks and the requirements of the brewer.

This equipment is also usable to production and tuning samples of new types of beer or wine in little volumes, without blocking main fermenters in the brewery or winery for this reason.

See the video presentation of the FUIC fermentation unit :

Technical description :

Notice :

All dimensions and weights are approximate – they are calculated according to the materials that were available at the time of market introduction. The manufacturer reserves the right to change dimensions and weights if they are not available the same materials and subcomponents upon production of a particular product, or if the customer has individual requirements. The customer receives a drawing of the product from the manufacturer. All important dimensions of the actual product will be shown in this drawing. The customer always confirms dimensions of the product before its production.

• ort , cider must) to the fermentation tank
• Stirring equipment – to stirring contents of the tank, It is mounted on the side of the tank shell
• Other customizations of the tank – according on customer´s requirements – non-standard dimensions, special armatures, special surface and design of the tank etc.

Why choose MODULO FUIC/FUEC unit for the fermentation and maturation of beer ?

• Independence of the fermentation unit on the external cooling system – Each fermentation unit has its own independent cooling system
• Easy and quick installation – Customer receives the compact fermentation unit on the pallet, moves it using wheels to the destination, connects the unit to the power and then the equipment can be immediately used to the fermentation of beverages
• Financial savings and quick startup – Customer need not use any specialists – any building reconstruction nor build any new pipe routes for the cooling system are needed.
• Minimizing of operating losses during an equipment failure – In case of a failure of one cooling unit only one tank is temporarily out of operation, not the entire brewery
• Mobility – Change placing of the fermenters in the brewery cellar is very simple and fast because it is easy to move the fermentation unit to another place and the fermenters can start their work immediately again
• Simple connection – The fermentation unit is connectable to the wort brew machine and to other brewery devices using special hoses and fast clamping connectors therefore there is need not to install any welded piping system
• Compatibility – We deliver fermentation blocks with adapters that enable integration of a module into an existing system of any microbrewery – connected via hoses or stainless pipes

Why choose MODULO FUIC/FUEC unit for the fermentation and maturation of beer ?

• Independence of the fermentation unit on the external cooling system – Each fermentation unit has its own independent cooling system
• Easy and quick installation – Customer receives the compact fermentation unit on the pallet, moves it using wheels to the destination, connects the unit to the power and then the equipment can be immediately used to the fermentation of beverages
• Financial savings and quick startup – Customer need not use any specialists – any building reconstruction nor build any new pipe routes for the cooling system are needed.
• Minimizing of operating losses during an equipment failure – In case of a failure of one cooling unit only one tank is temporarily out of operation, not the entire brewery
• Mobility – Change placing of the fermenters in the brewery cellar is very simple and fast because it is easy to move the fermentation unit to another place and the fermenters can start their work immediately again
• Simple connection – The fermentation unit is connectable to the wort brew machine and to other brewery devices using special hoses and fast clamping connectors therefore there is need not to install any welded piping system
• Compatibility – We deliver fermentation blocks with adapters that enable integration of a module into an existing system of any microbrewery – connected via hoses or stainless pipes

Usual values of main parameters during the fermentation and maturation of beer:

Primary fermentation (main beer fermentation)

Secondary fermentation (beer maturation, beer carbonization)

The tables above show that for the production of beer types which use yeast fermented on bottom (eg. traditional Czech lager beer ), we must consider that the production time of beer is about 50-60% longer than the production time of beer types with the yeast kinds that ferment on the surface of the wort. As well as the period of beer production must be longer if we want to produce stronger beers in the same fermenters because the fermentation and maturation of wort require longer time.

For this reason it is necessary carefully count the number of fermentation and ripening tanks for assess the production capacity of the brewery.

The calculation of the required number fermenters is quite complex and this is always a part of the calculation that we perform for our customer free if we participate in tender for delivery of a brewery. This is a part of our consultation work according we provide on requirements of specific customer.

We recommend use our compact fermentation units in all small-size microbreweries which plan expansion in future without big costs !!

The compact beer fermentation units are basic components of our modular microbreweries Breworx Modulo. Read more : modular microbrewery BREWORX MODULO.

Variations of the CCT 150 according to the overpressure limit :

In addition, the customer can choose between the pressure and non-pressure vessels. According to the maximum allowable overpressure in the vessel we produce CCT fermentation tanks in two designs:

• Non-pressure fermentation tank CCT-150 – The maximum available overpressure is 0.5 bar – it is designed as 3.0 bar tank, tested for pressure up to 4.0 bar, but it is not declared as pressure tank according to EU Directive PED . Suitable for non-pressure fermentation of beer or cider, or also as pressure vessel in some countries out of European Union.
• Over-pressure fermentation tank CCT-150 – The maximum available overpressure is 3.0 bar (optionally, according to specific customer requirements up to 5.0 bar), includes the certificate for pressure vessels according to EU Directive PED. The vessel can be used not only for the fermentation and maturation of beer, but also as pressure tank for isobarical filling of beverage into kegs or bottles, for filtration and isobaric serving of beer or cider into glasses.

Variations of the CCT 150 according to their quality and equipment :

According to quality requirements and financial possibilities of customers we recognize the fermentation tanks with four classes of quality and equipment:

• TQ- TOP Quality – The highest quality we offer. The inner surface has a guaranteed roughness Ra<0.5 μm – glossy design. The outer surface is fully polished-unified. All functional armatures and fittings that have an impact on the reliability and safety of the products are made in Europe or in the USA. The best separation of the used yeast from the beer or cider, especially at single-phase fermentation of beer or cider when the both fermentation and maturation process are provided in the same tank. Luxury equipment of the tanks. The main advantage is very luxury design of the tank.Three years warranty for stainless steel main parts and also for the fittings. Price will be calculated individually for each tank.
• HQ – High quality – High quality workmanship of all parts, welded joints and surfaces. The inner surface has a guaranteed roughness Ra<0.5 μm – glossy design. The outer surface is grinded-unified. All functional armatures and fittings that have an impact on the reliability and safety of the products are made in Europe or in the USA. A perfect separation of the used yeast from the beer or cider, especially at single-phase fermentation of beer or cider when the both fermentation and maturation process are provided in the same tank. Luxury equipment of the tanks. The main advantages are the savings of sanitizing solutions, water and energy, minimized losses of beverages, shorter work time, reduction of production costs. Three years warranty for stainless steel main parts and also for the fittings. The quality class for the most demanding customers.
• SQ – Standard quality – Standard quality workmanship of all parts, welded joints and surfaces. All functional armatures and fittings that have an impact on the reliability and safety of the products are purchased from approved suppliers from Europe or USA. Inspection of all critical welds and joints. The inner surface has a guaranteed roughness Ra<0.8 μm – grinded design, inner surface of the cone part is polished with guaranteed roughness Ra<0.5 μm . Usual equipment af the vessels, usual set of fittings. Tanks in this quality class comply with all European regulations for pressure vessels and food processing plants. Two years warranty for stainless steel main parts, two year for the fittings. It is the most often ordered quality variation of tanks for our customers.
• LQ – Lower quality – Lower quality workmanship of all parts, welded joints and surfaces. The most of functional armatures and fittings are purchased from approved suppliers from Asia. The inner and outer surface are not unified. Not guaranteed surface roughness on the inside of the containers. One year warranty for stainless steel main parts, one year for the fittings. This solution is interesting only for starting small breweries because it saves an investition costs. Unfortunatelly, this brings higher beverage production costs. Longer period of sanitation, greater consumption of the sanitizing solution, energy, labor and hot water. High losses of produced beverages. We don´t offer this quality class for our products, because the equipment with the LQ quality class does not comply with the European regulations for pressure vessels and food processing plants. It is the quality of tanks of very cheap world producers of the tanks.

Applicability of fermentation units according to brew machine type and required number of wort batches in a brewing day

Applicability of fermentation units for different production operations
