Description
Special stainless steel keg (known as the cuvette, Corny keg, Cornelius keg, Soda keg, Beer keg) equipped with the pressure relief valve – volume 19 liters. The keg is designed to the primary fermentation or the secondary fermentation of alcoholic beverages like beer or cider, under pressure up to 9bar. The keg is also usable for direct dosing beverages into glasses.
The fermentation keg is equipped with big filling hole. It allows easy cleaning of the keg before the filling process.
Connection is using special coupler Jolli (Ball Lock) with 7/16″ thread.
Technical parameters :
- Volume: 18,73l
- Size: 22×63 cm
- Weight: 4.76 kg
- Max. pressure: 9 bar / 130 dogs / 900 kPa
- Material: stainless steel 304
- Uses: beer, cider, post-mix (syrups) and pre-mix
- The top and bottom rubber feet allow the stacking more kegs
- Lid with safety pressure valve and bottom eye (sieve for the hops extraction into beer can be mounted on this)
Optional accessories :
FKRV-IJ-19 : Insulation jacket for the fermentation stainless steel keg 19.0L
A simple insulation jacket for the 19L beer keg allow you to keep your beer cold and fresh for a long time.

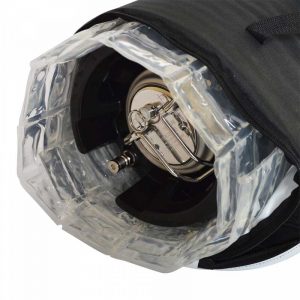

FKRV-IB-19 : Active cooling bag – the active ice cooling jacket for FKRV 19L fermentation beer kegs
The ice active bag FKRV-IB-09 is an insulated bag for the fermentation beer kegs with volume of 19 liters. The first and only keg cooler designed specify to allow you to take your beer keg on the go. This bag will improve your beer serving experience by making it that much easier to transport and serve your beer at an ideal temperature. Just hook up a picnic tap on your keg and take your home beer anywhere.
CBL-KPS : Keg pressurizing set with the BALL LOCK NC coupler (for CO2 gas)
The easy-to-assembly set includes all components for pressurization of FKRV fermentation keg with carbon dioxide
FKRV-BL-BTS : Plastic beverage tap assembly set
(The easy-to-assembly set includes the plastic tap and connections for dosing beverages directly from the FKRV fermentation kegs)
FKRV-APM-01 : BlowTie type 1 / Adjustable pressure mechanism (0-2.7 bar) with a manometer
Complete set of components to accurate adjustation pressure in the FKRV stainless steel fermentation keg.
Ideal solution for the primary and secondary beer or cider fermentation directly in the stainless steel keg.
FKRV-APM-02 : BlowTie type 2 / Adjustable pressure mechanism (0-4.0 bar) with a manometer
Complete set of components to accurate adjustation pressure in the FKRV stainless steel fermentation keg.
Ideal solution for the primary and secondary beer or cider fermentation directly in the stainless steel keg.
apm-dbt2bl : BlowTie type 3 / Adjustable pressure mechanism (0-6.2 bar) with a digital manometer
Complete set of components to accurate adjustation pressure in the FKRV stainless steel fermentation keg.
Ideal solution for the primary and secondary beer or cider fermentation directly in the stainless steel keg.
FKRV-BL-TVI : BALL LOCK Stainless steel beverage tap
Special combination of the fermentation lock and the dispense valve for dosing beverages directly from the fermentation keg
FKRV-HTS : HOP-TUBE stainless steel hop sieve
Covered sieve intended for extraction of hops into cold beer directly in the FKRV fermentation stainless steel kegs
FKRV-BL-95 : BALL LOCK conector for connection of the beverage hose Ø 9.5mm … (thread 1/4 BSP)
FKRV-BL-80 : BALL LOCK conector for connection of the presure inert gas hose Ø 8mm … (thread 1/4 BSP)
FKRV-BL-NCG : Coupler BALL LOCK NC – gas
1/4″ MFL connection x M 7/16″ connection – for input of the pressure inert gas
FKRV-BL-NCB : Coupler BALL LOCK NC – beverage
1/4″ MFL connection x M 7/16″ connection – for input / ouput of the beverage
FKRV-BL-NCG-SS : Coupler BALL LOCK NC stainless steel – gas
M 7/16″ thread connection for input of the pressure gas
FKRV-BL-NCB-SS : Coupler BALL LOCK NC stainless steel – beverage
M 7/16″ thread connection for input / output of the beverage
JGRE-716IN-80 : DUOTIGHT-1 Coupler F 7/16″ x hose 8mm – gas
Connection between BALL LOCK and hose 8mm for input of the pressure inert gas
JGRE-716IN-80 : DUOTIGHT-2 Coupler F 7/16″ x hose 8mm – gas
Connection between CO2 reduction valve and hose 8mm for input of the pressure inert gas
JGRE-716IN-95 : DUOTIGHT-3 Coupler F 7/16″ x hose 9.5mm – beverage
Connection between BALL LOCK and hose 9.5mm for input / output of the beverage
RVA-CO2 : Reducing valve for CO2 bottles M 7/16″
Reducing valve for pressure bottles with CO2 gas x M 7/16″ (connection for DUOTIGHT-2)
JGFH-60-80-G : Hose 8mm – gas
Blue hose with 8mm outer diameter for gas
JGFH-67-95-G : Hose 9.5mm – beverage
Red hose with 9.5mm outer diameter for beverage
Spare parts :
FKRV-PRV : Pressure relief valve for FKRV stainlees steel kegs
FKRV-SRS1 : Seal ring set No 1
Set of seal rings for the fermentation kegs
FKRV-SRS2 : Seal ring set No2
Two outer O-rings for the ball fermentation lock)
FKRV-SPL : Standard lid
Including a silicone o-ring and a pressure relief valve, a hook for HOP-BOMB or HOP-TUBE connection (Spare part)
FKRV-FPL : Lid for FKRV fermentation stainless steel kegs (cuvettes) with the fermentation plug (air lock)
Special lid for a cuvette with the fermentation plug (air lock). This special lid allows you the fermentation of beverages in the slim stainless steel kegs. Compatible with 9 L and 19 L cuvettes.
Video – how to use the Fermentation keg for the primary fermentation :
