Description

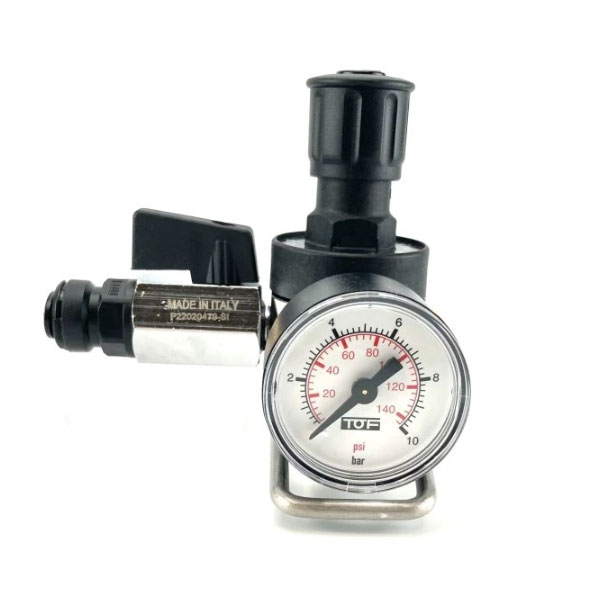

The TOF CO2 pressure reducing valve with the manometer for the Sodastream CO2 pressure cylinders equipped with the outer thread TR21x4 (ACME) is a component needed to measuring, reducing and dosing of pressurized carbon dioxide from Sodastream CO2 pressure cylinders.
Complete set with the ball valve and the hose quick coupler (for 8mm hose) on the gas output.
Pressurized carbon dioxide is necessary technical gas in all breweries or wineries to pushing of beer or wine from tanks to other tanks, from isobaric filling beverages into bottles or kegs, for carbonation of beverages etc.
We do not supply this important part in the set with pressure cylinder. The customer provides themself by a local supplier of industrial gases, who also ensures the further fulfillment of these bottles with carbon dioxide. Current appearance of the product of the equipment may be different of the picture.
Technical description :
The TOF CO2 pressure reduce valve with the manometer includes :
- Manometer for measure of the working pressure (in output)
- Maximal pressure (in the pressure cylinder) : 120 bar
- Maximal pressure (in the gas output) : 5.5 bar
- Pipe connection for the CO2 pressure cylinder (a nut with the inner thread TR21x4 (ACME)
- Pipe connection for the CO2 gas hose (inner thread BSP 1/8″ female)
The set includes following accessories :
The reducing valve set is supplied with the hose quick coupling and the ball valve on the gas output. Designed to connect the 8mm hose.
DMA-G18M-H080 : DMfit quick coupler/adapter : BSPP 1/8″ male thread | hose (flexi pipe) D=8.0mm (5/16″), AMCB0802M
BVM-2BSP-C18 : Micro ball valve 1/8″ (reduced flow) with connections 1x BSP 1/8″ internal thread, 1x BSP 1/8″ external thread
