PLF-SPP2020 : Portable stainless steel plate filter 200×200 with polyethylene plates and a the pump

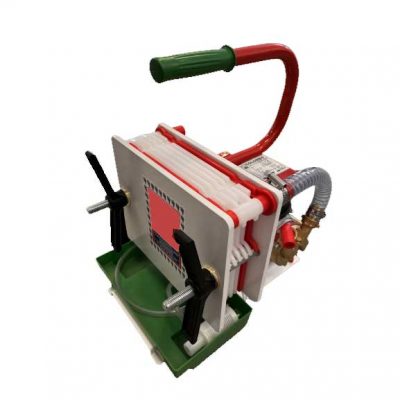

Portable stainless steel plate filter 200×200 with polyethylene plates and an electrical pump. Available with 6, 12 or 18 pcs of polyethylene plates (polyethylene frames) for filtration cartons 200×200 mm.

This filtration system involves the use of filter layers “cartons” which are interposed between the plates with frames made of polyethylene. New and very favourably priced handy table top model of the beverage filter with handle and drip tray. Pump without bypass, can also be used separately. Suitable for filtering food liquids such as wine, beer, juice, etc. Not suitable for double filtration. With standard NBR seal for liquids up to 60°C.

Hose connections: DN 20 mm; pump power 0.5 hp, 230 volt/50 Hz, 2850 rpm.

The filtering machines produced in three variants have the following characteristics:

1. Portable filter 200×200/6 with 6 pcs of polyethylene plates – maximal flow rate 300 L/hr (wine) / 200 L/hr (beer)

Filtration surface : 0.24 m²

Dimensions : 517x330xh330 mm

2. Portable filter 200×200/12 with 12 pcs of polyethylene plates – maximal flow rate 500 L/hr (wine) / 350 L/hr (beer)

Filtration surface : 0.48 m²

Dimensions : 515x330xh330 mm

3. Portable filter 200×200/18 with 18 pcs of polyethylene plates – maximal flow rate 800 L/hr (wine) / 550 L/hr (beer)

Filtration surface : 0.72 m²

Dimensions : 520x330xh330 mm

Stainless steel frame

Stainless steel frame is a professional solution for the beverage filtration – easy cleaning and long lifetime.

Properties of all types :

• AISI 304 stainless steel filter frame
• Polyethylene plates
• Electrical pump with the stainless steel fittings
• Input/output hose fittings DN20

Standard accessories :

• Electric pump (1ph 230V/50Hz)

Optional accessories :

PVC beverage hose 20mm … € 6 / meter

Spare part : set of rubber seals … € 10 / set

Spare part : input terminate plate – noryl 200 x 200 mm … € 10 / pc

Spare part : middle plate – noryl 200 x 200 mm … € 10 / pc

Spare part : output terminate plate – noryl 200 x 200 mm … € 10 / pc

Why choose a plate filter for the beverage filtration ?

Beverage filtration through a plate filter is the cheapest and easiest way to get rid of most live yeast in beer or cider. It is used in microbreweries of a small and medium size, for which the cost of the equipment is a primary decision parameter.

These filters are made from stainless steel therefore resist to extent aggressive substances. They consist of two end steel plates ,one of which is slidable on guide pins , controlled by the pressure screw or hydraulic element. Among them there are polyethylene frames with filter cellulose pads (cartons) of the choosed porousity and number of the plates according to the required purity and overall flow capacity of the filtered liquid.

During passage of beverage through the filtration plates the impurities contained in the beverage are captured. The flow rate gradually decreases, depending on the saturation of the filter plates by the impurities (yeasts).

Plate filter is mobile on castors and it is equipped with a control pressure gauges, air-outlet valve and flow taps made of stainless steel. The filter allows continuous filtering and dual filtering with different purity grade using two types of cartons in one pass through the filter body . It is a convenient way especially in terms of lower workload of beverage and easier to easy work.

Advantages of a plate filter:

• Low cost of purchasing
• Easy to use
• Using both primary and secondary filtration – choice of filter elements

Disadvantages of a plate filter:

• Higher cost of consumables in comparation with the kieselguhr filters – the filter cartons are intended only for several use
• It is necessary to disassembly entire filter after its every use, to remove the filter plates and also to do the full cleaning and sanitizing of the filter
