KGR-BX4T1ER : Kegerator KEGBOX.4 – Refrigerator for 4 kegs, beer dispense tower with one European standard faucet, with the reduce valve for a big CO2 cylinder

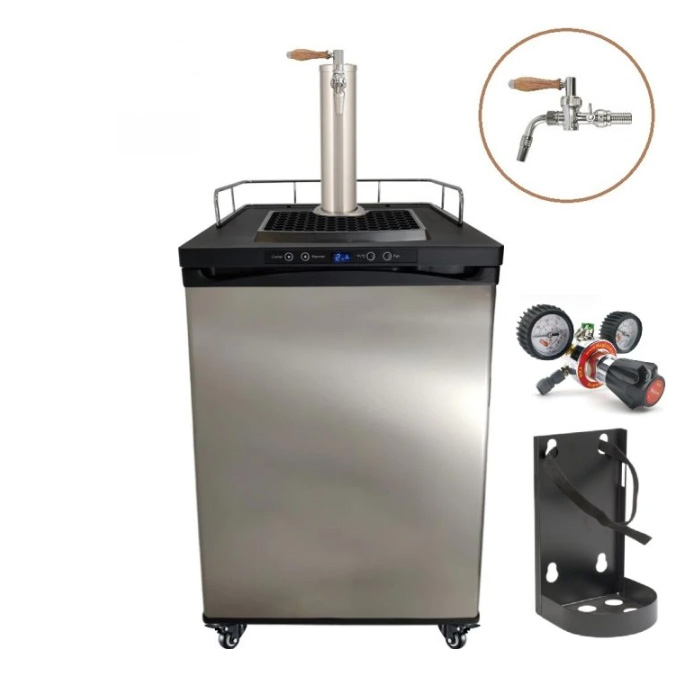

The KEGBOX.4 refrigerator for 4 kegs (the kegerator) with the dispense stand equipped with one stainless steel beverage faucet, with the reduce valve for a big CO2 pressure cylinder.

The KEGBOX.4 kegerator is a compact refrigerator for up to four 19L Cornelius kegs (Cuvettes) or one 15-50L commercial stainless steel keg, ready for the installation of a beer dispense tower, with the drip tray. It is a modern and energy-efficient keg refrigerator suitable for both home and professional draft beer serving – an ideal solution for homes, offices, but also for small bars and restaurants.

The KEGBOX.4 kegerator will provide you with perfect refreshment at parties, barbecues or gatherings with family and friends. The kegerator is primarily intended for tapping beer, but you can also use it for wine, soda or non-alcoholic lemonades. You can place up to 4 cuvettes (19L Cornelius stainless steel kegs) or one standard stainless steel or plastic keg with capacity up to 50 liters into the spacious refrigerator. Thanks to the digital thermostat, it is ideal not only for cooling and subsequent tapping of beer, but also for its fermentation and maturation. The temperature inside the refrigerator can be easily regulated on the panel above the door without the need to open it. The CO2 pressure bottle for pressurizing barrels can be easily placed on the back of the refrigerator in the holder thanks to the prepared closable openings. The refrigerator is fully mobile with four fixed floor castors, two of which are lockable.

Package contents:

• The KEGBOX.4 kegerator (without a beverage dispense tower and taps)
• Plastic drip tray with cutout
• 4 fixed floor casters, two of which are lockable + mounting screws
• Practical CO2 bottle holder (max. 2.6kg bottle)
• Chrome railing
• Wire shelf
• Stainless steel beverage dispense stand, one stainless steel dispense tap European type with the foam compensator, suitable for beer, wine and soda water, connection material (2m hose 8mm for gas, 2m hose 8mm for beverage).
• Connection set for use of standard beer tap with 5/8″ thread on the Dispense stand body for KegLand Kegerator
• Pressure reducing valve for CO2 cylinders, G 3/4″ female threaded connection, 7 bar (MK4-CO2-34) – compatible with the CO2 cylinders usual in Czech Republic.
• Optionaly (for a surcharge) : Reducer (a pipe adapter) from thread of BSP 3/4″M (male) to thread of W21.8 x 1/14″F (female) for CO2 pressure cylinders (RV-R3421). Warning : This adapter is necessary and we recommend you to add this reducer if the CO2 cylinders in your country are equipped with the connection thread of W21.8 x 1/14″F … or if you are not sure which connection is usual in your country.

Properties:

• Digital thermostat, LCD with digital temperature indicator – convenient temperature setting without having to open the refrigerator
• Plastic side walls and a plastic top desk
• Door in stainless steel
• Stainless steel floor plate – protects the bottom of the refrigerator from damage
• Adapted for easy placement of the CO2 bottle outside the kegerator, saving valuable space in the refrigerator
• Rear evaporator allows the kegerator to be placed without space on the sides, more efficient and stable cooling, faster cooling and better performance in hot environments
• Two sealed holes at the back for gas hose routing – adapted for easy placement of the CO2 bottle outside the kegerator, saving valuable space in the refrigerator
• Central fan switched by a compressor
• Integrated interior light activated by opening the door
• Reversible door – possibility of choosing the opening direction
  Wire shelf adjustable in 4 height levels in case of using the refrigerator for cans/bottles (at a height of 20cm, 30.5cm, 41cm and 51.5cm)
• Practical CO2 bottle holder
• EU plug, 220-240V
• Volume: 170 litres
• Refrigerant R600a  isobutan (40g)
• Minimum temperature -5°C, maximum 28°C (does not contain a heating element, only cools)
• It does not contain a heating element, it only the cooling. If you want a device that can both cool and heat, you need the RAPT refrigerator.

The KEGBOX.4 kegerator upgrades

The KEGBOX.4 kegerator offers several improvements over other kegerators and also Kegland kegerators of previous series. It is 10% more energy efficient and offers 15% faster cooling. Thicker side walls provide better insulation and rust resistance while a digital thermostat and a draft cooler fan increase efficiency and control. The KEGBOX.4 kegerator is fully mobile with four solid casters, two of which are lockable.

1. Handle of the beer faucet
2. Beer faucet (beverage dispense tap)
3. Drip tray (stainless steel)
4. Beer dispense tower (stand)
5. Guardrail
6. Gas cylinder (CO2)
7. Beverage hose
8. Keg coupler
9. Gas reduce valve
10. Gas hose
11. Castors (2 with brakes)
12. Keg barrel

Technical specifications :

• Climate Class: T (Tropical) – tested for tropical environment
• Refrigerant: R600a  isobutan (40g)
• Rated Current: 0.80A
• Power: 85 Watts
• Insulation : cyclopentan
• Capacity: 170 litres
• Voltage: 220-240V
• Frequency: 50Hz
• EU power plug

Dimensions :

• Width : 600mm
• Depth : 655 mm deep (without the CO2 cylinder holder)
• Depth max : 655 mm deep (with the CO2 cylinder holder)
• Height : 845 mm  (without handrails, the drip ray and the stand)
• Height max : 1165 mm high with castors and the stand (the dispense tower and taps)

General advantages of the kegerator over classic refrigerators:

The kegerator is ready for installation of a draft stand (dispense tower) – the upper part of the kegerator is equipped with a covered grommet, under which there is a hole with four pre-prepared threads for easy attachment of the draft stand.
Space for gas line – in the back wall there are two special holes for hoses for CO₂ or N₂ lines.
Gas bottle holder – on the back outside of the kegerator there is a holder for secure attachment of a gas cylinder.
Optimized internal space – the compressor is located in the lower central part, not in the corners like in conventional refrigerators, so there is no “step” inside and more space is created for kegs or cuvettes.
Cooling of the draft stand – the kegerator has an integrated fan that directs cold air to the draft stand.
Digital thermostat with external control – the temperature can be precisely set and changed without opening the door.

Advantages of KEGBOX.4 over other kegerators:

The external evaporator is located on the back – higher cooling efficiency – the evaporator has free contact with the air, the flow cools the condenser more effectively.
Better performance in hot environments – when the ambient temperature is higher, the rear evaporator dissipates heat better because it is not embedded in insulation.
Thanks to the rear evaporator, no lateral clearance is required – the refrigerator does not overheat on the sides
The rear evaporator is fully accessible from the outside of the refrigerator, which greatly simplifies service. However, models with the evaporator embedded in the side walls in PUR foam are unserviceable, because repairs require the destruction of the insulation and walls.

Installation and ventilation:

Not suitable for closed installation – it needs space behind the appliance – at least 5-10 cm from the wall for proper air flow.
For indoor use only (not intended for outdoor use)
Do not expose to direct sunlight – the plastic covers could be damaged and the cooling capacity could not be enough.

Capacity and compatibility:

Suitable for Cornelius kegs (cuvettes), polykegs and classic keg barrels with a corresponding impactor (not included).

4× Cornelius cuvette (Ø 21.5 cm)
3× Slim keg (Ø 23.2 cm)
1× 15l, 30l or 50l KEG barrel (Ø 37 cm) (50l when using a low-profile elbow)
2× 15l commercial KEG barrels on top of each other – only the upper barrels can be connected to the draft taps
2x polykeg (Ø 24 cm) + 1x cuvette (Ø 21.5 cm)

Cornelius kegs (cuvettes) 19L (Ø 21.5 cm)	Slim kegs (Ø 23.2 cm) , Polykegs (Ø 24 cm)
15l commercial KEG barrels on top of each other (Ø 37 cm)	15l, 30l or 50l KEG barrel (Ø 37 cm)

Note:

The CO2 pressure cylinder and the pressure regulator are not part of the set and must be purchased separately. The CO2 pressure cylinder can be shipped on a pallet with the kegerator.
For tapping from a 50l commercial keg, a low-profile elbow must be purchased.
Taps and stand are not included.
