FMS10-KGL100 : 10″ filter candle for water and beverages – porosity 1.0 micrometer (only for the WBFK-95H Kegland filter housing)

 13 excluding VAT

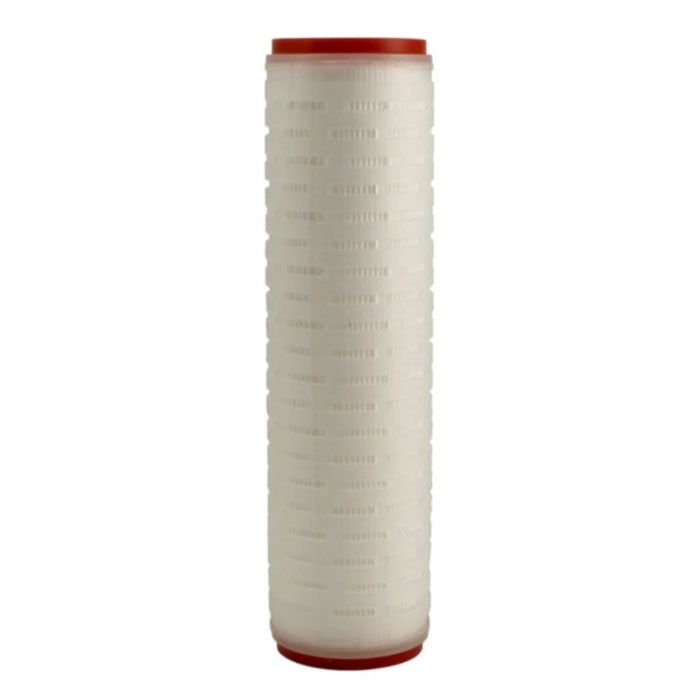

The mechanical filtration candle element 10/3″ with porosity 1.0 µm  (the microfiltration element for water and beverage products).  Consumable filtration material for mechanic candle filters.

Kegland Filter Cartridge, 1.0 µm, 10″, Silicone O-rings

  • Product name : Kegland
  • Product code : KL02059
  • Recommended use :  Fine fitration of a drink to significantly capture of rest yeast or filtering water (wine, beer, cider, kombucha …)
  • Producer : Kegland, China











Description

The mechanical filtration candle element 10/3″ with porosity 1.0 µm  (the microfiltration element for water and beverage products).  Consumable filtration material for mechanic candle filters.

Kegland Filter Cartridge, 1.0 µm, 10″, Silicone O-rings

  • Product name : Kegland
  • Product code : KL02059
  • Recommended use :  Fine fitration of a drink to significantly capture of rest yeast or filtering water (wine, beer, cider, kombucha …)
  • Producer : Kegland, China



Attention :

This filter candle element is compatible only with this filter (product of the Kegland) :

WBFK-95H : Simple Water-Beer Filtering Kit

It is not compatible with the ENOL filtration elements and filters designed for the ENOL filtration elements.





Features:

  • Element size : 10/3″
  • Diameter : 2.75″
  • Pore size 1.0 µm
  • Weight : 0.27 kg
  • High retention for a reliable separation effect, ß ratio ≥ 5000 or ≥ 99.98% efficiency for defined particles
  • High chemical resistance through use of 100% polyethersulfone and polyethylene
  • Easily wettable, which means the integrity test is straightforward
  • The materials used enable regular cleaning and sterilization cycles and therefore very economic operation
  • Chemical cleaning is not allowed



Product specifications :

Differential pressure in flow direction – max 4.8 bar at 25 °C / 2.0 bar at 80 °C
Cage material Polypropylene
Adaptor without
Steam cycles >100 at 110°C in 30 minutes
Filter material type Polyethersulfone
Adaptor code
Adapter material Polypropylene
End cap material Polypropylene
Design – structure Pleated
Gasket / O-ring material Silicone
Cartridge length 10″ (25.4 cm)
Retention efficiency 99.98%
Retention rating 1.0 µm
Operating temperature – max 80 °C
Backwashability Up to 2.0 bar (29 psid) at 80 °C (176°F)
Inner core material Polypropylene
Chemical resistance pH 1-14












Additional information

Weight 1 kg
Dimensions 200 × 200 × 800 mm
