CFTC-TC15X9 : Counter flow tubular chiller TriClamp 1.5″ (D=50.5mm) x 9.5m for cooling wort or other liquids | stainless steel

Stainless steel spiral counter-current tubular cooler with a length of 9.5 meters and a tube diameter of 1/2″ (tube in tube type) is designed primarily for fast and effective cooling of beer wort after hop boiling. Thanks to the professional 1.5″ Tri-Clamp (D=50.5mm) connection, it is also suitable for more demanding and semi-professional use.

Unlike plate coolers, the tube cooler does not clog with hops even with a larger volume of hops in the wort. The all-stainless design made of food-grade stainless steel AISI 304 ensures high durability and easy, thorough cleaning of the cooler.

The CFTC-TC15X9 cooler is chemically cleanable, it can be cleaned using a combination of 2% lye and 2% acid.

Features and technical parameters:

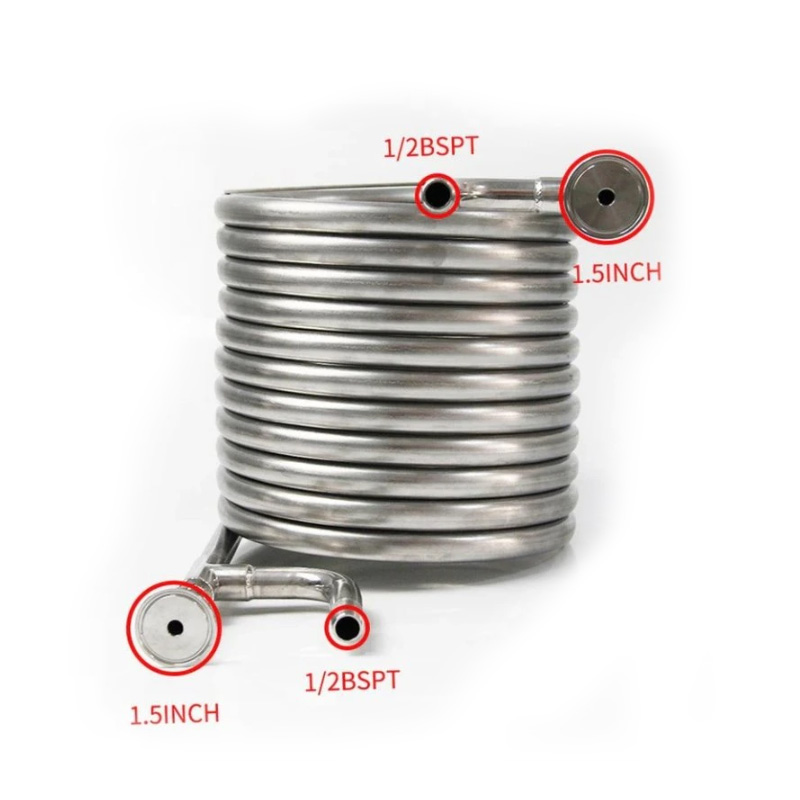

• Wort circuit: professional 1.5″ Tri-Clamp connection on the wort side (D=50.5mm, DN15)
• Cooling circuit: BSPT 1/2″ connection (also suitable for Gardena type garden hose connectors)
• Material: food grade stainless steel AISI 304
• Wort circuit length: 9.5 m
• Cooling circuit length: 9 m

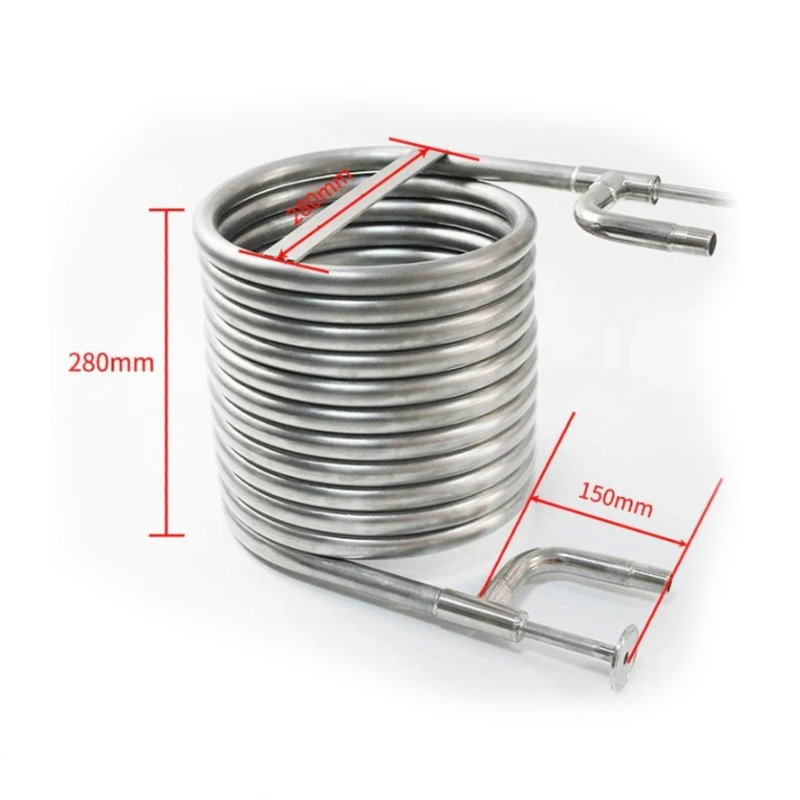

• Dimensions: height 280 mm, diameter 180 mm

Recommended accessories :

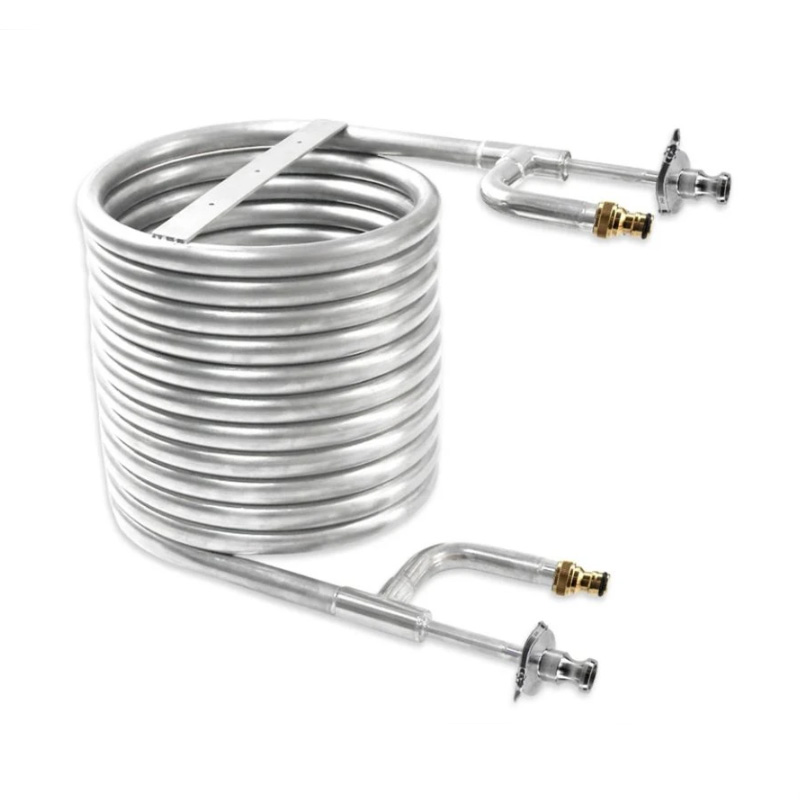

2x PF-PRHGA12BR : Hose coupler Gardena G1/2″F – brass

2x PF-CMLM25TC : Cylindrical threaded reducer Camlock (male) | TriClamp DN25 D=50.5mm | AISI 304
