BREWORX CLASSIC – wort brew machines for restaurants

Brewhouse machine with two special multi-functional tanks and classic Czech retro-design intended for interior of restaurants

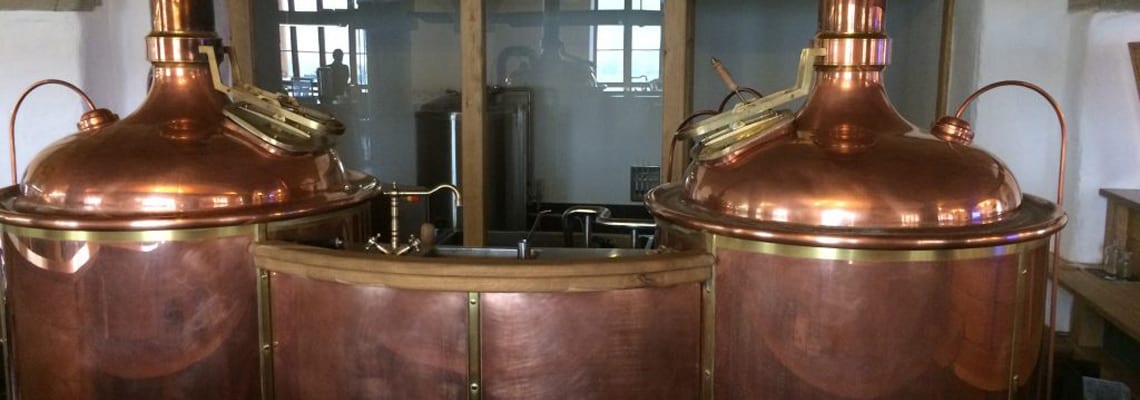

Breworx Classic - the brewhouse machine with classic Czech design for restaurant breweries

BREWORX CLASSIC brewhouses - the wort brew machines for restaurants BREWORX CLASSIC wort brew machines are the main components of the microbreweries . The brewhouse machine for preparation of wort has traditional design which is typical for Czech brewery school.

All components that are necessary to production of wort are integrated to three universal tanks. Each tank ensures several functions. This type of the wort brew machine is able to produce from one to two batches of wort per day, if malt is used for the brewing, or up to three batches of wort per day, if malt extract is used instead malt.

We produce the machine in two different variations – with the stainless steel or copper outer design. The machine is usually placed and operates directly in interior of the restaurant. Luxury traditional design of the complicated wort production machine in the middle of the restaurant is a good marketing tool which pull a customer attention.

The BREWORX CLASSIC wort brew machine consists of :

Functional tanks :

1. Mashing tank / Wort boiling tank – Multifunction vessel equipped with steam duplicator and stirrer for the mashing of malt grains in watert and for the boiling of wort with hops.
2. Filtering tank – the tank wit special sieve to separation of malt rests from wort before boiling wort with hops. This tank is used also for temporary storage part of mash during the decoction mash boiling process.
3. Whirlpool tank – tank equipped with a tangential inlet for centrifugal separation of solid hop rests from wort. This tank is positioned under the filtering tank.

Other functional parts :

  • Service platform with stairs for easy access to the tanks and all control elements
  • Pipe system with a centrifugal pump and manualy and pneumaticaly controled valves, flow-through pipe element with sight glass
  • Heating system for mashing and boiling of wort based on hot steam as a heat transfering medium with external steam generator
  • Integrated wort cooler (optional accessory) with the aeration candle
  • Electric system for measuring and manual or automatic control of the wort brewing process
  • Control panel with touch display
  • Condenser of of vapors from the wortbrewing process with the ventilator and regulation (optional accessory)
  • Lift mechanism of the stirrer in the filtering tank (optional accessory)

More about the BREWORX CLASSIC brewhouse machines

We produce these types of the BREWORX CLASSIC brewhouse machine :
