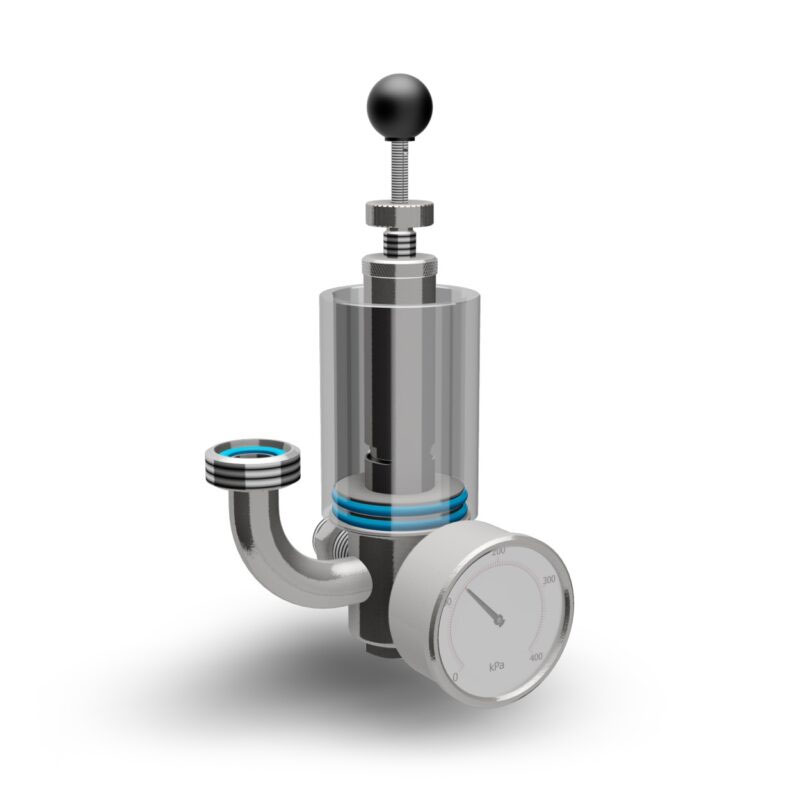

TEA-PAA5-DN15 : Pressure adjusting apparatus type 5 with manometer and air-lock for fermentors DN15

 298 excluding tax

Pressure adjusting for bunging apparatus type 5 with manometer (0-5 bar) and fermenting lock (water cup) for use with  stainless steel pressure fermenting / maturating tanks. Connection to tank DN15 (also NW15)  DIN 11851 or DIN 32686 on the CIP pipe. Adjustable pressure range from 0.2 to 3.0 bar.  Material AISI 304.

This apparatus is usually mounted on the cleaning (CIP) pipe on the tank. This model of the preaaure adjusting apparatus we use for the most of our fermenters.



Clear selection

Description

Pressure adjusting for bunging apparatus type 5 with manometer (0-5 bar) and fermenting lock (water cup) for use with  stainless steel pressure fermenting / maturating tanks. Connection to tank DN15 (also NW15)  DIN 11851 or DIN 32686 on the CIP pipe. Adjustable pressure range from 0.2 to 3.0 bar.  Material AISI 304.

This apparatus is usually mounted on the cleaning (CIP) pipe on the tank. This model of the preaaure adjusting apparatus we use for the most of our fermenters.

Order code : B-73100-015



tea-paa5-specification



Scheme of the CCT fermenter with the pressure adjusting apparatus

(recommended position)

cct-slp-shp-scheme-01

Additional information

Weight 7 kg
Dimensions 300 × 300 × 300 mm
Connection

DIN 11851 (Dairy coupling), DIN 32686 (TriClamp)
