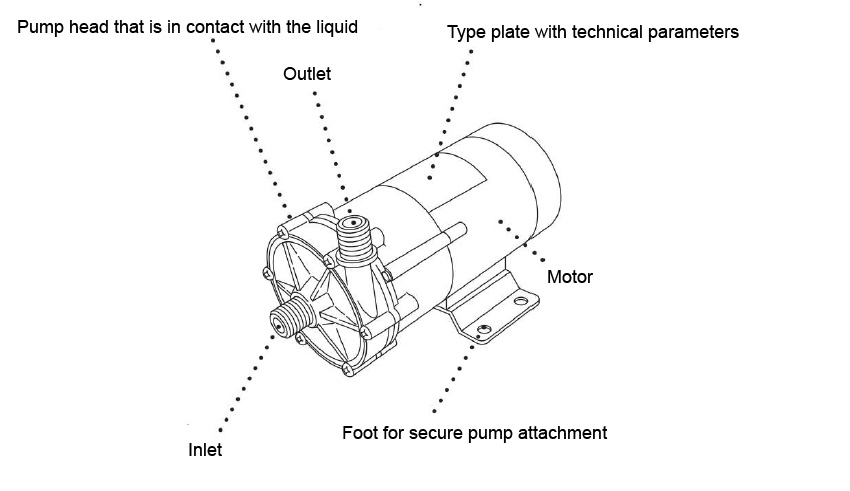

MGP-MKII65 : Magnetic pump 65W with a stainless steel head – suitable for drinks and liquids (temperature up to 120°C)

Small magnetic pump with stainless steel core , motor power 65W, designed for use in smaller breweries or beverage producion systems. The pumping-over beverages between tanks, during beer filtering process or cooling of the wort. Suitable also for pumping the santitizing solutions between vessels, cleaning the vessels and pipes. The power cord with the plug connector 1ph 220-240 Volts at 50-60hz (the european standard).

Technical parameters :

Performance : 65 W – 4000 rpm
Outlet :   BSP-M 3/4” / DN 15
Intake : BSP-M 3/4” / DN 15
Max. flow range  52 l/min = 3.12 m3/h
Max. working pressure  0.46 Bar – 0.65 Bar (4.6-6.5m)
Max. liquid temperature  120 °C
Safety level  IP55
El. connection  1-ph 220-240 Volts ±10 % 50-60 Hz

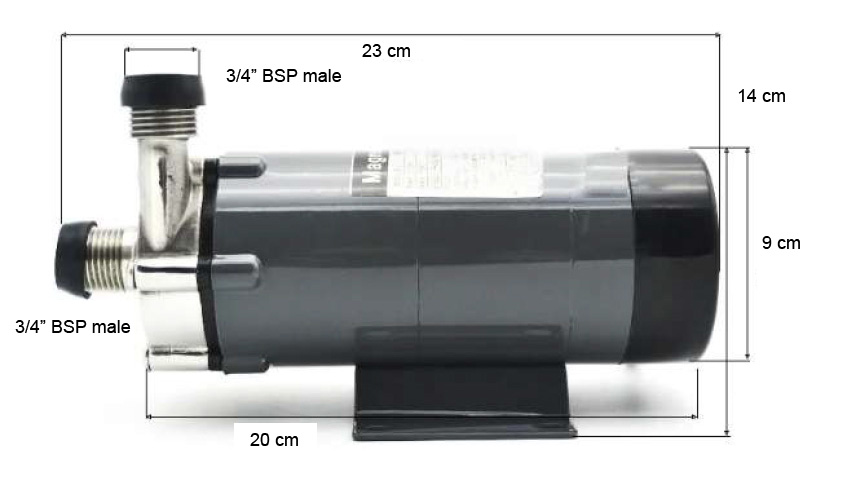

Dimensions L x W x H   230 x 120 x 100 mm
Weight :  6 kg

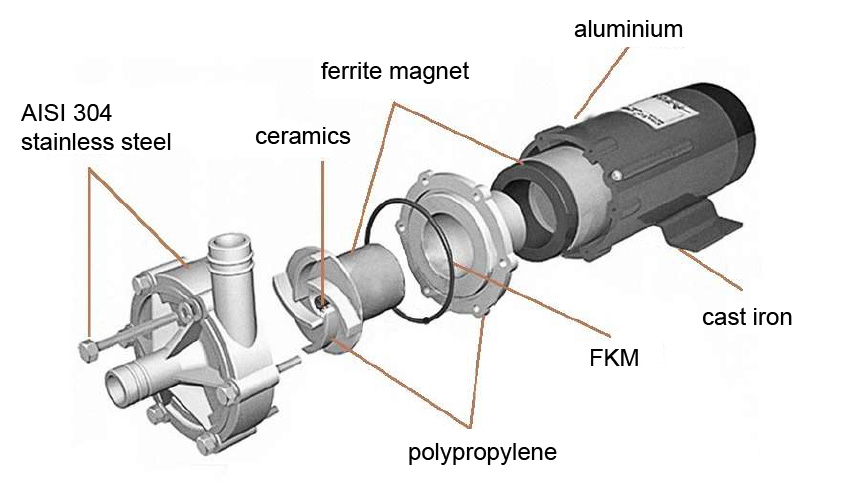

Material : AISI 316 (ONLY CORE), carbon steel (HOUSING)

Recommended for breweries with the brewhouse volume of 50-500 liters.

The pump is not suitable for pumping mash and other liquids with a higher density.

Recommended to use with the hose adapters made of brass :

PF-PRHGA12BR : Hose coupler Gardena G1/2″F – brass
