Description

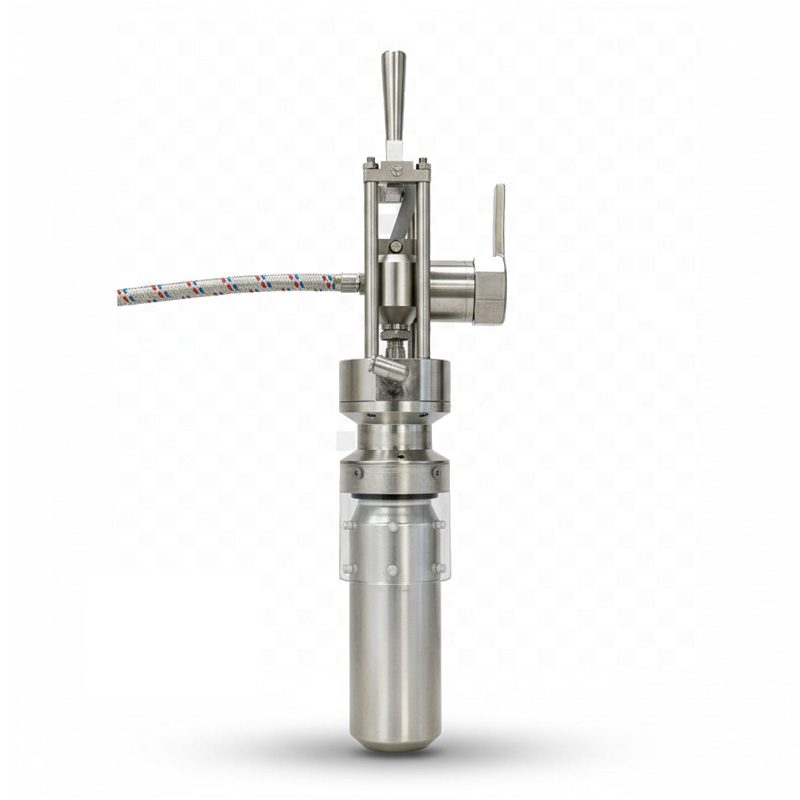

Stainless steel filling valve for counter-pressure filling of carbonated beverages into standard 0.50L and 0.33L beverage cans with ISO CDL-202 and B64 cap opening.
Key Technical Features :

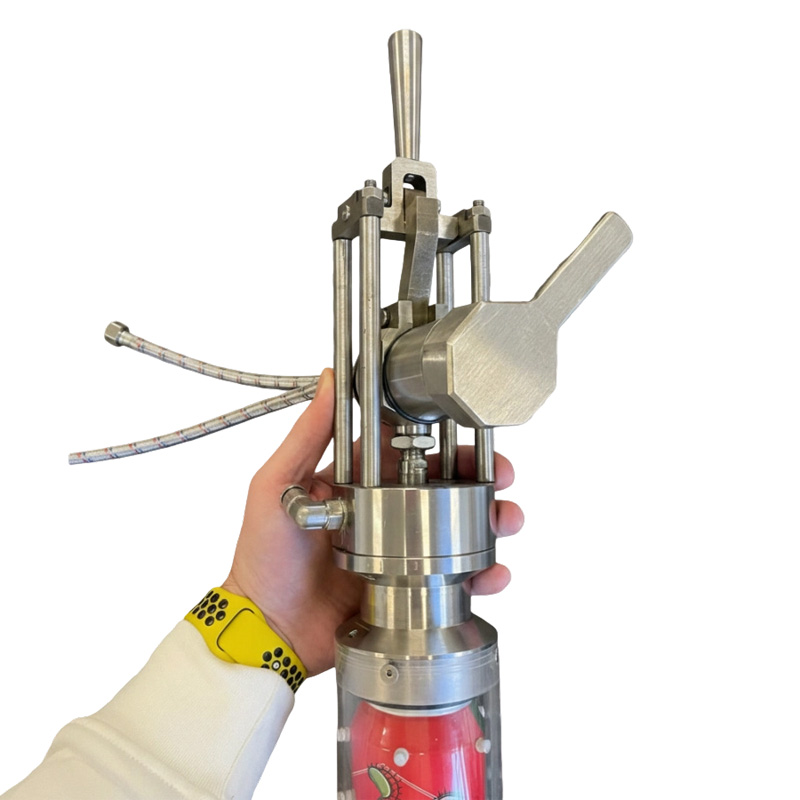

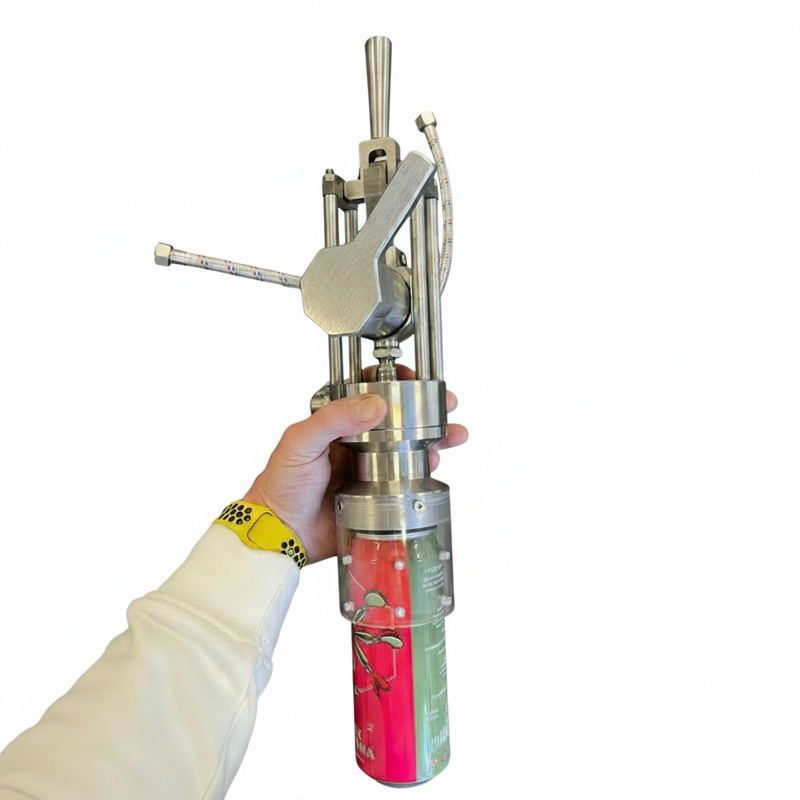

- Patented Clamping System: The can is locked using a special clamp inside the neck, creating a tight seal with just one lever movement.
- Counter-Pressure Filling: Up to 4 bars of pressure to minimize foaming and reduce product loss.
- Customizable Options: With the ability to accommodate custom can sizes upon request.
- Hygienic Cleaning: Fully compatible with Clean-In-Place systems for maintaining high hygiene standards.
- Durable Construction: Made entirely of stainless steel for maximum durability and food safety compliance.
Technical Parameters :
- Made of AISI 304 stainless steel
- Designed for mounting on a vertical plate or wall
- Filling capacity 120-180 cans per hour (depending on the speed of service and the foaminess of the beverage)
- Compatible with beverage cans with ISO CDL-202 and B64 cap opening (standard aluminium cans 0.50L and 0.33L)
- The filling unit is not compatible with other can formats (0.33L SLEEK / 0.25L SLIM / 0.20L SLIM etc.)
Optional accessories :

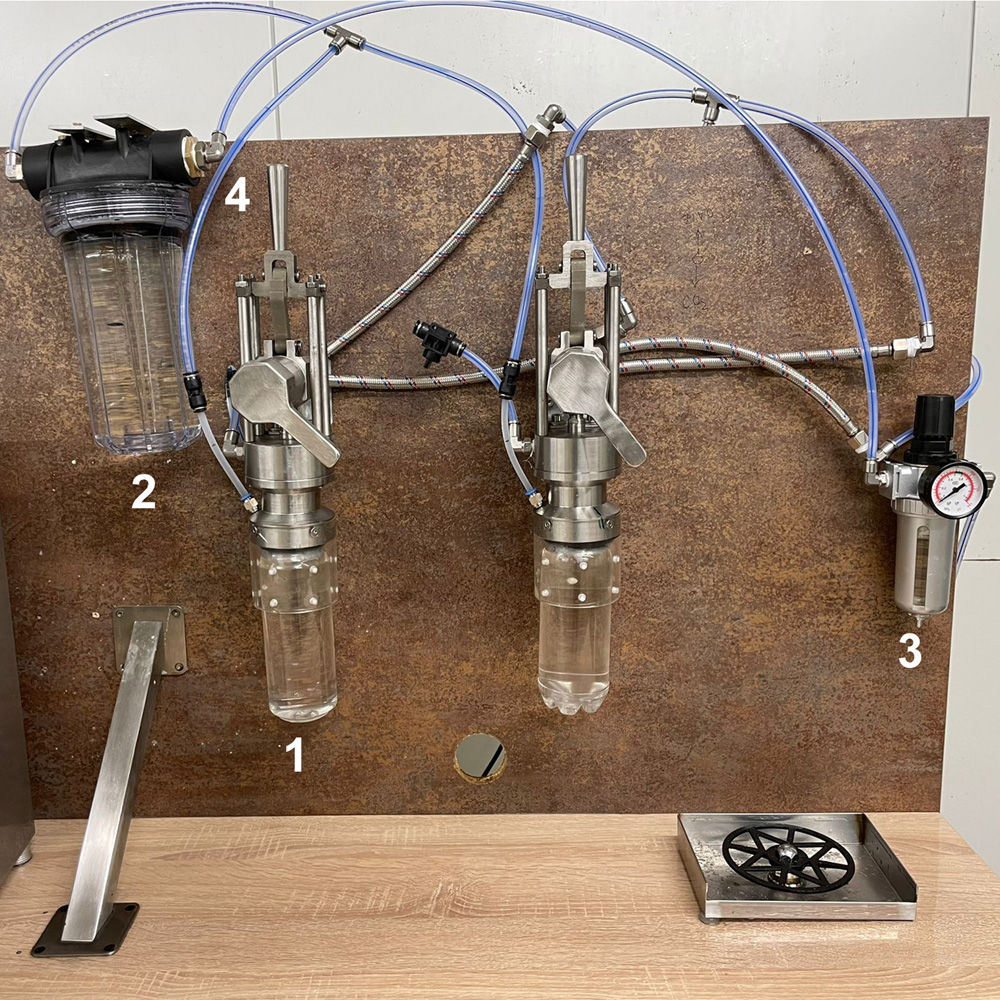

Recommended configuration with two FENiX filling valves :
| Code | Description | Price |
| MCPF-BIS | Basic installation set – included components : | € 88,- |
| MCPF-IS2 | Foam collection container | |
| MCPF-IS3 | Reducing valve | |
| MCPF-IS4 | Brass pipe reducer G 1″ x 1/2″ |
