GBFU-6F : Semi-automatic gravity bottle filling machine with the buffer tank and the plate filter | 6 filling heads

Semiautomatic filling machine with the plate filter, the buffer tank and the automatic pump designed to filtration and gravity filling of non-carbonated beverages with low viscosity into glass or PET bottles.
The machine has a built-in pump, controlled by level switches in the buffer tank. Filling level in the bottles is adjustable, bottle overfill protection. The filler requires minimal maintenance. Six filling heads.

Technical specifications:

– Filling performance: 600 L/h
– Electric demands: 0.2 kW, 1-phase 230V / 50Hz
– Filling temperature: up to 100°C
– Filling volume in bottles: adjustable height
– Number of filling heads: 6 pcs
– Plate filter : 30 plates (for the filtration sheets 20x20cm)
– Material: WNr. 1.4301, AISI 304 stainless steel

Features of the bottles:

• Height of the bottle: 100 mm ÷ 390 mm
• Maximum diameter of the bottle: Ø140 mm
• Minimum diameter of the neck: Ø15 mm

The GBFU-6F is a self-falling gravity bottle filler with automatic tank level control with thirty-chamber plate filter 20×20 cm. A pump controlled by a level sensor can be connected to the filler, which automatically switches the pump on and off.

The machine includes a twenty-chamber plate filter to filter white, rosé, red wines, fruit juices and other food liquids. Using filter plates of different densities, you can easily achieve high-quality and sterile filtration. The entire structure of the filter is made of high-quality stainless steel. The filter is equipped with a pressure gauge and a venting valve. Control using a pressure screw that pushes the two outer stainless steel plates against each other. Easy handling with the help of wheels.

Dimensions:

– Length: 830 mm
– Width: 620 mm
– Height: 1700 mm
– Weight: 100 kg
– Connections: DN25 hose connector / BSP 1″ male
– Built-in impeller pump controlled with the level sensors in the buffer tank
– Only for low density materials (fluids, beverages)
– Semi-automatic operating
– Very easy to clean
– Requires minimal maintenance

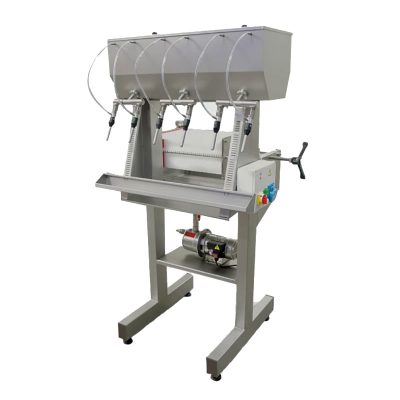

Photo is illustrative only.

Optional filtration cartons :

(the machine is in basic price delivered without filtration cartons)
