Description
Pre-filtration candle element 10/3″ with porosity 0.30 µm (the pre-microfiltration element for a final beverage product). Consumable filtration material for mechanic candle filters.

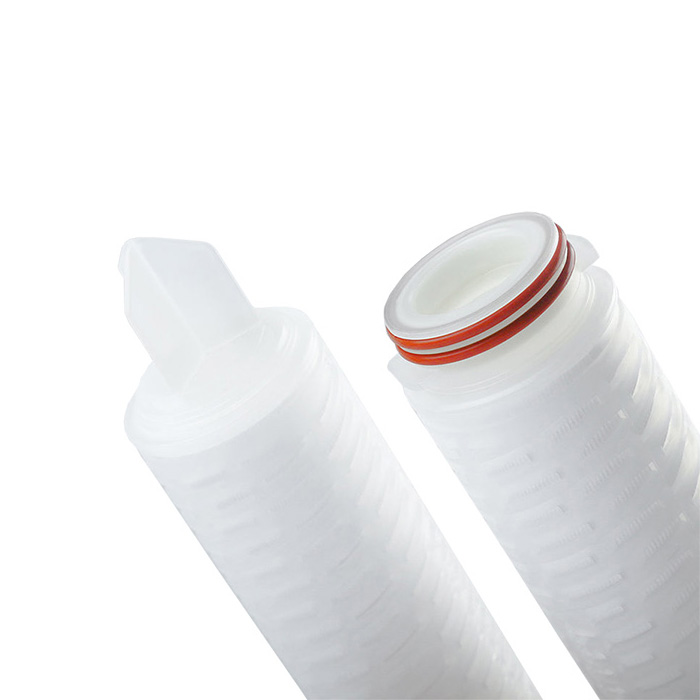

Eaton BECO PROTECT PG Depth Filter Cartridge, PG003, 0.3 µm, 10″, Adapter Code 7, Silicone O-rings
- Product name : Eaton BECO PROTECT PG Depth Filter Cartridge
- Product code : PG00371S
- Recommended use : Pre-fitration of a drink to significantly reduce quantity of bacteria in the drink (before the final membrane filter)
- Producer : Eaton, USA
- Compliance with standards : EC 1935/2004, EC 10/2011, FDA 21CFR
- Certifications : ISO 9001
BECO PROTECT PG depth filtration cartridges consist of wrapped polypropylene filter material with layered media that allows for coarse to fine filtration in a variety of applications in the beverage and food industry. The graded filter layers from coarse to fine allow a high retention efficiency and excellent backwashing capability combined with a long service life.
Features:
- Element size : 10/3″
-
Diameter : 2.75″
- Pore size 0.30 µm
- Weight : 0.64 kg
- High retention for a reliable separation effect, ß ratio ≥ 5000 or ≥ 99.98% efficiency for defined particles
- Long filter service life
- High chemical resistance through use of 100% polypropylene
- High dirt holding capacity through graded filter configuration
- Back-washable up to 29 psig (200 kPa, 2 bar) at 176 °F (80 °C)
Product specifications :
Differential pressure in flow direction – max | 4.8 bar at 25 °C / 2.0 bar at 80 °C |
Cage material | Polypropylene |
Adaptor | SOE 226 O-rings double bayonet adapter with spear |
Steam cycles | >100 at 110°C in 30 minutes |
Filter material type | Polypropylene |
Adapter code | 7 |
Adapter material | Polypropylene |
End cap material | Polypropylene |
Design | Wrapped |
Gasket / O-ring material | Silicone |
Cartridge length | 10″ |
Retention efficiency | 99.98% |
Retention rating | 0.3 µm |
Operating temperature – max | 80 °C |
Backwashability | Up to 2.0 bar (29 psid) at 80 °C (176°F) |
Inner core material | Polypropylene |
Chemical resistance | pH 1-14 |
