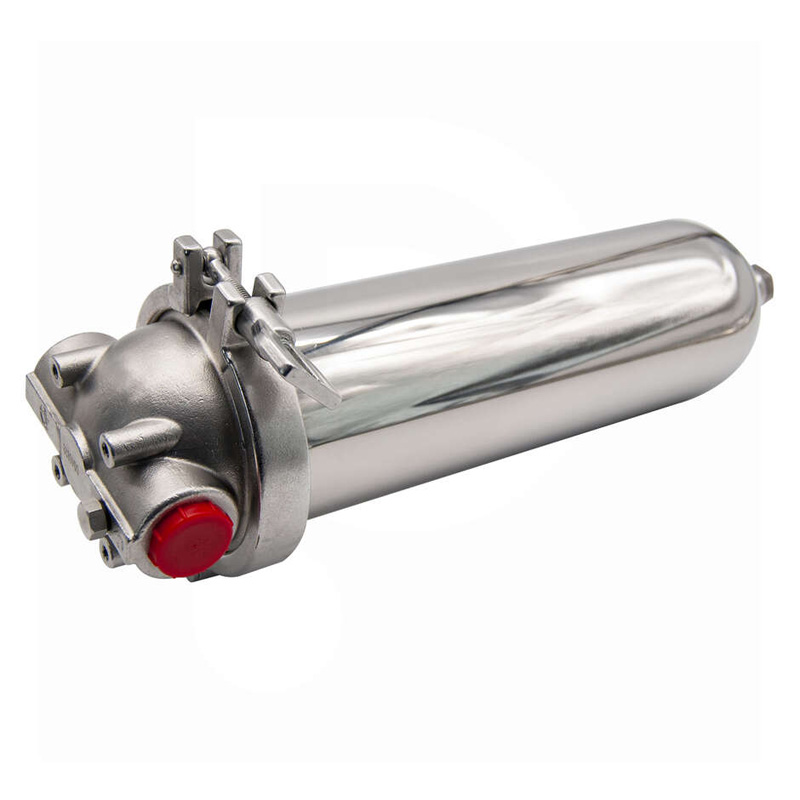

CMF10D-04 : Stainless steel filter housing for single 10/3″ filtration candle element of DOE-type | up to 400 L/h

Stainless steel filter housing for a single 10/3″ filtration candle element is a tool used in the pre-bottling stage of a beverage production process.
It is necessary tool to achieve clean beer, wine, fruit juices or other food liquids. The structure of the filter housing includes a 10″ AISI 316 stainless steel housing that guarantees maximum hygiene and safety in beverage filtration operations and ensures the removal of yeast cells and bacteria, minimising any alteration of the final product.

This filter housing has a working capacity from 100 L/h of up to 400 L/h depending on beverage kind, pump capacity and clogging the filtration elements with captured yeast and other solid particles.
The housing is designed to operate with 10″ DOE type filter cartridges.

Compact and resistant even under harsh operating conditions, the materials used in the construction of the filter housing provide a high level of filtration quality.

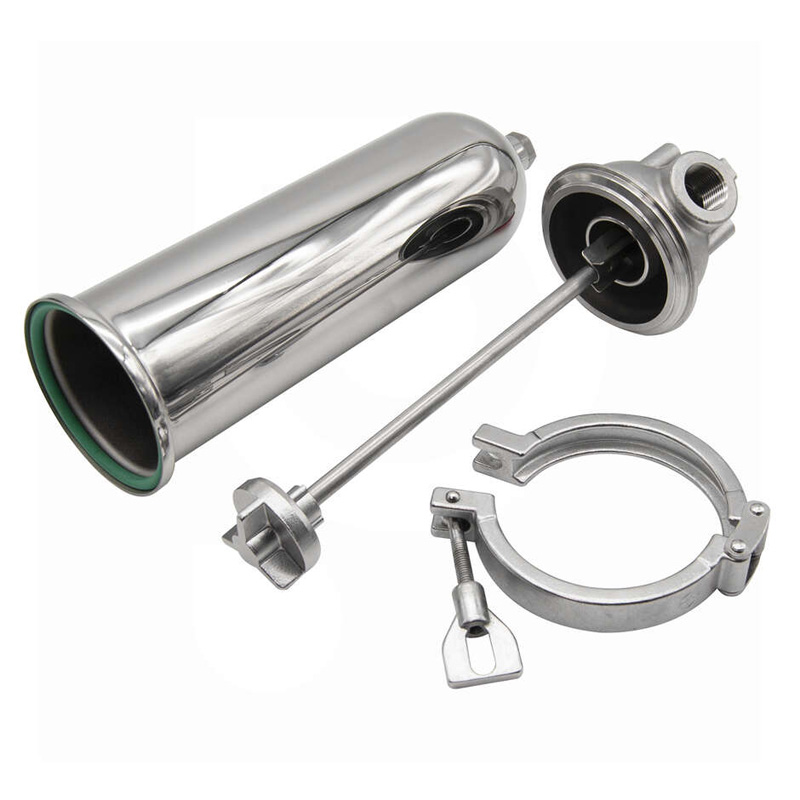

In addition, the possibility of disassembling the various components simplifies the cleaning of the equipment after use.

Technical features and parameters :

• Material: AISI 316 stainless steel
• Liquid In / Out connections: BSP 3/4″ female thread
• Filter cartridge connection type: DOE (Double Open Ended system)
• Drain: BSP 1/4″
• Venting: BSP 1/8″
• Flow rate: 100-400 L/h (depending on the filter cartridge clogging, cartridge type etc.)
• Pore size 0.1 – 10 µm (depending on the filter cartridge)
• Dimensions in mm: 118 x 151 x 318 mm
• Weight: 3.5 kg
• Volume: 1.9 Litres
• Conforms to CE safety standards
• Filter cartridge not included

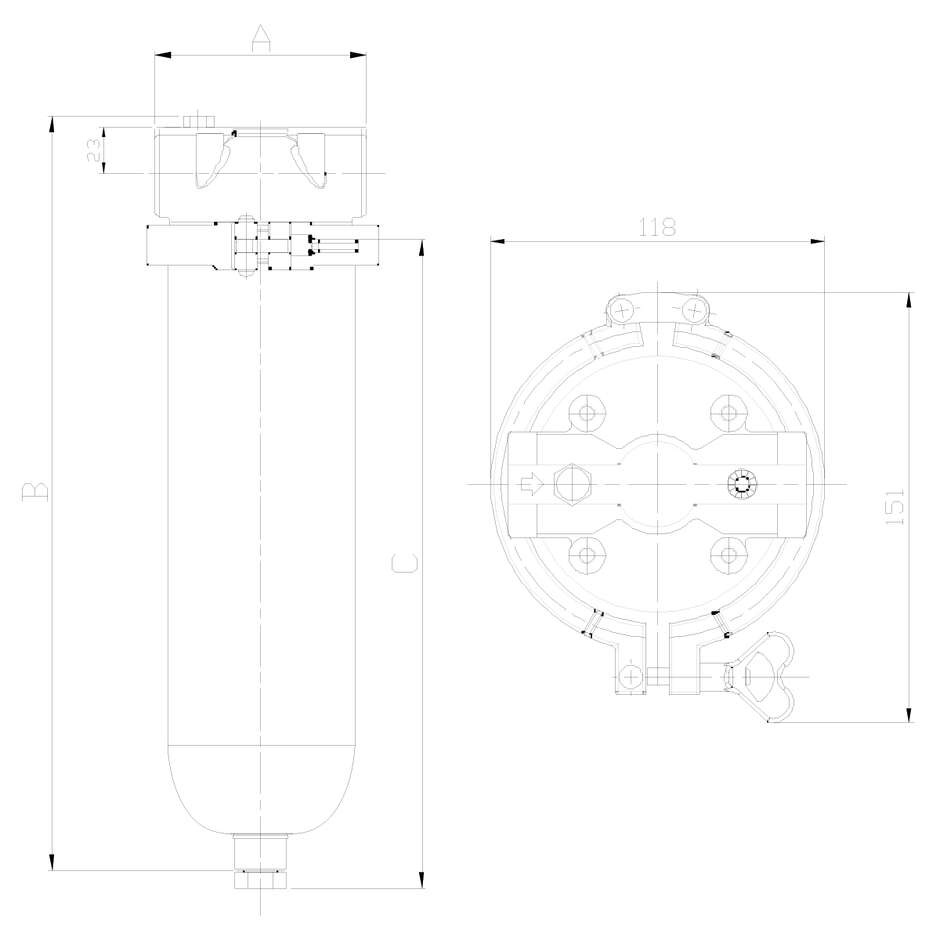

Dimensions :
