Description

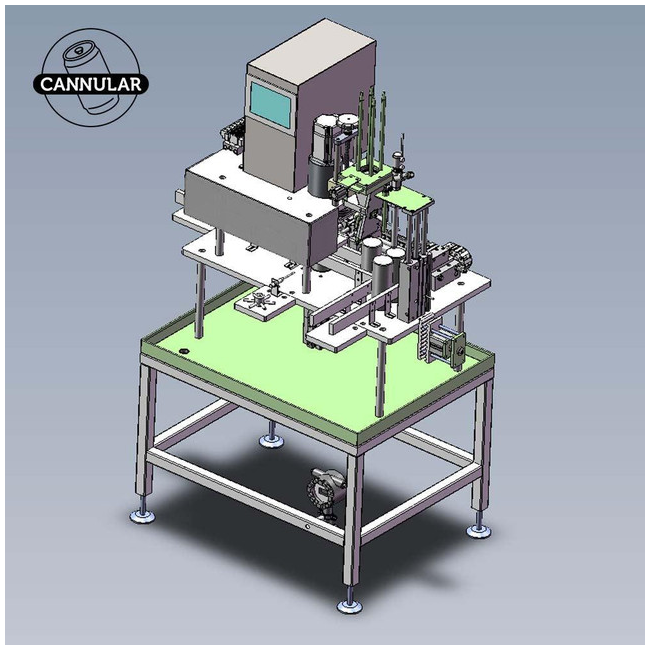

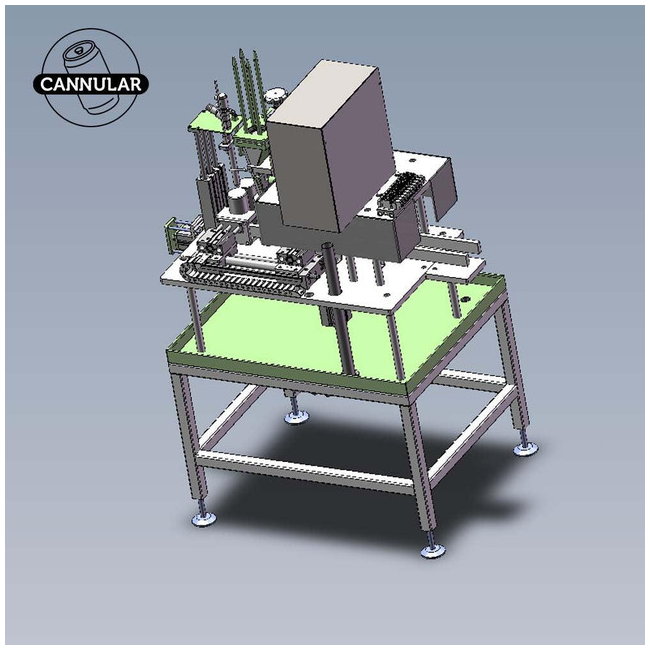

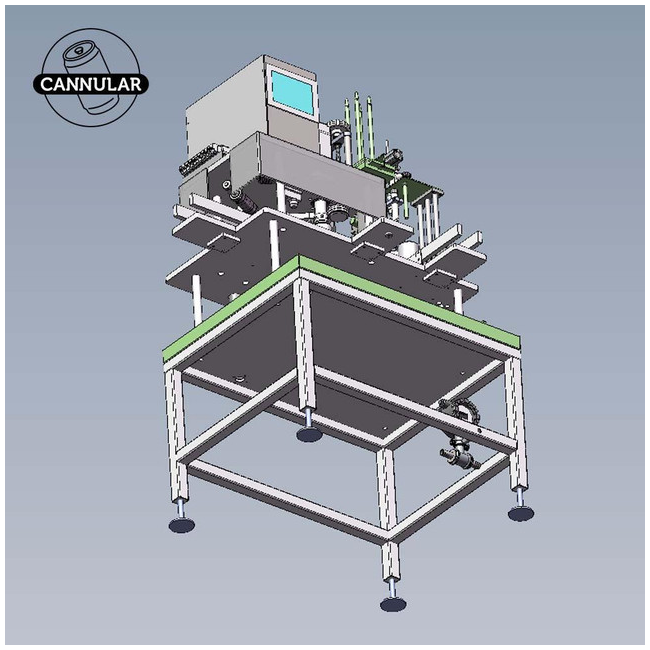

Compact machine designed to filling beer, cider or other similar beverages into aluminium cans and closing the cans with standard lids. This can filling line is able to fill and package beer into cans with speed up to 15 cans per minute (900 cans per hour) making this the highest output compact machine ever manufactured within this small dimensions.
The cheapest compact fully automatic can filling line on the World
The Cannular brand of the KegLand company launched the manual can seaming machine at the start of 2019 that was affordable and accessible to home brewers worldwide. It gave home brewers and craft brewers the ability to get start their small scale filling into cans while still maintaining very low dissolved oxygen level, perfect can seam tightness and lock in beverage quality.
Since then the Cannular machines have become the worlds most popular can filling machines ever manufactured, selling worldwide in America, Europe, UK, New Zealand and Australia. On the back of this success KegLand then has further built the Cannular brand name to develop and deliver in world market a semi automatic can filli machine and now is delighted to bring out the Cannular Full Auto – the compact can filling machine, with capacity up to 15 cans per minute or 900 cans per hour.
In essence with the whole Cannular range it depends on fundamentally simple processes and when combined with modern engineering provide an elegantly simple solution to small scale packaging the beverages.
The Cannular Fully Auto can filling line will suit a small to medium sized brewery filling into cans in volumes from 1000L and up to 5000L on one batch.
Technical specifications:
- Power supply : Single Phase 230V / 50Hz
- Supplied as standard with both chucks (B64 for 202 B64-lids, CDL for CDL-lids) that suits 202 can bodies.
- Compact size of the machine
- Easy and quick maintenance adjusting
- The compact footprint means this canning line is almost the size of a standard pallet so it can be stowed into pallet racking or wheeled out of the way easily.
Main advantages :
Compact Size
The compact footprint means this can filling line is almost the size of a standard pallet so it can be stowed into pallet racking or move it out on wheels easily.
Hardened chuck
The chucks on this machine are made from chrome steel Cr12MoV which is then coated with Titanium. This steel grade has superior hardness so it can last an extremely long time without needing to re-tune the machine or change the chuck. The hardness is 58-62 dH. manufactured if requested.
Washdown of the machine
As the machine is fairly compact its setup and wash down is extremely simple. The whole operating deck can be washed down with a hose and the chassis is mounted with oversized drip tray to catch stray drips from the filling process. The drain pipe can also be connected to sewerage so cleaning in place (CIP) can be implemented. All wet areas are made from nylon, teflon and AISI 304 stainless steel.
Maintenance of the machine
The machine is made with European pneumatics elements, electronic controllers, flow sensors and industrial grade PLC you can be confident that all components are build to last transport to the distance and they are designed to handle millions of cans before requiring an overhaul. We recommend that tolerances are checked on the rolls and chuck every 100000 cans and lubricate some of the pnuematics. Fortunately, all spare parts are supplied by KegLand so you know you will not wait too long for replacement parts if you need them. No major overhauls will be required until well over 1 milliion cans have gone through this machine. Even when that time comes the maintenance procedures are relatively straight forward and easy. Every filling unit is backed by KegLand’s legendary customer service.
Low labour cost
As this machine is relatively small and simple to run only one operator can load cans and lids into the respective hoppers and also package cans from the output of the machine. You need not more operators. Larger more complicated machines often require several operators.
Easy setup before the first use
It is important that you develop an in-depth understanding of how to setup, adjust and trouble-shoot this machine to optimise the canning process. There is a detailed start up manual and also the installation video below which guides you through the initial setup of the machine which would need to be made to get this machine in operation correctly.
Quick start manual
Quick start manual to download is here
Videos :
Introduction of the Cannular Fully Auto can filling machine :
How to set up the Cannular Fully Auto can filling machine before the first use :
