CCT-30N : Simple PE cylindrically-conical fermentation tank 30 liters

The small cylindrically-conical fermentor (CCT/CCF)  with total volume 30 liters for non-pressure fermentation of beer, cider, wine and other beverages, in several variants, made of polyethylene.

Main advantages :

• The cylindrically-conical vessel is ideal for unpressurized primary fermentation of beer, cider or similar alcoholic beverages.
• Due to its special design, the yeast collects in the cone bottom and can be collected and used again.
• Fermented beer or cider can be pumped out as a clear beverage using the upper outflow above sedimented yeast and fill it into bottles or pressure tanks for start the maturation under pressure.
• Its lid with dipping edge acts as a fermentation lock, therefore no other air lock is necessary.
• The PE ferementor is made of food safe polyethylene. Due to its smooth inner surface it is very easy to clean.

Standard equipment :

• Pure beer output fitting : BSP 3/4″ female
• Main bottom drain fitting : BSP 3/4″ female
• 2pcs of the outlet taps with valves
• Analog thermometer

Dimensions :

Optional accessories (not included in price of the tank) :

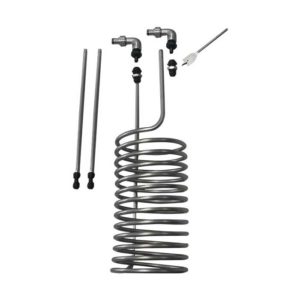

1. CCT-XXN-CS : Cooling spiral for PE fermentors CCT-XXN

Cooling spiral is a dip heat exchanger for the cooling the wort before start of the fermentation process and cooling of the frementing beer inside the PE cylindrically-conical tanks.

2. CLC-1P1200: Compact liquid chiller and heater 1.2 kW with one pump

The CLC-1P1200 GreenLine V is a compact water or glycol cooler and heater with integrated condenser. This cooling-heating unit is designed to cool or heat, with the accumulation of ice or water heating. It can be used for cooling or heating beer, ciders, freeze-drying wines. Cooling and heatong power is 1200 W (5/8 HP).
