Description
Labelling station to applying one or two self-adhesive labels (on the same reel) onto cylindric bottles with the date/batch printer

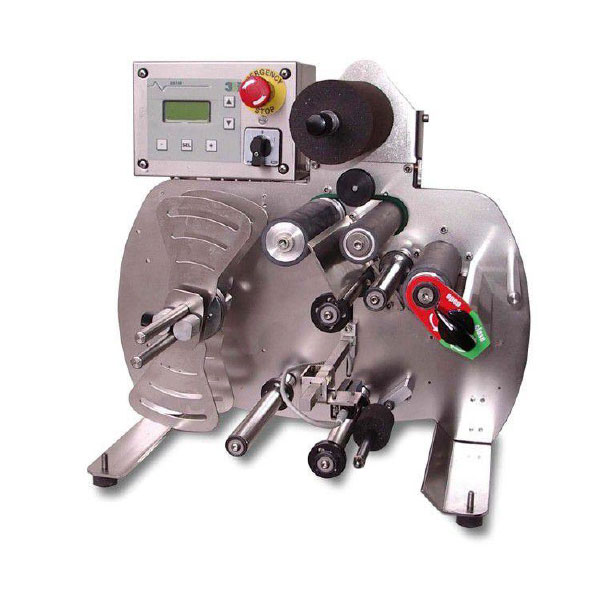

Semi automatic bench bottle labeler for autoadhesive labels, equipped with one reel station fo the application of one or two labels on cylindric bottles. The machine is equipped with the date/batch printer. Two labels are possible in case both the front label and the back label on the same reel.
This labelling machine is suitable also for containers with low mechanical resistance such as PET bottles or aluminium cans.
Output capacity up to 500 bottles per hour.
Technical data and properties :
- Type of bottle insertion: horizontal
- Container type compatibility: only cylindrical bottles
- Min/max diameter of the bottles: from 35 mm to 120 mm
- Hourly output: up to 500 bottles per hour
- Tolerance applicaton labels: +-3mm
- Number of reels with labels: one (1 or 2 labels in one cycle )
- Paper passage: 170 mm
- Maximal diameter of the reel: 280mm
- Motor type: three-phase motors
- Bottle inserting and ejection: manual
- Batch number printer: not possible
- Management of the work cycle: digital card
- Electrical power supply: 3-phase 380-420V, 50/60 Hz
- Power consumption : 0.4 kW
- Packing: Wooden pallet
- Weight netto: 40 kg without packing
- Machine on wheels: no (base trolley optionally on request)
- Work cycle is controlled with the analog electric board
- Structure in stainless steel mirror polished
- The roller rotates on a plastic bush
- The knurled roller for paper drag is not compensated by release springs
- The upper sponge roller does snot open itself flag style but vertically
- The blocking of the bottle is made by a sponge roller that also activates the labeling cycle
- Electric control panel is placed in the higher part of the machine and it includes a menu of settings
- New system for opening/closing of the knurled roller
- Photocell that reads bottle presence
Price list :
Code |
Description |
Price |
| STANDARD EQUIPMENT | ||
| 12213 | Semiautomatic bottle labelling machine for applying 1 or 2 self-adhesive labels (on the same reel) | € 5659,- |
| 36517 | Date/batch printer – Thermotrensfer printer including the installation kit | € 2813,- |
| Total price | € 8471,- | |
| OPTIONAL EQUIPMENT | ||
| 21523 | FORMAT 25/40mm – Set of parts for labelling bottles with diameter from 16mm to 25mm. Maximal allowed diameter of the reel with labels is 60mm.Including a sponge roller diameter 90mm, with bush and coupling in rubber diameter 51mm | € 130,- |
| 34667 | FORMAT 40/55mm – Set of parts for labelling bottles with diameter from 40mm to 55mm. Maximal allowed diameter of the reel with labels is 120mm. | € 130,- |
| 30093 | ROLLER RUBBER ADAPTATION – Adaptation for rubber rollers when the bottles have waterfall edge | € 130,- |
| 23056 | SPECIAL VOLTAGE – Addition for 60 Hz motorization or special voltages (for example US standard 1-phase 120V / 60Hz) | € 250,- |
| 24174 | SS TROLLEY – Stainless steel base trolley with wheels for easy move | € 886,- |
| 24363 | PACKING CRATE – Wooden crate with depth 15mm | € 312,- |
