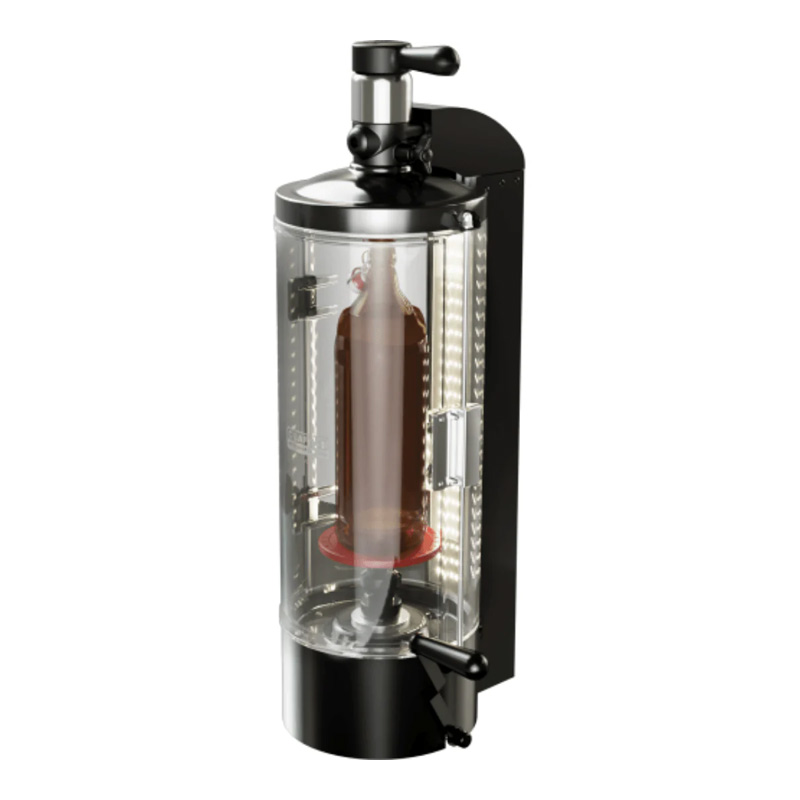

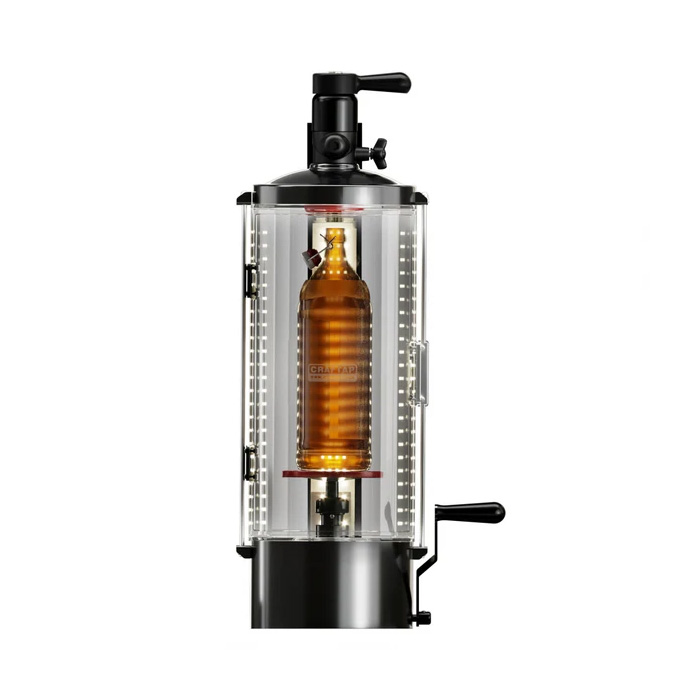

BFM-PGCU : PEGAS CrafTap ULTRA – Manual counter-pressure bottle filler

The PEGAS CrafTap ULTRA is a simple for fast and foam-free filling of draught beer or other carbonated beverages from kegs or pressure tanks into glass bottles and keeping primary beverage quality.

The PEGAS CrafTap ULTRA is designed to be installed on a bar counter (or any other horizontal surface).

For filling of several sorts with the PEGAS CrafTap Ultra you can use the PEGAS CraftPad – switching lines manifold which allows dispensing up to 6 beer sorts.

Benefits of bottling with PEGAS CrafTap ULTRA

• Negligible wastage of beer – PEGAS CrafTap ULTRA uses an unique system that allows the user to determine the amount of foam. Therefore, the user can reduce the waste (from 2 up to 0%).
• High speed performance – two liters per sixty seconds -the PEGAS CrafTap ULTRA manual system uses the same principles of beer filling as large factories around the world – a way of back pressure. This method ensures filling of bottles in the same way as automatic filling machines do – no foam and a speed of two liters in sixty seconds.
• Many types of bottles – the PEGAS CrafTap ULTRA gives the user the possibility to use a wide range of sizes and shapes of bottles. This device meets the individual needs of a company.
• Space saving – the PEGAS CrafTap ULTRA is a compact system that can be easily installed on any horizontal surface (table or bar in the brewery) – the space which is needed is only 350×350 mm, it adapts to everywhere.
• Easy operation – the PEGAS CrafTap ULTRA requires only a fifteen-minute training for each employee. The system works as a conventional beer dispense tap.

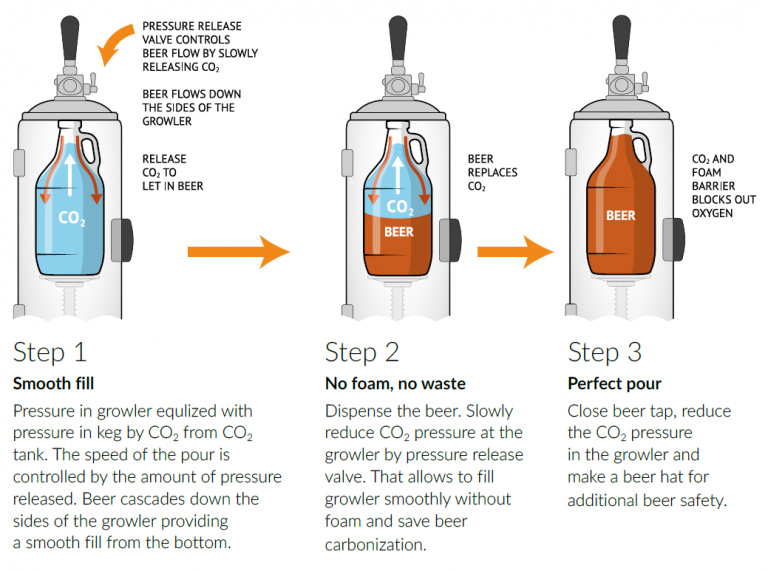

How the PEGAS CrafTap ULTRA bottle filler works :

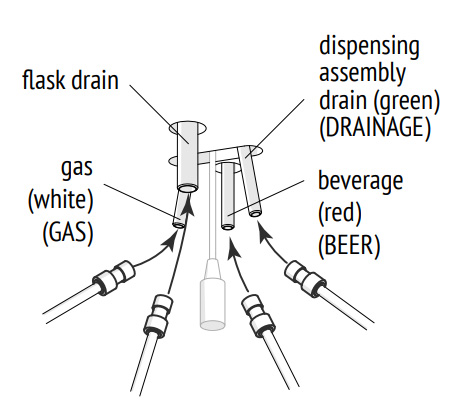

Easy connection to a keg or a pressure beverage tank with quick hose couplers :

Compatible with flexible beverage/gas hoses an outer diameter of 8mm (5/16″)

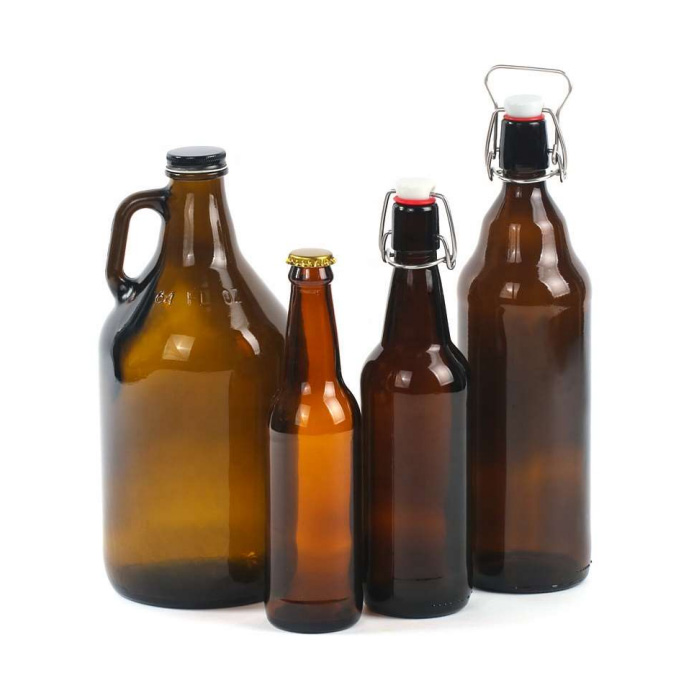

Compatibility with most glass bottles, growlers and glass jars. The bottle tray gently adjusts to a wide range of bottle heights.

Optional accessories

Short bottle adapter … € 10,-

Adapter for beer filling into small glass bottles with the PEGAS CrafTap ULTRA filling device.
