Description

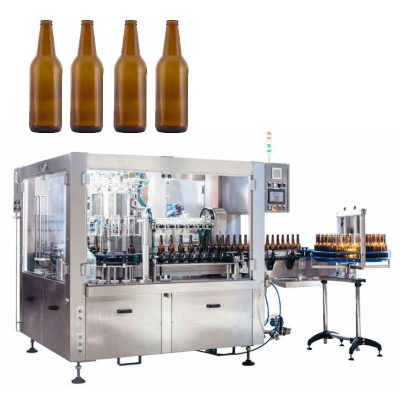

The automatic bottle filling line BFL-MB1200 is fully equipped filling technology with the production capacity up to 1200 bottles (0,33L) per hour. It consists of these components and blocks :
- Automatic monoblock machine for rinsing, filling and closing the glass bottles.
- Special CIP bottle for full cleaning and sanitizing the machine in closed circuit.
- High temperature washing kit for the hot internal cleaning of the machine at 85 ⁰C using a caustic solution.
- Linear labelling unit for application of paper labels on the bottles.
- Photocell to avoid bottle jam out in the labelling unit.
- Coder integrated into the labelling unit to printing the filling day date.
- Rotary table to inserting the bottles.
- Rotary table to full bottles accumulation before unloading (Ø800mm).
- Conveyor system to connection of all units each other.
The bottle filling line is designed to be operated only with one worker.
Main benefits of this bottle filling line
…. in comparation with similar machines of other producers
This automatic line with the rinsing/filling/capping units will make filled up to 1,200 pcs of 330ml bottles per hour. You can see the machine in operation on a video on this site bellow.
This whole bottling line in a “U-shape” conveyor system can be run with just one operator.
Unlike some other filling systems available on the market, you can easy fill different size bottles with this line. It is an extremely flexible & versatile machine.
It is simple solution when you purchase additional bottle handling parts for different bottle diameters.
Changeover time is only 10/15 minutes from one bottle format to another.
This system is also fully automatic and does not have the “manual” rinsing operation like some systems on the market do so it is a lot less labour intensive and therefore extremelly efficient.
Our fillerblocks, thanks to the electro-pneumatic control of the filling valves, offer high-speed precision filling and, in the case of beer and cider filling, minimal DO pickup levels.
Method of operation:
The glass bottle is firstly pressed on and then undergoes double pre-evacuation.
Once the pressure is the same in the filling tank and in the bottle, the filling process commences.
Once the liquid level reaches the end of the vent tube, no more gas can escape from the bottle – and the filling valve is closed.
After a settling phase, the snifting valve lowers the pressure in the bottle’s head space and the filled bottle leaves the machine.
Characteristics:
■ Reliable calculation of the fill level using the length of the vent tube
■ Low-oxygen filling process thanks to double pre-evacuation with intermediate CO² flushing
■ Closed CIP circuit
■ Hygienic design
■ Electro-pneumatically controlled filling valve functions for maximum flexibility, which is managed by the operator on the main control panel.
Scheme and dimensions of the fully equipped system for the bottle rinsing, filling, capping and labelling:
Technical parameters
| Product to be filled | Carbonated beverages like beer, cider, sparkling wine etc. |
| Type of containers | Glass bottles |
| Type of closure | Crown caps Ø 26 mm |
| Number of bottle rinsing positions | 6 |
| Number of bottle filling valves | 6 |
| Number of bottle capping heads | 1 |
| Rinsing system | with water |
| Filling system | electro pneumatic isobaric filling valves |
| Filling temperature | 0-2°C |
| Machine rotation | Clockwise, with outlet at 90° to the right |
| Pressure | Max: 2.0bar – 2.5bar |
| Bottle standard dimensions | Diameter min. 50mm/max. 100mm, height min. 180mm/max. 340mm |
| Speed adjustment | electronic, by frequency inverter |
| Recommended minimal floor space | L x W : 6000mm x 4000mm |
| Output capacity | 1200bph on 330ml glass bottles |
The bottle/can filling line consists of these main units :
I. Automatic monoblock for the rinsing and filling the bottles
A high quality monoblock machine designed to rinsing and isobaric filling the glass bottles. Long lifespan thanks to our special double degassing of oxygen, with six electropneumatic filling valves for the rinsing and filling processes.
Operation capacity:
– Up to 960 pcs of the 0.5 lt bottles per hour
– Up to 1200 pcs of the 0.3 lt bottles per hour
The machine includes :
- 6-valves rinsing unit for the bottles
- 6-valves filling unit for the bottles
- Crown caps applicator
Rinsing unit :
Rinsing unit :- Rinsing unit, supplied with six grippers with standard fixed nozzles.
- The bottle gripper pads can be easy extra-rapid assembles and disassembled.
- The bottle rinser modul is supplied with a single stage rinsing water treatment
- Electro-valve to automatic control the rinsing fluid. The valve stops the reatment fluid flow every time the machine stops and starts it at the machine re-starting.
- Manual turret height adjustment
Filling unit :
- Counter-pressure filling unit, supplied with six electropneumatic valves suitable for filling beer into glass bottles
- Manual filling turret height adjustment for use the turning turret with different bottles
- The filling turret has a tank with a mirror polished internal surface and a level control probe
- Filling level accuracy +/- 2mm
Capping unit :
The one-head automatic capping unit with maximal throughput 2.700 bottles per hour, is suitable for the application of aluminium caps on cylindrical glass bottles with diameter between 30 mm and 115mm and height from 160 to 355mm.
The crown caps (or optionally other types of the caps) are dosed through automatic vibration feeder directly on the bottles.
The capping head is operated by an electrical motor mounted on a slider with expansion pulley allowing increase or reduce the rotation speed of the threading head sinking on the caps to be closed through a special plastic cam working at the centre. Therefore distributing the loads is in a balanced way and guaranteeing a long life.
The change of the parts and the height adjustment are rapid and simple, the head lifting is mechanical and happens manually through a hand-wheel operating on the endless screw reducer; special safety devices stop immediately the machine in case of problems to avoid breakages the bottles and any other anomalies.
- Capping the bottles with crown corks on the pneumatic capping turret equipped with the large capacity crown caps feeder
- Automatic vibrating sorter, made of AISI 304 stainless steel; equipped with device for monitoring caps level in the stack
- Chute equipped with cap presence monitoring device, made of AISI 304 stainless steel
- Capping head with pressure-closing cone for permanent crown cap deformation.
- Device to removing beer foam before capping – it removes oxygen from the bottle neck.
Optional equipment (prices on request) :
- Revolving unit with two types of heads mounted on the same turret.
- Special heads for : screw corks, mushroom corks, wine corks, plastic caps.
II. Automatic machine for the labelling the bottles
Automatic bottle labelling unit for applying self-sdhesive labels. Automatic linear labelling machine equipped to apply one self adhesive label on glass bottles. For bottles with maximal diameter 300mm.
Capacity up to 1500 bottles per hour.
- Label minimum length: 10 mm
- Label maximum length: 130 mm
- Label minimum height: 10 mm
- Label maximum height: 80/120/160/240 mm
- Container minimum diameter: 40 mm
- Container maximum diameter: 130 mm
- Container minimum height: 150 mm
- Container maximum height: 370 mm
Base Frame and General Structure
- The support frame is made of welded steel profiles and is equipped with height adjustable feet.
- The top surface is a carbon steel plate, covered with AISI 304 stainless steel metal sheet.
- Inspection is possible through side doors and frame side skirting clad with AISI 304 stainless steel plate.
- Standard machine colour: RAL 7038.
- Machine prearranged to install a second labelling station in the future.
Self-adhesive labelling station
Machine equipped with one self-adhesive labelling station installed on vertical slides easy adjustable composed of:
- Stepping motor
- Drive and control microprocessor pre-disposed to operate the printing unit (optional)
- Dragging rubber roll with contrast roll mounted on springs
- Labelling tongue for labels of 80/120/160/240 mm height
- Supporting reel plate Ø 320mm equipped with unwinding shaft
- Motorized labeller paper re winder
- Bottles detection photocell
- Label detection photocell
- Drive buttons included in the group
- Box containing drive and electrical parts in stainless steel, with open able access panel complete of lock general switch
- Manual adjustable stainless-steel support system, complete of digital indicator for an easy adjustment
- Maintenance and lubrication easy and short time requiring due to the high quality of components and materials used
- The machine has been designed to have maximum accessibility for cleaning and debris removal purposes
Safety guards
- Safety guards are present along the whole base frame perimeter.
- Guards are made in AISI 304 stainless steel with transparent material windows. Openable doors are fitted with interlock type micro-switches.
- Main gear box is of crown-screw worm type and oil bath lubricated.
- Feed screw transmission systems are complete with safety electro-mechanical clutch devices to stop the machine in case of bottle jamming.
Wiping system
- Labels wiping by sponge rollers.
Machine control system
- Pneumatic plant is complete with pressure regulation unit, air filter and air lubricator.
- Main electrical panel, waterproof type, is integrated in the machine structure.
- All machine controls and status/signal lights are centralized on a single operator panel, complete with removable push-button station (emergency stop + pulse motion buttons).
- Machine infeed automatic closure in case of bottles build-back at discharge side.
- All electric and pneumatic power and control circuits are built in accordance with the latest applicable international standards.
Anticorrosion treatment
- Use of materials not subject to corrosion as stainless steel, not-ferrous alloys and plastic materials.
- Carbon steel parts undergo an anticorrosion treatment by multicoating epoxy painting.
DATE CODER
- Display : 2,8″ full color LCD
- Plug´n Play design : Hewlett Packard TIJ 2.5 printing technology
- Printable images : Alphanumeric , logo, date/time, expiry date
- Printable lines : 1,2,3,4 lines. Total line heigh is limited to 12.7 mm
- Conveyor speed : 76 meters per minute
IV. Rotary tables for the manual loading and unloading the bottles
V. Conveyors for transporting the bottles between all units
- The complete conveyors set made in AISI 304 stainless steel, with wear-proof plastic rollers and sliding profiles.
- Table top type conveyor belt, AISI 304 stainless steel (or Delrin) made.
- Bottles are guided by stainless steel plus plastic contact profiles side guard-rails, adjustable in width.
- Infeed device to space out the bottles by pneumatic lever.
- Infeed device to center the bottles before every operations with micrometric adjustment in width by hand wheel.
- Device to stabilize the bottles during the labelling and wiping with micrometric adjustment in height by hand wheel with synchronized speed to the one of the conveyors.
- The infeed gate lock device can be manually or automatically operated.
1st operation : Loading the bottles on the infeed rotary table (may be replaced with a infeed conveyor)
The bottles are manually loaded on the rotary input table, then they are automatically transported with a conveyor to the main monoblock to be ready for the rinsing, filling and capping .
The input rotary table may be optionally replaced with a conveyor that transportes the bottles from other machine.
- Infeed rotary table for manual loading the bottles – diameter 800 mm
2nd operation : Labelling the bottles
The bottles are transported with the conveyor to the labelling unit to applying self-sdhesive labels.
3rd operation : Rinsing the bottles on the rinsing turret equipped with six grippers
The bottles are spaced by an infeed snail to allow the rinser’s pincers to pick them up.
Once the bottles are in the correct position , they are picked up by the pincers and upturned to the rear section of the rinser, where they are rinsed with the water jets.
The drain water is collected via a collector under the jets, and the then may be drained away or recycled, filtered and re-used as required (optional kit extra is needed).
After the rinse cycle is completed the bottles are re-positioned onto the conveyor belt and the infeed snail moves them over towards the filling unit.
4th operation : Filling the bottles on the filling unit equipped with electropneumatic counterpressure valves
The filling unit is suitable for counter pressure filling the bottles with carbonated beverages, with CO² flushing, with a counterpressure up to 3 bars.
The feeding mechanism works in a linear step -by-step mode and moves six bottlesone after the other inside the filling unit to be positioned one bottle to each filling valve.
When all six bottles have reached their correct filling position, the pneumatic cylinders under each valve lift the bottles and put them in direct contact with the filling valves, sealing the neck.
Phases of the bottle filling process
| 1st phase | First pre-vacuumation | After the lifting of the bottle, the vacuum pump starts - exhausting air from bottle |
| 2nd phase | First CO2 injection | The vacuuming pipe is closed and the injection of CO2 starts - filling bottle with CO2 |
| 3rd phase | Second pre-vacuumation | The valve for the CO2 closes and the vacuuming pump starts - exhausting CO2 from bottle |
| 4th phase | Second CO2 injection | The vacuum pipe stays open for a very short time while the CO2 is opening and then it is closed |
| 5th phase | Filling the beverage | When the pressure inside the bottle is the same as the pressure in the upper filling tank the filling valves is open and the filling process of the bottle starts |
| 6th phase | End of filling | When the filling of the bottle is finished, after a short pause, the snift is open for degassing of the bottle |
| 7th phase | Degassing | The electro mechanical valve opens and degasses the bottle |
All of the above mention cycles are adjustable and recordable in the PLC so that they can be verified and used in future.
5th operation : Capping the bottles
- Capping the bottles with crown caps (optionaly ROPP caps) on the pneumatic capping turret equipped with the large capacity crown caps feeder
In the upper part of the lid distributor there is a revolving turret with 6 lid feeding cylinders. The cylinders can be removed and refilled as the lids are used up. The cylinders are filled up off-line ready to be installed rapidly at intervals. Each cylinder can hold up to 300 lids each, offering approximately one hour of total autonomy of production with all 6 full cylinders.
Extra kits of stainless steel cylinders are available as optional equipment to reduce stoppage time between refills.
Bottle cappping unit (crown caps ):
Bottle cappping unit (ROPP caps ) – optional :
6th operation : Washing the full bottles
The full bottles are washed to remove residual foam from the outside of the bottles.
7th operation : Unloading the full bottles from the outfeed rotary table (may be replaced with an outfeed conveyor)
The bottles are manually unloaded from the rotary output table.
The output rotary table may be optionally replaced with a conveyor that transportes the full bottles to an other machine.
Control panel (touch display) :
Remote assistance via internet service
Interactive HMI interface on OMRON PLC for onsite production progress monitoring, production management & control and remote assistance.
The system allows our technician to be directly in contact with our customers in case of problems.
The bi-directional communication between the machine and remote system permit to see in real time if the operator is working in the correct way on the touch screen, and can be used to control the machine from our side for real time intervention (if necessary, for customer´s demand).
Price list :
BASIC CONFIGURATION
|
|
| DESCRIPTION |
PRICE IN EURO |
| Automatic monoblock EPV 661 with the bottle rinsing unit, bottle filling unit, bottle closing unit + parts for one format bottle and crown caps Ø26mm | € 122 000,- |
| Bottle capping unit now included in the monoblock with parts for one bottle format and Ø26mm crown cap | included |
| Dummy bottles/cups for the CIP process – for cleaning the bottle filling valves | € 1 760,- |
| High temperature washing kit at 85 ⁰C – for CIP hot caustic solution for the internal cleaning | € 3 400,- |
| Injection of CO² into the neck of the bottle before the capping with a crown | € 2 235,- |
| Spraying device after the bottle capping operation to wash exterior surface of the bottles free of excess foam | € 1 375,- |
| Non-return valve for a beverage inlet line | € 220,- |
| Spare seals for the six filling valves | € 568,- |
| Linear self-adhesive labelling unit for wraparound labels application onto bottles | € 12 350,- |
| End of reel label – alarm | € 900,- |
| Bottle jam light signal – cooperation with the alarm | € 590,- |
| Inkjet date coder integrated into labelling unit | € 4100,- |
| Conveyor system to connect labeler & Microblock together with rotary bottle infeed table & rotary unloading bottle accumulation table Ø800mm (to allow by single man operation) | € 9900,- |
| TOTAL PRICE – Recommended configuration – the bottle rinsing/filling/capping machine with recommended basic accessories |
€ 159 398,- |
| OPTIONS FOR THE MAIN MONOBLOCK (RINSING UNIT, FILLING UNIT, CAPPING UNIT) | |
| DESCRIPTION | PRICE IN EURO |
| Set of parts to handle with additional bottle format (different diameter) | € 2 900,- |
| Six additional filling level pipes – required for each additional bottles filling level | € 360,- |
| Pneumatic stainless steel diaphragm pump with the input pipe connections | € 5 500,- |
| Parts in contact with the product in stainless steel AISI 316 (needed for handling with cider) | € 2 800,- |
| ROPP capping unit – one format 28×15 ROPP (instead the crown capping unit) | € 3 400,- |
| Modem with the Ethernet connection for remote software assistance | € 1 000,- |
| Closed circuit rinsing with buffer tank, filtration system & product relaunch pump (for rinsing with peracetic acid) | € 4 400,- |
| OPTIONS FOR THE BOTTLE CAPPING UNIT | |
| DESCRIPTION | PRICE IN EURO |
| Parts to handle with additional format diameter bottles | € 990,- |
| Caps level monitoring device in the caps feeding bowl | € 850,- |
| Device to detect the presence of the cap on the bottle at the exit of the machine | € 1 135,- |
| Injection of CO² into the neck of the bottle before the capping with a crown | € 2 235,- |
| Parts to handle withcrown corks of 29mm diameter | € 2 740,- |
Optional services :
I. Installation work on the place …. € 6650,- / 5 + 2 days
The price is valid for all countries of the European Union. The price includes five days work (+ two days travelling) of two specialists on the place – assembling and start up of the equipment.
The price does not include : transports costs and accomodation of the workers. Will becalculated individualy.
II. Installation work ensured by customer (with our remote assistance) …. € 950,- / day
Do you want to save your money ? Are you technically skilled and not afraid of challenges? Do your country’s hygienic restrictive regulations not allow a visit of a specialized technician from a foreign country? Don’t be afraid to use the remote assistance service.
How is the installation of the filling line by our customer, using our remote assistance?
1.) The customer positiones all the machines and connects them to power guided by our checklist.
2.) Once photos were sent of the completion of the preliminary phase we proceeds with the start up and commissioning.
3.) First we connects the PLC of the machine via internet to our service console in our factory — this allows our service manager to view and control your PLC on a remote screen, as if he was in front of the machine in person.
4.) We then organise a Microsoft Teams conference call, with one your worker holding the camera, and the others working around the our technician´s instructions.
5.) After only 3-5 days setting up and configuring, first full glass bottles will leave your filling line.
Video :
General sales conditions :
This document is subject to final confirmation after receipt of samples of the bottles, labels, caps, capsules and information on all raw materials to be processed. Following conditions are applicable unless otherwise stated in the above document.
1. General Principles
These terms and conditions of sale shall be applied unless otherwise specified in an agreement written by the seller and the customer (herein referred as the “Buyer”). When a Buyer sends an order, it implies full acceptance of these Conditions of Sale and supersedes any previous offers, correspondence and quotations between the Parties.
2. Sales Contract
The Seller shall be bound to abide solely by the terms specifically set forth in the present document. The Parties are bound to respect the terms of the Conditions of Sale only after the Seller has accepted the Buyer’s order in writing, in the form of a confirmation of receipt of the order.
3. Prices
Prices are “EX-WORKS”, VAT is not included. The quoted prices do not include shipping, insurance or packing. These items will be calculated separately.
Prices are established on the basis of economic and financial conditions as of the date of the quotation.
Prices are quoted for Products only and do not include technical data, or patent or proprietary rights.
4. Delivery
4.1. Delivery terms shall be calculated as of the date of the confirmation of the receipt of the order.
Delivery time is subject to receipt of the payment to deposit account, samples necessary for the construction of the equipment and technical details. In any event, if the order is suspended, after that date, for any of the following reasons such as non-payment of invoices, lack of approval of drawings, non receipt of samples or prototypes, transfer of export or import licenses, credit facilities, etc., the delivery date shall be considered as of the date said conditions are fulfilled.
4.2. The delivery date indicated by the Seller shall be considered an estimate. Unless specifically agreed otherwise by the Seller and Buyer, missing the delivery date shall not be cause for cancellation of the order or entitle the Buyer to any indemnification.
5. Force Majeure
Any conditions of force Majeure shall be cause for the Seller to suspend its commitments until said conditions shall cease to exist. The following conditions shall be considered force Majeure to the terms and conditions of sale: any unforeseeable circumstance the effects of which could not be reasonably prevented by the Seller and which are of such nature as to prevent the Seller from fulfilling its obligations.
The following conditions constitute force Majeure : fire, flood, interruption or delay in transportation, shortcomings on the part of a supplier or subcontractor, strikes of any kind, machine breakdowns, epidemy, goverment restrictions etc.
6. Insurance and Transportation
The goods shall be shipped at the buyer’s risk. The buyer shall be responsible for inspecting the goods upon arrival and, if necessary, advise the shipper of any damages. Upon receipt of specific instructions from the Buyer, shipments may be insured by the Seller who will then bill the buyer for the insurance costs.
7. Installation & Setting up
In case that assembly and start-up operations are requested, the Seller will guarantee the execution of the plant assembling and start-up in the lowest possible time, at prices indicated in the standard tariff unless otherwise specified in the present document. Seller´s technicians will start assembling work after a communication with the Buyer who confirms that the machines arrived on site in good condition, that the eventual preparing operations have been carried out and that all rooms and relative utilities in place have been finished in accordation with the Seller´s requirements (building works, piping and electric nets). It is understood that at technician/s arrival the necessary manual labour, all lifting and movement means will be at disposal as well as the necessary work-shop equipment and needed tools.
The Buyer will prepare and ensure :
• the area provided for the installation and the appropriate access routes free from stored materials or equipment;
• the necessary mains supply requirements such as water, steam, inert gas, product, electrical connections, compressed air, etc. available at the specified predetermined user points.
• the necessary handling equipment (forklifts, cranes, etc.) to discharge, to allow site positioning and handling of equipment and materials on site and the necessary personnel dedicated to such tasks.
• placing the products and all required raw materials on site in sufficient quantity for conducting the necessary equipment tests.
If the installation is not carried out or will be prolonged, due to delays whether attributable to the Buyer, then the Seller will charge the Buyer the costs related to technicians’ time at an hourly rate prescribed in our intervention tariff, and also the cost of expenses incurred for travel, food and lodging.
Furthermore, the Buyer’s staff, appointed to control and maintain the equipment, must co-operate with the Seller’s technicians for the assembling operations and to receive training.
Installation, start up and commissioning of the equipment are at the expense of the Buyer who will be charged the cost of technical assistance provided at our standard rates and terms and conditions (details provided on request and may vary depending on the country of destination).
During the commissioning of the system, the technical personnel of the Seller will carry out various routine tests on the equipment which may cause a certain amount of product loss. The Seller will not be held responsible for such losses and will not be liable for any claim of compensation.
8. Conditions for Acceptance on the part of the Buyer
8.1. Product features shall be those published in the most recent edition of the manufacturer’s specifications, unless other features are specifically agreed upon between the Seller and the Buyer.
8.2. The output capacity of the Products described in the present document result from an average calculation carried out with similar product characteristics or as a result of a theoretical calculation, unless otherwise specified. The Seller will advise the Buyer about the real effective capacity after having trialled the Product with the sample Products supplied by the Buyer. In the case that product samples are not supplied by the Buyer, the Seller shall not be responsible for properties different from the values stated in the offer.
8.3. The Seller’s goods are subject to tests and inspections in the factory where they are manufactured. The Buyer is entitled to request that the goods be inspected in his presence. If the Buyer cannot attend said inspections after having been given the agreed, advance notice of the date by the Seller, the Seller may send the
Buyer the inspection report that the Buyer will accept without discussion.
8.4. In order to be accepted to the provisions of this paragraph, all claims regarding the goods supplies shall be prepared according to the instructions provided by the Seller and contained in the documents sent with the goods.
8.5. No goods may be returned without prior authorisation from the Seller.
8.6. When a return of goods is accepted by the Seller, the Seller shall have the option to repair or replace the item(s) or to issue a credit note for the items acknowledged to be defective. In any event, the Buyer shall not be authorised to consider the return of goods, to suspend any payments due to the Seller, nor to cancel all or any part of any still pending order.
9. Payment Terms
Payments to the Seller covering price of the goods and related services supplied shall be effected according to the conditions set forth on the present quotation or order confirmation and the invoice. In the event the purchaser does not pay an invoice or part of it, the Seller shall be entitled, without prejudice to its other rights, to suspend all deliveries, irrespectively of the terms of the order(s) until full payment is received.
10. Title
Notwithstanding the effected delivery to the purchaser, the goods shall remain the property of the Seller until full payment is received. In the event that the purchaser does not effect payment by the established date, the Seller may repossess back already the delivered goods. In any event, as specifically stipulated, the purchaser shall be responsible for all damages and losses that may occur after delivery.
11. Warranty
The Seller engages to try solving all eventual defects coming from designing, production and assembling defects, guaranteeing the regular running of the supplied equipment for a period of 12 months from the date of shipment, if not agreed different time.
The warranty does not include normal wear and tear , and break downs due to an incorrect or improper use, to lack of diligent maintenance and to the non observance of technical descriptions as well as instructions indicated on the hand books which will be supplied to the Buyer. Warranty is limited to mechanical parts which are not subject to wear and does not include electric and electronic components, as per international guarantee regulations. Defective parts under guarantee must be returned to the Seller for examination and assessment of the defect, for the Buyer´s costs.
Replacement of damaged parts will occur after the manufacturer’s examination and confirmation of the damage of the returned defective component.
Replacing the components with non original parts by the Buyer or his customer shall invalidate the warranty unless such replacement has been specifically permitted by the Seller in writing. Spare parts supplied under guarantee are delivered free of charge EX-WORKS. All expenses for shipment of such parts from EX-WORKS to destination, including our technician’s travel, food and lodge are at customer charge. The Seller’s own technician labour for installation of spare parts under guarantee is free of charge. Any intervention carried out on the Seller’s equipment by the Buyer or by third party technical personnel are only for customer’s charge and responsibility. Modifications or interventions on the equipment may invalidate the guarantee terms unless explicitly authorised by the Seller.
12. Transfers
By virtue of this document, any transfer by the purchaser of any contract without prior makes agreement from the Seller shall render the contract null and void and shall relieve the Seller of any future obligations.
13. Court of Jurisdiction and Applicable Laws
In the event of judicial proceedings, the rights, obligations and claims of both parties will be decided by a court in a European country and city chosen by the Seller, irrespectively of the agreed upon terms of sale and payment, as well as warranty problems or in the event of multiple defendants.
The agreement and any difference or dispute arising out of it or related to it shall be governed, construed and interpreted in accordance with the Laws of Czech Republic. If any dispute, difference in opinions or question shall arise between the Parties under or in connection with the Contract, including any dispute on the validity of the Contract, such dispute, difference or question shall be finally settled by arbitration under the Rules of Arbitration of the Ministry of commerce of Czech Republic as in force and effect at the date hereof by one or more arbitrators appointed in accordance with the said Rules. The language to be used in the arbitrate proceedings shall be English. The seat of arbitration shall be Opava, Czech Republic. The decision of the arbitrators shall be final and conclusive and shall be binding on the Parties.
14. Compliance with Safety Regulations
The Equipment is built according to the European CE regulations. It is the duty of the Purchaser to inspect all Products and to provide proper safety devices to safeguard the operators from harm and to ensure compliance with all Safety Regulations. By accepting the “Order Confirmation”, the Purchaser acknowledges and agrees that the goods may not include or require the necessary safety equipment to permit safe operation or comply with Local, State, Federal, Industry and/or other applicable Safety Standards or requirements which may be different from the CE regulations. Before placing the equipment in operation the Buyer agrees to utilise such safety equipment and will give operators such instructions and/or warnings as necessary to permit safe operation and to comply with Local, State, Federal, Industry and/or other applicable Safety Standards or requirements. Purchaser further agrees to indemnify and hold Seller and their officers, employees harmless from any and all liability which may be imposed upon Seller and any and all costs, including attorney fees, incurred as a result of any claim made against Seller for injury arised out with the Products, that was caused or contributed to by purchaser’s or user’s failure to provide safety equipment and/or instructions and/or warnings necessary to operate this Products safely.
15. Instruction manuals:
The instruction manuals, assembly manuals, operation manusls, maintenance manuals are supplied exclusively in English language.
Reviews
There are no reviews yet.
