Gas generators of hot steam for heating of brewhouse wort machines, water tanks, fermentors, CIP stations. Intended also fot the sterilization of stainless steel kegs and vessels, pipe systems and food hoses.

GSG-50 Gas steam-generator 50kg/hr
GSG-50 Gas steam-generator 50kg/hr
GSG-50 Gas steam-generator 50kg/hr

Automatic gas steam-generator, available power 33.5 kW – The production capacity from 25 to 50 kg of hot steam per hour. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 4.5 bar. This steam-generator is equipped with gas burner RIELLO RS 4DF MBZRDLE 412g – gas inlet pressure 2-36 kPa. The steam-generator shell is manufactured in accordance to the current PED regulations.

not rated  21 490 excluding tax Add to Cart
GSG-100 Gas steam-generator 100kg/hr
GSG-100 Gas steam-generator 100kg/hr
GSG-100 Gas steam-generator 100kg/hr

Automatic gas steam-generator, available power 75 kW – The production capacity from 50 to 100 kg of hot steam per hour. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 4.7 bar. This steam-generator is equipped with gas burner RIELLO RS 4DF MBZRDLE 412g – gas inlet pressure 2-36 kPa. The steam-generator shell is manufactured in accordance to the current PED regulations.

not rated  22 286 excluding tax Add to Cart
GSG-150 Gas steam-generator 150kg/hr
GSG-150 Gas steam-generator 150kg/hr
GSG-150 Gas steam-generator 150kg/hr

Automatic gas steam-generator, available power 113 kW – The production capacity from 75 to 150 kg of hot steam per hour. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 5.0 bar. The steam-generator shell is manufactured in accordance to the current PED regulations. The steam-generator shell is manufactured in accordance to the current PED regulations.
Made in Italy

not rated  24 329 excluding tax Add to Cart
GSG-200 Gas steam-generator 200kg/hr
GSG-200 Gas steam-generator 200kg/hr
GSG-200 Gas steam-generator 200kg/hr

Automatic gas steam-generator, available power 151 kW – The production capacity from 100 to 200 kg of hot steam per hour. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 and 4.7 bar. This steam-generator is equipped with gas burner RIELLO RS 4DF MBZRDLE 412g – gas inlet pressure 2-36 kPa. The steam-generator shell is manufactured in accordance to the current PED regulations.

not rated  26 449 excluding tax Add to Cart
GSG-300 Gas steam-generator 300kg/hr
GSG-300 Gas steam-generator 300kg/hr
GSG-300 Gas steam-generator 300kg/hr

Automatic gas steam-generator, available power 226 kW – The production capacity from 150 to 300 kg of hot steam per hour . Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 and 4.7 bar. This steam-generator is equipped with gas burner RIELLO RS 4DF MBZRDLE 412g – gas inlet pressure 2-36 kPa. The steam-generator shell is manufactured in accordance to the current PED regulations.

not rated  28 555 excluding tax Add to Cart
GSG-350 Gas steam-generator 350kg/hr
GSG-350 Gas steam-generator 350kg/hr
GSG-350 Gas steam-generator 350kg/hr

Automatic gas steam-generator, available power 263 kW – The production capacity from 175 to 350 kg of hot steam per hour.. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 4.7 bar. This steam-generator is equipped with gas burner ZP ELTO – gas inlet pressure 2-36 kPa. The steam-generator shell is manufactured in accordance to the current PED regulations.

not rated  29 633 excluding tax Add to Cart
GSG-350-10 Gas steam-generator 350kg/hr 10bar
GSG-350-10 Gas steam-generator 350kg/hr 10bar
GSG-350-10 Gas steam-generator 350kg/hr 10bar

Automatic gas steam-generator, available power 250 kW – up to 350 kg of hot steam per hour / up to 10bar.  Regulation of the working steam pressure is adjustable in range from 1 to 10 bar. Compact design including the SPECK power unit. The machine complies with EU Directive 97/23 EC (PED) and Module H1, CE

not rated  38 469 excluding tax Add to Cart

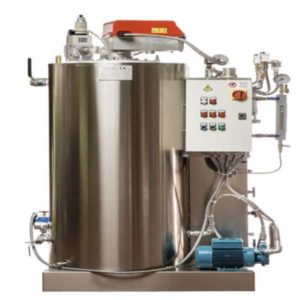

GSG-500 Gas steam-generator 500kg/hr
GSG-500 Gas steam-generator 500kg/hr
GSG-500 Gas steam-generator 500kg/hr

Automatic gas steam-generator, available power 378 kW – The production capacity from 250 to 500 kg of hot steam per hour. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 5 bar (7 bar max). This steam-generator is equipped with gas burner RIELLO RS 4DF MBZRDLE 412g – gas inlet pressure 2-36 kPa. The steam-generator shell is manufactured in accordance to the current PED regulations.

not rated  32 733 excluding tax Add to Cart
BR-GSG-1000 Boiler room with the Gas steam-generator 1000kg/hr
BR-GSG-1000 Boiler room with the Gas steam-generator 1000kg/hr
BR-GSG-1000 Boiler room with the Gas steam-generator 1000kg/hr

Fully equipped boiler room with the automatic gas steam-generator, available power 700 kW. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 16 bar. The machine complies with EU Directive 97/23 EC (PED) and Module H1, CE

not rated  67 571 excluding tax Add to Cart
GSG-1000VPS Gas steam-generator 1000kg/hr – vertical package system
GSG-1000VPS Gas steam-generator 1000kg/hr – vertical package system
GSG-1000VPS Gas steam-generator 1000kg/hr – vertical package system

Automatic gas steam-generator GSG-1000 – The production capacity from 500 to 1000 kg of hot steam per hour : Vertical package system – available power 700 kW. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 16 bar.
The machine complies with EU Directive 97/23 EC (PED) and Module H1, CE

not rated  61 429 excluding tax Add to Cart
BR-GSG-1500 Boiler room with the Gas steam-generator 1500kg/hr
BR-GSG-1500 Boiler room with the Gas steam-generator 1500kg/hr
BR-GSG-1500 Boiler room with the Gas steam-generator 1500kg/hr

Fully equipped boiler room with the automatic gas steam-generator, available power 1048 kW. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 16 bar. The machine complies with EU Directive 97/23 EC (PED) and Module H1, CE

not rated  78 403 excluding tax Add to Cart
GSG-1500VPS Gas steam-generator 1500kg/hr – vertical package system
GSG-1500VPS Gas steam-generator 1500kg/hr – vertical package system
GSG-1500VPS Gas steam-generator 1500kg/hr – vertical package system

Automatic gas steam-generator GSG-1500 – Vertical package system – with power 1048 kW (from 750 to 1500 kg of hot steam per hour), steam pressure in range from 1 to 16 bar.
Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable in range from 1 to 16 bar.
The machine complies with EU Directive 97/23 EC (PED) and Module H1, CE

not rated  71 276 excluding tax Add to Cart
GSG-LPK LPG-kit propan for gas steam-generators
GSG-LPK LPG-kit propan for gas steam-generators
GSG-LPK LPG-kit propan for gas steam-generators

Special accessories for gas steam-generators. This kit ensures using of the GSG with LPG (propan gas).

not rated  499 excluding tax Add to Cart
