Description
The wort aeration candle is an equipment necessary for beer production process. The wort aerator serves to saturation wort with oxygen (or sterile air) after the wort brewing process, before the beer fermentation. Wort must be at temperature needed for start of the fermentation process before the aeration. We offer the wort aerator in four dimensions, with all usual combinations of sanitary couplers.
- Material – body and pipes : Stainless steel AISI 304
- Material – saturation stone : Polyethylene (plastic porous material)
- Working temperature : from –5 °C up to +100 °C
- Sanitation temperature : 120 °C (maximaly 10 minutes)
- Working pressure (liquid) : 0-6 bar (0.0 – 0.6 MPa)
- Working pressure (oxygen) : 0-6 bar (0.0 – 0.6 MPa)
Connections :

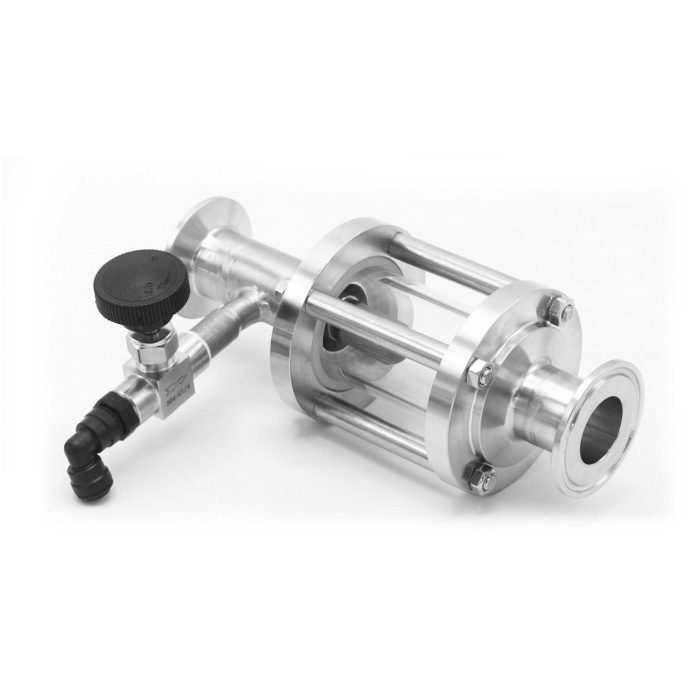

Version of TriClamp (DIN 32676)
| Media | Type | Pipe inner diameter |
| Wort input | DIN 32676 TriClamp | DN50 (Disc D=64mm) |
| Wort output | DIN 32676 TriClamp | DN50 (Disc D=64mm) |
| Oxygen inlet | Quick Hose Coupler (JG / DM) | 8.0mm (5/16″) / Optionaly 9.5mm (3/8″) |

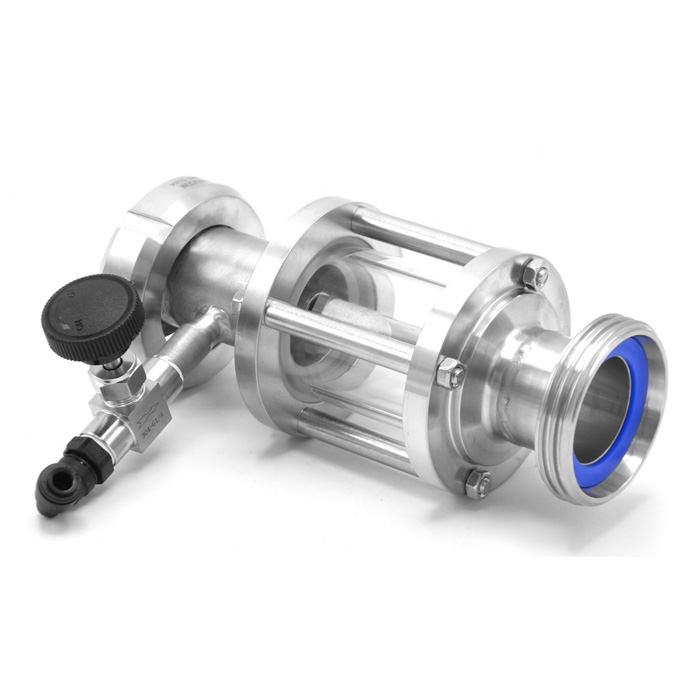

Version of Dairy Coupling (DIN 11851)
| Media | Type | Pipe inner diameter |
| Wort input | DIN 11851 Dairy Coupling (Male or Female connection) | DN50 |
| Wort output | DIN 11851 Dairy Coupling (Male or Female connection) | DN50 |
| Oxygen inlet | Quick Hose Coupler (JG / DM) | 8.0mm (5/16″) / Optionaly 9.5mm (3/8″) |
This equipment is not suitable for the saturation beverages with carbondioxide or nitrogen.
Spare parts :
| Code : | Description : | Price : |
| WAC-PEST | Polyethylene saturation stone | € 15,- |
| WAC-GPRV | Gas pressure reduce valve (AISI 304 / plastic knob) | € 25,- |
| WAC-GL25 | Spare borosilicate glass for the straight sight glass DN50 (diameter of 64 mm) | € 25,- |
| WAC-QHC80 | Hose Quick Coupler for the oxygen hose (for hose with external diameter of 8.0mm (5/16) | € 6,- |
| WAC-QHC95 | Hose Quick Coupler for the oxygen hose (for hose with external diameter of 9.5mm (3/8) | € 6,- |
