PHE-MX43-30 : Maxi 43 plate heat exchanger with 30 dismountable plates | AISI 304

The PHE-MX43-30 Maxi 30-plate heat exchanger is designed to meet the needs of manufacturers looking for a high quality product that facilitates heat transfer from one fluid to another. The heat exchanger is suitable for professional use thanks to the dismountable design, possibility of chemical cleaning and stainless steel material.

Technical parameters and equipment :

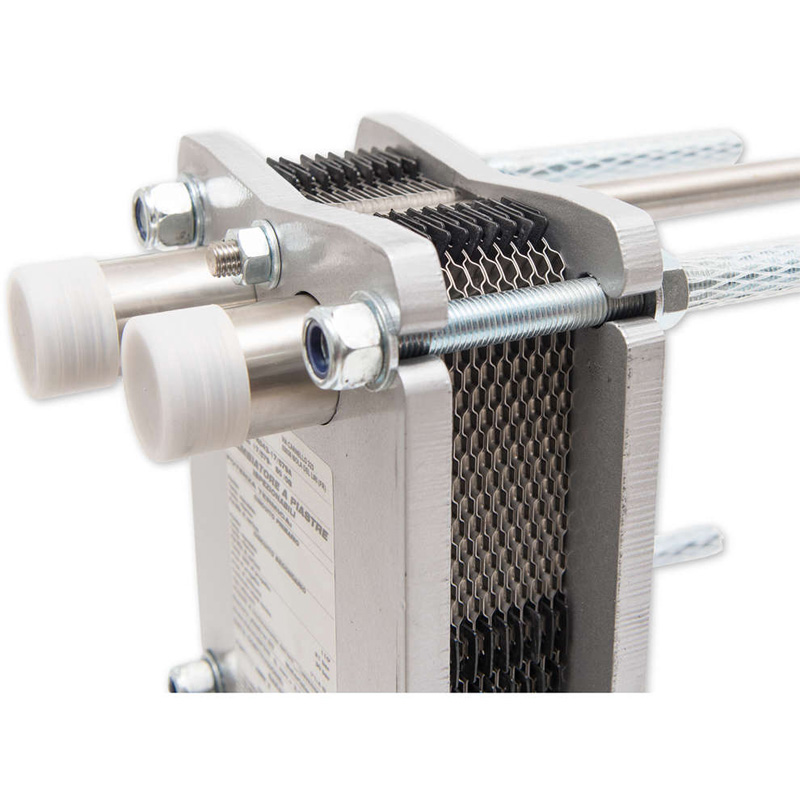

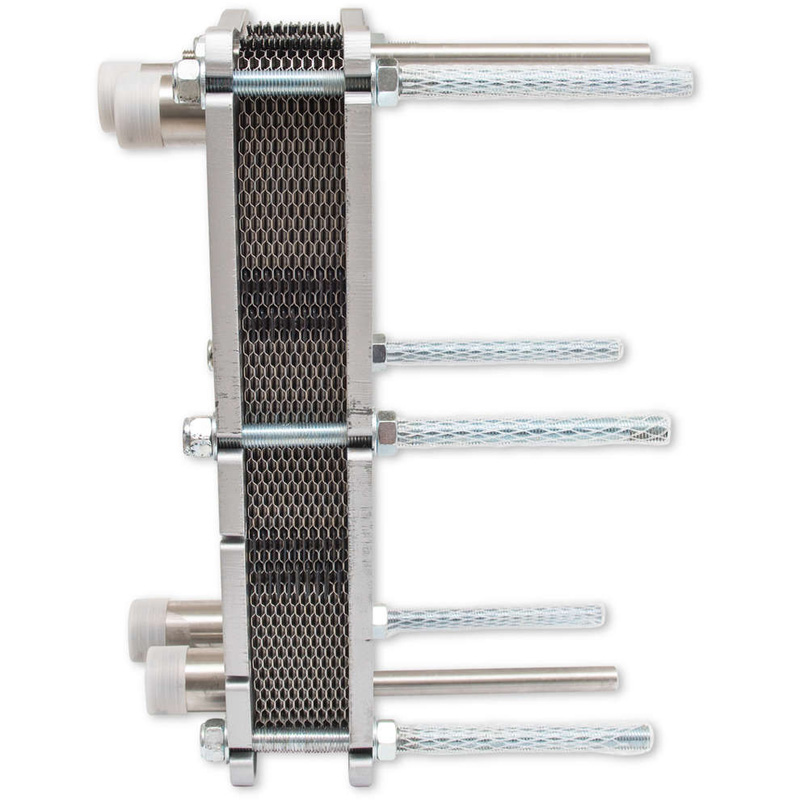

• The Maxi 43 heat exchanger has 30 dismountable plates for easy cleaning. The total weight of the frame is 23 kg, the diameter of the pipe connections is 1″¼.
• Heat exchange takes place through the stainless steel plates of the exchanger, without mixing the two fluids.

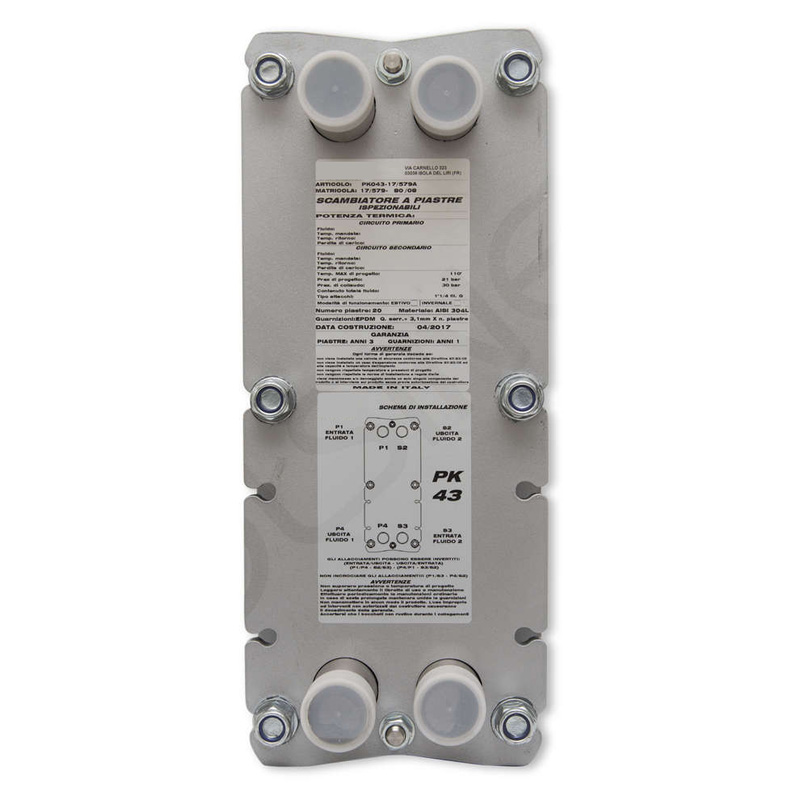

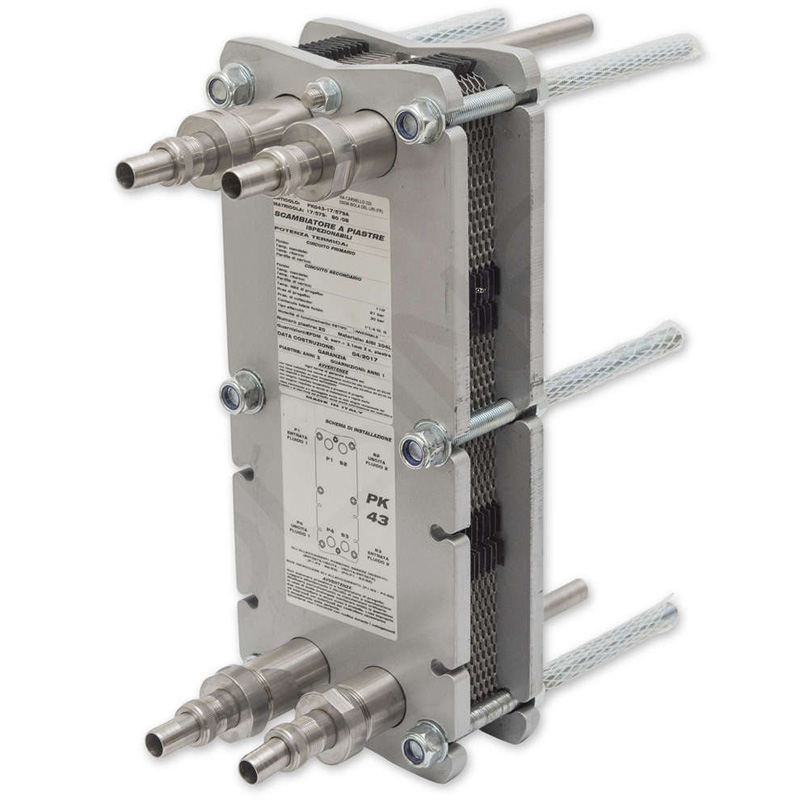

• As standard, it is equipped with 4 stainless steel 1″ ¼ male connections with reducers on DIN 25 with nuts and 4 stainless steel DIN 25 male connectors reduced to hose mandrels PG20 (for 3/4″ hoses)
• The maximum operating pressure is 10 bar.
• The liquid content per channel (valid for each plate) is 0.2 litres.
• The product complies with European Directive 97/23/EC (PED) for pressure devices.

Characteristics :

• Connections for 1st liquid (in / out) : BSP 1″ ¼ M
• Connections for 2nd liquid in / out) : BSP 1″ ¼ M
• 4 reducers : BSP 1″ ¼ F > DIN 25 F (with nuts)
• 4 reducers : DIN 25 M > Hose Mandrel PG20 (for 3/4″ hose)
• Maximum operating pressure: 10 bar
• Plate surface: 0.043 m²
• Content per channel: 0.2 litres
• Total weight of frame: 23 kg
• Number of stainless steel plates: 30 pcs (it is possible easily to remove and exchange the damaged plates for new spare plates)
• Conforms to European Directive 97/23/EC for pressure equipment
• Material : AISI 304 stainless steel
