DBTHI-500S Serving tank 500L “bag-in-box”, horizontal, insulated, stainless-steel

 6221 6825 excluding tax

The Draft Beer Tank DBTHI-500S is a cylindrical pressure container with usable volume 500 liters for storage and serving of beer. This vessel is mounted on two saddle supports. It is equipped with safety valves and pressure valves.

There is an eliptical manhole with an overpressure door on the bottom of the tank. It is designed for mounting of removable polyethylene bag. Beer is filled into the bag.  This is a modern beer storage technology – the BAG IN BOX. system.

This tank is equipped with insulation and glycol cooling channels. It is designed for cooling by cold water or glycol. For cooling of beer is necessary to connect it to water (or glycol) cooler with cooling medium circulation pump.

Clear selection
DISCOUNTS : 2% discount for ordering from 4 to 8 pieces. 4% discount for ordering 9 or more pieces.

Description

Print Friendly, PDF & Email

The Draft Beer Tank DBTHI-500S is a cylindrical pressure container with usable volume 500 liters for storage and serving of beer. This vessel is mounted on two saddle supports. It is equipped with safety valves and pressure valves.

beer-bag-in-boxThere is an eliptical manhole with an overpressure door on the bottom of the tank. It is designed for mounting of removable polyethylene bag. Beer is filled into the bag. This is a modern beer storage technology – the BAG IN BOX. system.

There are also two glass visors with armored glass for visual inspection of the contents of the tank.

This tank is equipped with insulation and glycol cooling channels. It is designed for cooling by cold water or glycol. For cooling of beer is necessary to connect it to water (or glycol) cooler with cooling medium circulation pump.



Characteristics of BAG IN BOX. beer storage system :

  1. Beer is storaged in the PE bag which fills all inner space of the tank.
  2. The bag is exchanged before each filling.
  3. Sterile bag ensures still a high quality of beer.
  4. Beer is forced out from the tank by pressed air which acts on the outside of the bag. PE foil works as barrier between air and beer.
  5. We offer the BEERDRIVE system that is one of the most known bag in tank systems in Europe.

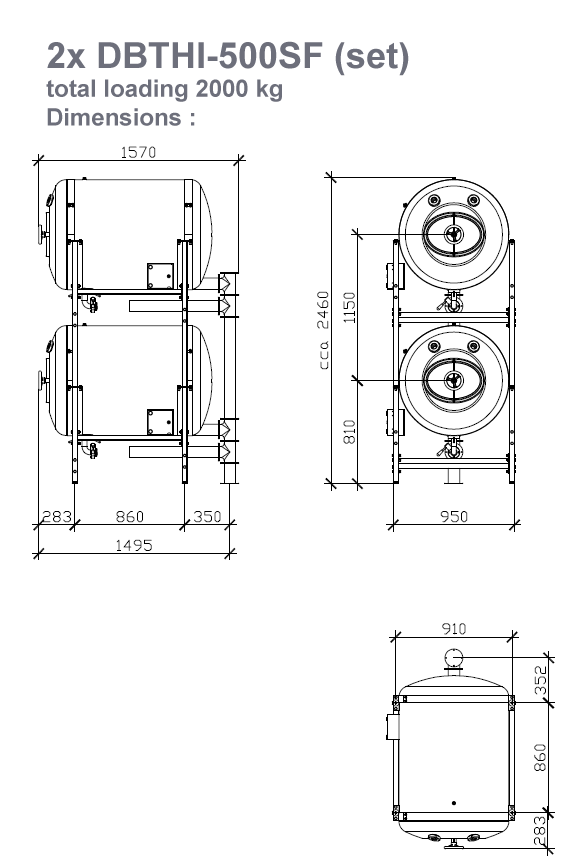

Possible layouts of the DBTHI tanks using support frames :



DBT-500_J1



DBT-500_J2

DBT-500_J3

DBT-500_J4

DBT-500_J4

DBT-500_T1



DBT-500_V2

DBT-500_V3



Technical parameters :

Usable volume … 500 liters

Total volume … 520 liters

Highest work overpressure 3 bar

Manufacturing test pressure … 4.5 bar

Highest work temperature … 20°C

Lowest work temperature … 5°C

Work medium … beer, cider, other beverages / air / CO2 / glycol or water



Dimensions (without frames) :

Lenght … 1300 mm

Diameter … 780 mm

Weight … 160 kg



DBTHI-500S includes in standard :

Draft beer stainless steel tank for 500 liters of beer (or other beverage)

Cooling channels (duplicators) for cooling medium (water or glycol)

PU insulation

Stainless steel jacket

Manhole with eliptical door

2 pcs glass visors with armored glass



Pipe connections :

  • Pipe coupler for output of beer : DN32 DIN11851 (male)
  • Pipe coupler for input of pressured air : BSP 5/8″ (male)
  • Pipe coupler for input of cooling water : BSP 5/8″ (male) + Reduction for beverage hose D=12.7mm (1/2″)
  • Pipe coupler for output of cooling water : BSP 5/8″ (male) + Reduction for beverage hose D=12.7mm (1/2″)



Ovepressure and safety equipment

  •  distribution cube
  •  manometer
  •  safety valve 3.0 bar



Material

Stainless steel for food , resist against sanitizing solutions … AISI 304. We can deliver an European certificates for all materials.

The DBTHI-500S is a pressure equipment which is manufactured in accordance with the provisions of the Directive of the European Parlament and of the Council of the European Union PED 2014/68/EU (EC).
