Description

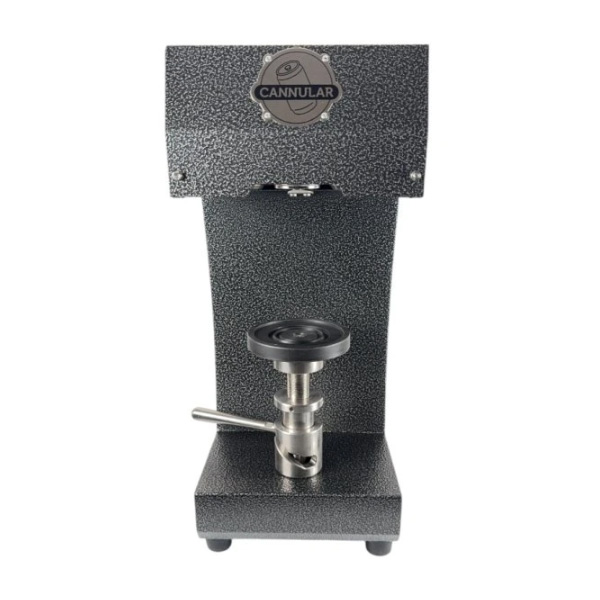

The Cannular Pro is one of the most compact and easy to use benchtop can closure machines around. A single operator can seam/seal the cans in under 5 seconds meaning this compact machine is suitable for small breweries or brewpubs doing small production runs.
Beer in cans has some important advantages as opposed to beer in bottles: less risk of oxidation and 100% protected from light, so no lightstruck off-flavour due to UV rays penetrating the beer.
Thanks to its favourable price-quality ratio, the Cannular Pro is the choice for both advanced hobby brewers as well as commercial micro breweries. Every can is claosed in a few seconds already. What’s more, cans offer endless possibilities for personalisation. The compact Cannular Pro machine is also extremely easy to use.
The machine is suitable to closing of standard beverage aluminium cans with volume of 0.33L or 0.50L, with ends CDL (202). Other formats are not supported. Delivered with head for EU cans 0.33L and 0.50L.
Technical parameters :
Voltage： 24V (12amps)
Power： 250W
Rated Speed : 3300 RPM
Gearbox Ratio: 9.8 : 1
Power Plug： Anderson Type 40A
Can Height： 45-170mm
Can Diameter： 35-75mm
Type of the can end : Standard CDL202 connection
Dimensions (L x W x H): 41 x 25 x 54 cm
ATTENTION:
Attention : This machine is designed for small breweries or brewpubs doing small production runs. It is not designed for continuous work many several hours a day in a big commercial brewery.
We are not responsible for incompatibility with non-standard cans. When you use other cans, for example with Visy/CDLE ends from the Ardagh Group, you will need the separately available Visy chuck.
Please note:
When you receive your Cannular the rollers have been set and tested at the factory. They should not need adjustment for 100,000 cans. The table, however, comes unadjusted and getting it set up correctly is very important to getting a proper seal. Producer´s test show that a .4 mm (.015″) actual overlap is all that is needed to seal to 90 PSI. The proper table tension takes a little practice and expect to waste a few cans getting it dialled in.
The Cannular Pro machine is delivered with :

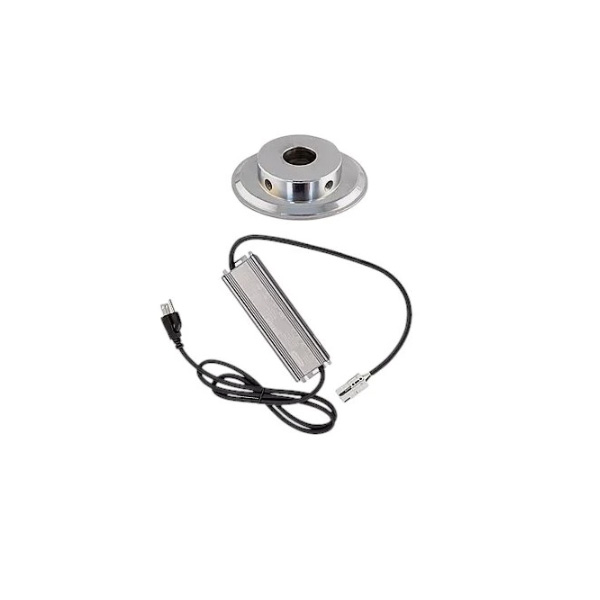

The original power adapter 24 V
The Cannular Pro can closing machine is delivered with an original power adapter (1phase 230V/50Hz to 24 V) and . This power adapter is optimised for the Cannular Pro and is sufficiently powerful and safe to use in wet environments, without the risk of electrocution (only safety voltage 24 V is in output).
Optional equipment :

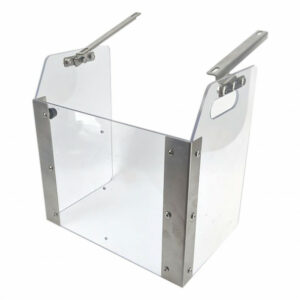

The Splash Guard (the plexi glass protective cover ) … + € 69,-
The Splash Guard (the plexi glass protective cover ) can be included in delivery too. During the can closing process you may spill a bit of beer. The Splash Guard catches it and keeps your workspace clean. The plexi glass protective cover also protects your eyes in case the metal part flies away from the can.
