Description
This complete set is designed for ConPro stainless steel fermentation tanks. The pressurizing set provides full control over the fermentation process and beer bottling. It allows both traditional bottling of beer from tanks by hose using gravity, and pushing beer out of the tank under pressure using CO₂ gas, which preserves the natural carbonation of beer and protects beer from oxidation.
The set includes a fermentation apparatus for precise pressure control during fermentation, a float with a hose for pumping beer from the cleanest upper layer, TriClamp connections, a Ø10 mm hose mandrel, Ball Lock rams and the necessary seals. Thanks to this, beer bottling will always be clean, fast and safe.
The pressurizing set for ConPro stainless steel fermenters is ideal for both home brewers and smaller breweries who want to achieve professional results and be sure that their beer remains fresh, clear and free from unwanted oxidation.
The pressurizing set for the ConPro tanks consists of

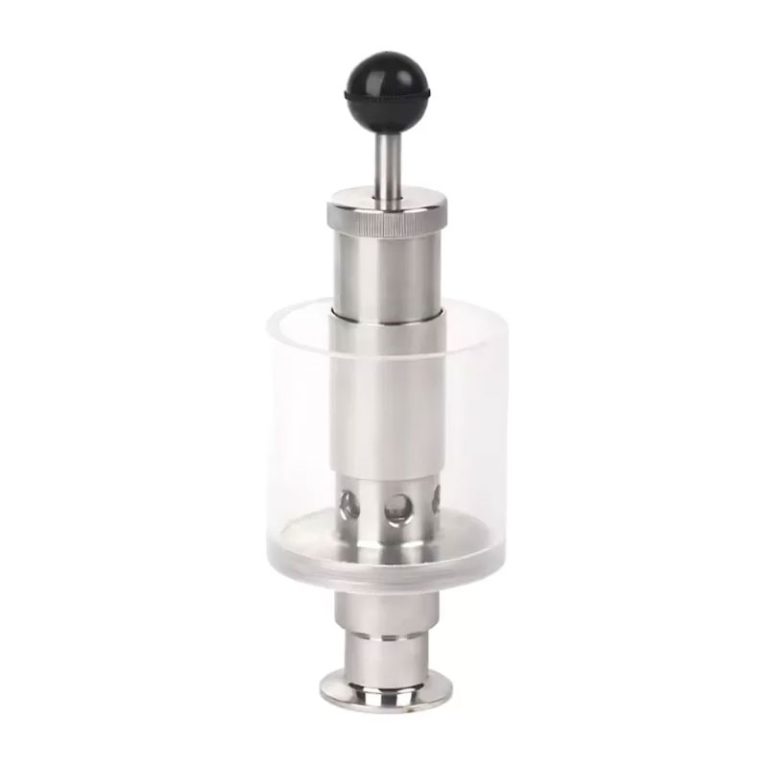

1x Adjustable pressure valve with water cup (air lock)
Adjustable pressure apparatus with the water cup (air lock), without a manometer, for fermenters, for the setting and keeping of required pressure in the tank. Adjustable pressure range from 0 bar up to 3.0 bar using the regulation screw with the spring. |
description |
1x Clamp | TriClamp 1.5″ 50.5mm
Clamp 1.5″ for the TriClamp connection system DIN 32676 – for connection discs with diameter 50.5 mm (DN 25-40) |
description |

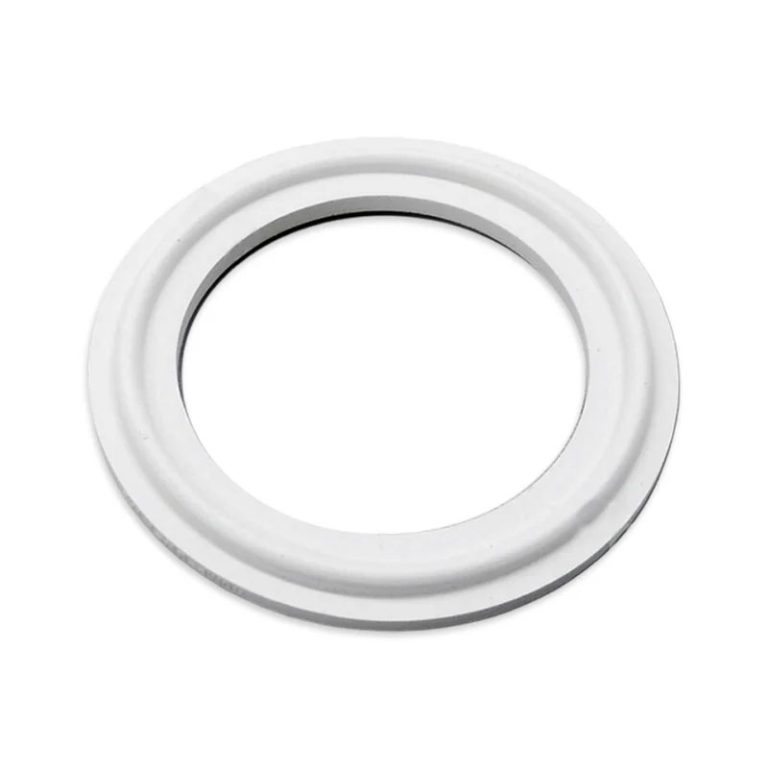

1x Silicone gasket ring | TriClamp 1.5″ 50.5mm
Gasket for the Tri Clamp 1.5″ connection DN 25. Material : Silicone |
description |
1x BALL LOCK coupler – beverage | TriClamp 1.5″ 50.5mm
TriClamp hole plug (50.5mm / 1.5″) with BALL LOCK beverage connector – an universal and easy-to-use solution for all vessels equipped with a CLAMP 1.5″ (50.5 mm) port. |
description |
1x BALL LOCK coupler – gas | TriClamp 1.5″ 50.5mm
TriClamp hole plug (50.5mm / 1.5″) with BALL LOCK gas connector – an universal and easy-to-use solution for all vessels equipped with a CLAMP 1.5″ (50.5 mm) port. |
description |
1x BALL LOCK coupler and relief valve | TC 1.5″
TriClamp hole plug (64mm / 2″) with the safety pressure relief valve 1.0 bar and the BALL LOCK beverage connector – an universal and easy-to-use solution for all vessels equipped with a CLAMP 2″ (64 mm) port. |
description |
1x Hose mandrel 10mm | TriClamp 1.5″ 50.5mm
Hose connector with outer diameter of 10mm > TriClamp 1.5″ (DIN32676 Ø 50.5mm) AISI 304.
|
description |
1x Ball float with silicone dip hose 60 cm
Ball float with silicon dip hose 60 cm. Silicone hose with stainless steel float allowing you to draw the clearest beer from the fermenter.
|
description |
1x Food hose 5.0 x 8.0mm, “EVA BARRIER”
Double-walled food hose with an outer diameter of 8mm and an inner diameter of 6mm. The unit price is for 1 meter of hose. Outer material EVA BARRIER, which makes the hose highly resistant to kinking when bent.
|
description |
2x BALL LOCK adapter | quick hose coupler for hose 8mm
The BALL LOCK coupler with integrated Duotight quick coupling for hoses with an outer diameter of 8mm (5/16″) – for gas.
|
description |

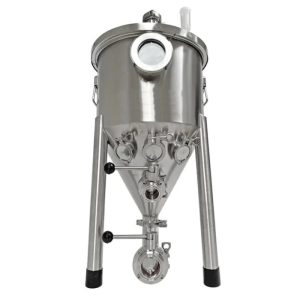

Designed for ConPro stainless steel fermenters :
