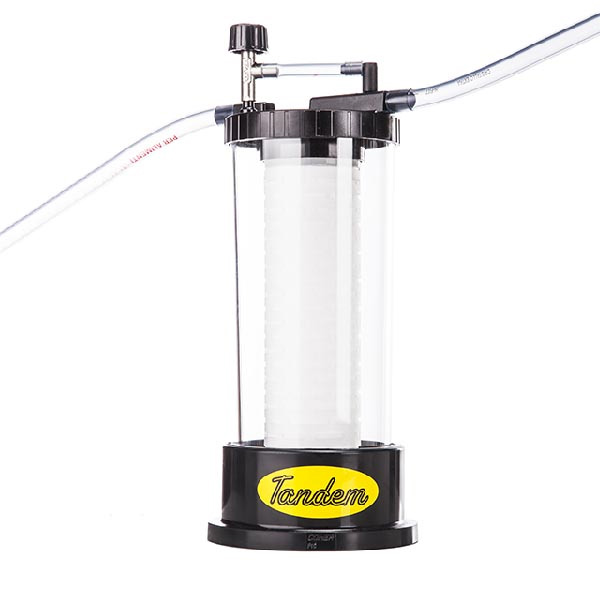

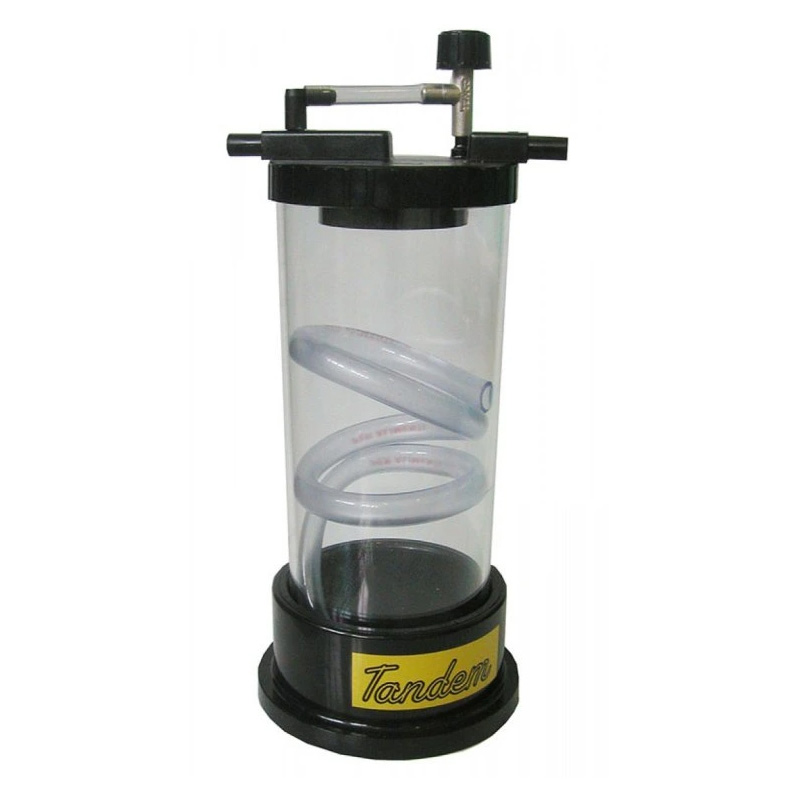

CMF1-ENL10TM : TANDEM candle mechanical beverage filter for 1pc of the ENOL 10″ filter candle with a capacity of 100 l / h

A simple filter system compatible with 10″ ENOL filtration candles for filtering water, beer or other drinks (the price does not include the filter insert). Suitable for filtering out solid particles from not yet saturated beer, cider, etc.

Specifications:

• High-pressure plastic housing for one ENOL 10″ mechanical filtration cartridge
• Includes 1 meter of silicone food hose 12x16mm.
• Inlet and outlet : plastic 1/2” (12.7mm) hose mandrel suitable for temperature max 50°C, pressure max 4.8 Bar.
• The filter insert is not included, it must be purchased separately – the type depends on the required fineness of filtration.

Filtering of beer isn’t just for commercial breweries anymore! Now you can benefit from this time saving process at home. Filtering your beer does much more than just give you a clearer, brighter beer. The filtering process can eliminate weeks of secondary aging, giving you better tasting beer much quicker than before. During secondary aging the primary effect is that more yeast settles out of suspension, carrying with it, proteins, polyphenols, and other flavour compounds that contribute to the “green” flavour of un-aged beers. Filtering will eliminate most of this yeast and those flavour compounds in a matter of minutes instead of weeks. Connect inline between the outlets of two kegs and use carbon dioxide to push beer through the filter before carbonation, and enjoy crystal clear, cleaner tasting beer.

Various liquids can be filtered, such as wine, fruit juices, milk, oil, etc.
The micronage of the candles is from 5 to 0.25 microns for plastic candles and 5,10,50 microns for stainless steel candles. The filter candle is not part of the filter.

The set includes:

1pc of the filter housing
1m of silicone food hose 12x16mm

Filter Housing Dimensions:

• Height … 350mm
• Width … 110mm
• Material …. plastic

Please Note: This product is NOT to be cleaned with chemicals !!

Compatible filtration cartridges :

• FMS10-ENL020 : 10″ filter candle for water and beverages – porosity 0.20 micrometer (ENOL)
• FMS10-ENL050 : 10″ filter candle for water and beverages – porosity 0.50 micrometer (ENOL)
• FMS10-ENL100 : 10″ filter candle for water and beverages – porosity 1.00 micrometer (ENOL)
• FMS10-ENL500 : 10″ filter candle for water and beverages – porosity 5.00 micrometer (ENOL)

• FMS10-ENL5IX : 10″ stainless steel filter candle for water and beverages – porosity 5 micrometer (ENOL) – AISI 304
• FMS10-ENL50IX : 10″ stainless steel filter candle for water and beverages – porosity 50 micrometer (ENOL) – AISI 304

Recommended pumps :

MGP-MKII25 : Magnetic pump 25W with a stainless steel head – suitable for drinks and liquids (temperature up to 120°C)

MGP-MKII65 : Magnetic pump 65W with a stainless steel head – suitable for drinks and liquids (temperature up to 120°C)
