Description

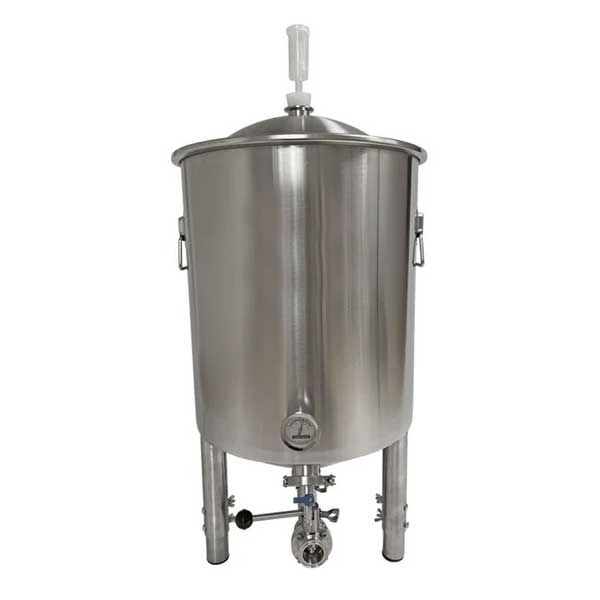

Simplified pressureless cylindrically-conical tank. Stainless steel fermenter with capacity of 55 liters without the cooling jacket, insulation jacket, with the thermometer and the air lock. The quality fermentation vessel of ConBas 55L is an ideal device for home brewers and ambitious young winemakers, but it is also suitable for professional use to produce alcoholic beverages such as beer, wine, cider in small volumes.
Main features :
- The ConBas 55 L is a stainless steel fermentation vessel designed for the non-pressurized fermentation of beer, cider, wine, or mead. Its conical bottom ensures that yeast and other sediments settle at the base, from where they can be easily drained or removed for further use.
- The interior surface of the vessel is perfectly smooth, making it very easy to clean. Once fermentation is complete, simply fill the vessel with a cleaning solution, rinse, and drain it through the bottom valve. Furthermore, the AISI 304 stainless steel does not absorb odors or flavors and ensures a long service life.
- The vessel is equipped with a 1.5″ Tri-Clamp bottom valve for easy yeast removal, as well as a 3/8″ dispensing tap with a rotatable spout, which can be used for taking samples or bottling the finished beverage.
- The lid features a silicone gasket and is secured with a quick-release clamp, ensuring a reliable seal throughout the fermentation process.
- The package also includes the airlock and the analog thermometer for temperature monitoring.
Main benefits :
- Designed for non-pressurized fermentation (beer, wine, cider)
- Capacity of the tank : up to 55–59 liters
- High-quality AISI 304 stainless steel
- Conical bottom for easy yeast separation
- Smooth interior surface for easy cleaning
- Adjustable stainless steel legs
Technical specifications and equipment:
- Maximum filling capacity: 55 L
- Total capacity: 59 L
- Material: AISI 304 stainless steel
- Exterior finish: Matte
- Interior finish: Smooth, polished stainless steel
- Stainless steel lid with a silicone gasket
- Opening for the airlock
- Three adjustable stainless steel legs (5 height positions)
- Two stainless steel handles
- Bottom outlet : butterfly valve DN 25 with the TriClamp 1.5″ (D=50.5 mm) pipe connection
- Sample tap : 3/8″ tap for sampling and bottling
- Analog thermometer included
- Airlock with gasket included
Dimensions :
- Vessel diameter: 40 cm
- Diameter including handles: 51 cm
- Height with legs retracted: 86.5 cm (97.5 cm including airlock)
- Height with legs extended: 105 cm (111 cm including airlock)
Main parameters :
| Total volume [liters] | 59 |
| Filling volume [liters] | 55 |
| Total height [mm] | 1050 |
| Total diameter [mm] | 510 |
| Hole diameter for the fermentation air lock [mm] | 23 |
| Upper drain valve (for clear product) | Not included |
| Lower drain valve (for sludges) | TriClamp 1.5″ DN25 |
| Colling spiral (inlet / outlet) – exernal diameter [mm] | Not included |
| Weight [kg] | 10.2 |
| Dimensions L x W x H [mm] | 510 x 400 x 1050 |
| Transporting weight [kg] | 14 |
| Transporting dimensions L x W x H [mm] | 600 x 600 x 1200 |
Standard properties, design and equipment
| Maximal allowed overpressure | 0 bar |
| Material | AISI 304 |
| Thermometer | yes |
| Inner surface – roughness | Ra<0.8μm |
| Outer surface – plates | 2B |
| Cooling spiral (submersible) | no |
| Cooling channels in the cylindrical part | no |
| Cooling channels in the conical part | no |
| Insulation of the tank | no |
| Outer jacket | no |
| Lid with drill hole for fermentation lock | yes |
| Double jacket cooling channel in/out | no |
| Manometer | not available |
| Automatic temperature control system | not available |
| Independent safety overpressure valve | not available |
| Underpressure – ovepressure valve | not available |
| Fermentation lock and plug | yes |
| Overpressure setting mechanism [range] | not available |
| Product level indicator | not available |
| Carbonization stone | not available |
| Stable feet [pcs] | 3 |
| Usable for the fermentation process | yes |
| Usable for the maturation process | no |
| Usable for the storage of the finished product | no |
| Usable for the product clearing under pressure | no |
| Usable for the product filtration under pressure | no |
| Usable for manual filling of the product into kegs | no |
| Usable for manual filling of the product into bottles | no |
| Usable for machinery filling of the product into kegs | no |
| Usable for machinery filling of the product into bottles | no |
Recommened accessories :
CCT-55CBCL : Lid with the cooling coil for the ConBas 55L Cylindrically-conical tank
