BIBMFK-120 : Manual Filling Kit for the Bag-in-Box | Filling gun with digital flowmeter and the filling plate | 10-120 l/min

 419 excluding VAT

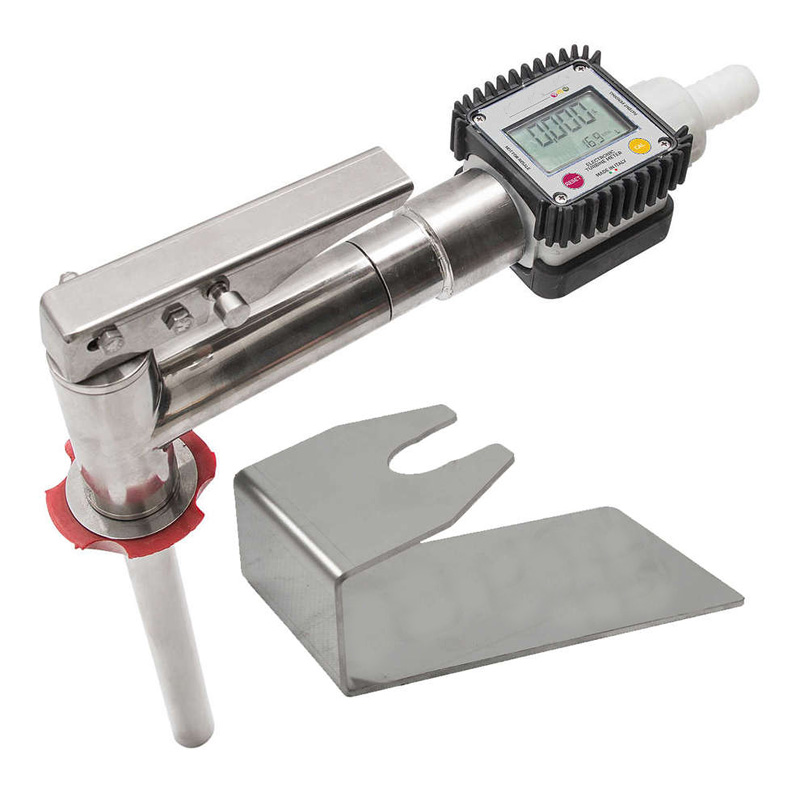

Manual filling kit for the Bag-in-Box which consists of the filling gun with the digital flowmeter and the stainless steel filling plate, with capacity of 10-120 l/min.

Description

Manual filling kit for the Bag-in-Box which consists of the filling gun with the digital flowmeter and the stainless steel filling plate, with capacity of 10-120 l/min.



The Manual Filling Kit for the Bag-in-Box consists of :

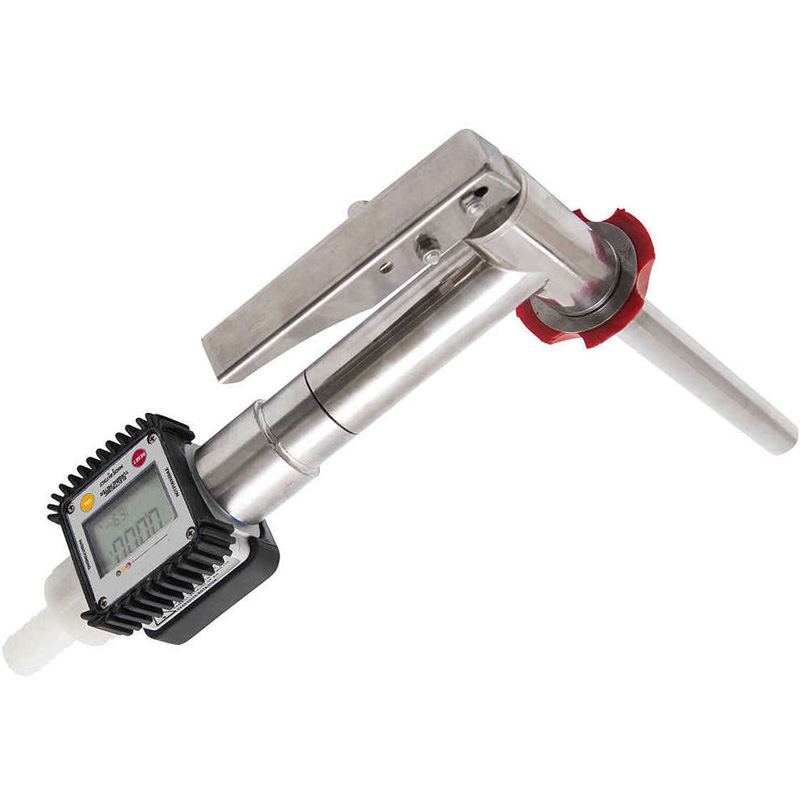

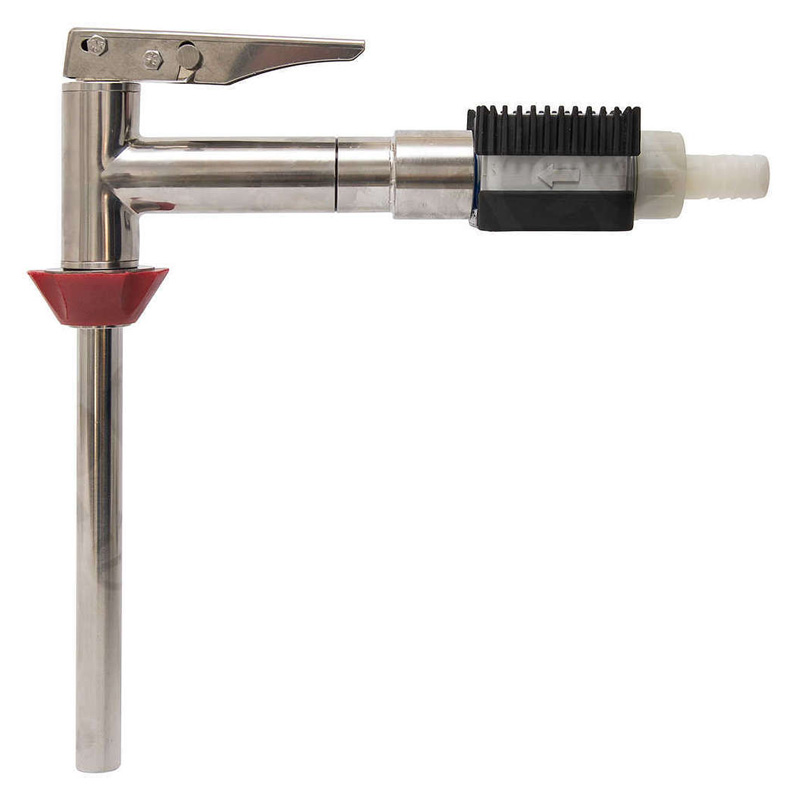

1) Filling gun with the digital flowmeter

The filling gun with flowmeter is a professional accessory indicated for the filling of non-carbonated food liquids such as fruit juice, wine and milk, into Bag-InBox packages. Designed for the needs of both large beverage production factories and small businesses, the gun is complete with a practical counter that allows you to easily monitor the quantity of litres while pouring the liquid inti the bags.
The filling gun consists of a display and a stainless steel pistol tap, which is lightweight, resistant to use and abrasion, it could be easily clean and it maintains the organoleptic properties of the liquids.

The digital litre counter has hose nozzle with diameter of 20 mm and is complete with a semi-automatic filling system that constantly monitors the quantity of flowing through liquid, facilitating work operations by making the transfer faster. The display is powered by easily replaceable batteries.

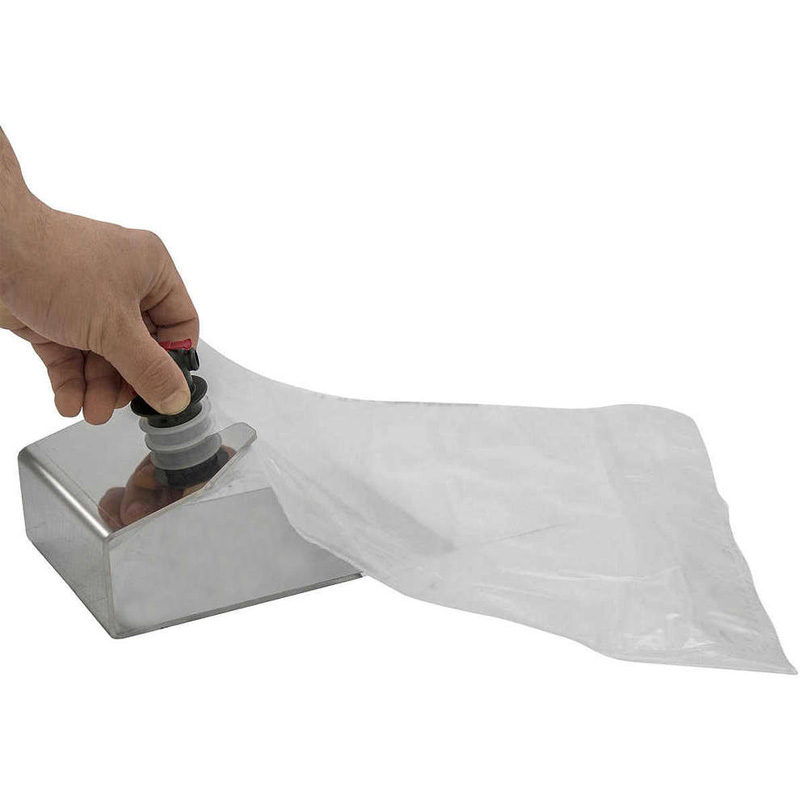

2.) Bag-in-Box filling plate

The specially designed stainless steel plate is an indispensable support for filling and capping the filled bags.
This useful support makes your job easier and faster.



Technical characteristics

Filling gun
  • Material: stainless steel AISI 304
  • Hose connector: diameter ø20
  • Gun faucet
  • Electronic display
  • Battery powered
  • The appliance in compliance with CE safety standards



Flowmeter
  • Flow rate (Range): 10 – 120 l/min (Water)
  • Working pressure: 15 Bar (Max)
  • Storage temperature: -20° / +70 °C
  • Working temperature: -10° / +50 °C
  • Viscosity of liquid : 2 / 5,35 cSt
  • Accuracy (between 15 and 120 l/min): ±1 of indicated value after calibration (%)
  • Power supply: Alkaline batteries 2×1,5V size AAA
  • Duration: Usualy 12-36 Months (according to actual operating hours)



Warning: Bag in Box are NOT included

Additional information

Weight 8 kg
Dimensions 300 × 300 × 200 mm
