TFLCB-1000 Tank with floating lid and conical bottom 1000 liters

These storage tanks are suitable for storing smaller quantities of wine, fruit must or cider. Flat reinforced upper rim of the storage tank gives strength and stability and prevents any deformations of the tank jacket. There are no blind spots and liquid cannot remain under the upper rim.

The floating lid continuously adapts to the level of beverage in the tank and there is no need to add beverage. Floating lid gasket prevents the inflow of air and thus uncontrolled oxidation. Tanks are also equipped with anti-dust cover.

Technical details:

• Volume: 1000L
• Material: Stainless steel AISI 304 (DIN 1.4301, ČSN 17.240) meeting the food certificate
• Material strength: 1.2mm
• Dimensions: Diameter 930x1890mm Height (+ 390mm feet)
• Approximate weight: 55Kg

Product description:

High quality workmanship. The upper bend provides enhanced strength of the stainless steel container.
The stainless steel containers are made of AISI 316 (DIN 1.4401, ČSN 17.346).

– Simple and fast cleaning.
– Beverage inside the tank does not catch the smell of other types of beverage and juice already stored in the barrel.
– Beverage does not come into contact with air.
– Suitable for wine, fruit juices, musts, milk, etc.

The pressurizable sealing of the stainless tank is ensured by a silicone tube that fills the space between the floating lid and the tank wall and prevents access to the air.
Stainless steel tanks with floating lid on principle of the pressurizable soul are supplied in volumes: 75 – 6000 l

The tank includes :

• anti-dust cover
• floating lid
• silicone seal (expandable by compressed air)
• pump with manometer
• plastic fermentation plug
• feet (welded to the tank)
• conical bottom with 3 pcs of pipe-outlets (DN20 thread for the sampling valve, 1-inch external thread in bottom of barrel, 1-inch external thread in conical bottom)

Note: The valves are not part of the tank.
The stainless steel tank requires to be equipped with : two pieces of 1-inch valves and one piece of the sampling valve DN20.

Recommended optional accessories :

I. Draining ball valve … € 33

Stainless steel ball valve for draining the tank (2x F thread 1″)

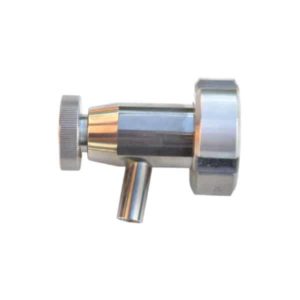

II. Sampling valve… € 26

Stainless steel ball valve for samples (NW 20″)

III. Inflatable silicone seal for stainless steel tanks with floating lid (1000L) … € 39

Silicone inflatable seal for stainless steel container with a diameter of 700 mm. The seal is made of a material that is non-stick and resistant to acids.

IV. Pump for the stainless steel tanks with floating lid … € 45

Note: The photographs are illustrative only.
