Description
Complete set of stainless steel accessories for achieve pure steam (in culinary quality – for direct contact with food) based on the Spirax Sarco CSF16 Culinary Steam Filter, intended for a 3/4″ steam pipe line.
Intended for maximal steam pressure of 12 bar.
Main advantages of the SSFS-MX34 steam filtration set :
- Culinary Steam Filter Station Kit includes all components required to conform to 3A Accepted Practice 609-03
- The Spirax Sarco CSF16 filter is 3A Certified
- Cleanable element reduces total cost of ownership
- Filter station kits available from one source ensure equipment compatibility
- Effective moisture and particle separation for optimum processing efficiency
- Compact design for ease of installation and maintenance
- All components including the connection material are made of stainless steel AISI 304.
The SSFS-MX34 complete set includes:
- A condensate separator with associated trap kit, which removes residual condensate and water droplets carried in suspension within the steam.

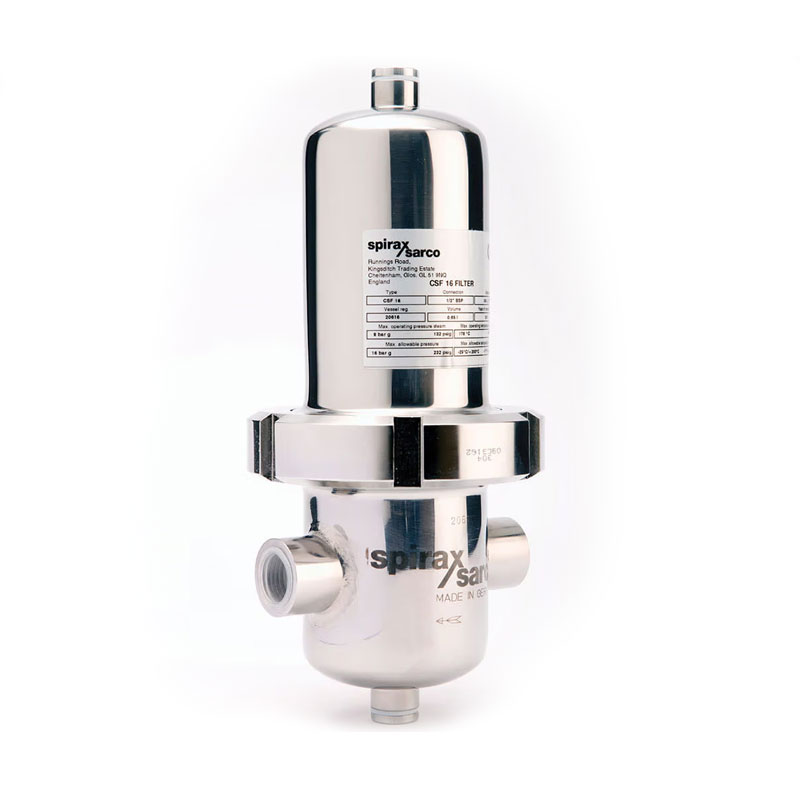

- The CSF16 Spirax Sarco 3A certified steam filter.
- Pressure gauge assemblies up and downstream of the filter to provide visual indication of when elements need to be cleaned and replaced.
- Sample cooler for sampling steam downstream of the filtering device.
- Stainless steel pipe and sanitary components downstream of the filter, terminated with the G 3/4″ male threaded connections on both steam inlet and outlet.
Description of the full filtration set :
| DS-IN | Dirty steam – input |
| CS-OUT | Clean Steam – Output |
| SD | Steam Dryer |
| SSF | Spirax Sarco CSF16 Culinary Steam Filter |
| BV | Ball Valve |
| SF | Sieve Filter (for rough particles – with a removable sieve) |
| NRV | Non-Return Valve |
| PG | Pressure Gauge |
| CV | Condendate Remove Valve |
| SC | Sample Cooler (Pipe-In-Pipe steam cooler) |
| SM | Sampling Outlet |
| CO | Condensate Outlet |
| CV | Cold Water Inlet |
| HW | Hot Water Outlet |
Four combinations of the steam filtration set :
Recommended steam filtration set |
Sampling required | No sampling required |
| Length of the steam pipeline > 5 meters |
Filtration set No. 1 |
Filtration set No. 2 |
| Length of the steam pipeline < 5 meters |
Filtration set No. 3 |
Filtration set No. 4 |
Filtration set No. 1 (the full set) – Recommended for length of the steam pipe line more than 5 meters :
Filtration set No. 2 ( without possibility of sampling ) – Recommended for length of the steam pipe line more than 5 meters :
Filtration set No. 3 (the simplified set) – Recommended for length of the steam pipe line less of 5 meters :
Filtration set No. 4 (the simplified set without possibility of sampling) – Recommended for length of the steam pipe line less of 5 meters :
Spare parts :
Code : |
Description : |
Price : |
| SSFS-SVFC-34 | Filtration Sieve for the 3/4″ Sieve Filter (SV) | € 13,- |
| SSFS-SCFC-34 | … The Spirax Sarco filtration cartridge is cleanable with sterile water but it is necessary to exchange it every 12-36 months (depending on filter clogging) | € 855,- |
