PF-SPV-P40-20 Safety pressure valve DN40 from 0.5bar to 2.0bar

€ 280 excluding tax

PVP1a Safety pressure valve for pressure tanks for overpressure from 0.5bar to  2.0bar. Inner thread G 5/4″ female, optionaly TriClamp (DN40) . The PED 2014/64/EU certificate and EU declaration of conformity is included. This valve is designed for overpressure protection of the beverage production tanks in accordation with the PED European directive 2014/64/EU .

Clear selection
SKU: PF-SPV-P40-25 Category: Tag:

Description

Print Friendly, PDF & Email

PVP1a Safety pressure valve for pressure tanks for overpressure from 0.5bar to  2.0bar. Inner thread G 5/4″ female, optionaly TriClamp (DN40) . The PED 2014/64/EU certificate and EU declaration of conformity is included.

This valve is designed for overpressure protection of the beverage production tanks in accordation with the PED European directive 2014/64/EU .

Description :

Model : PVP1A – PF-SPV-P40-2

PED certificate number : 901/17/PED/B; OS1735

Designed for : air, carbon dioxide

Conections :  DIN11851  DN40, TriClamp diameter 50.5mm, G-thread 5/4″

Seat diameter : 34mm

Working pressure range : from 0 to 1.8bar

Maximal opening pressure : 2.0bar

Operating temperature : 1°C – 50°C

Sealing : Food-friendly silicone

Flow rate at 1.1bar : 10 – 100 liters per minute

Pressure range : adjustable from 0.5bar to 2.0bar

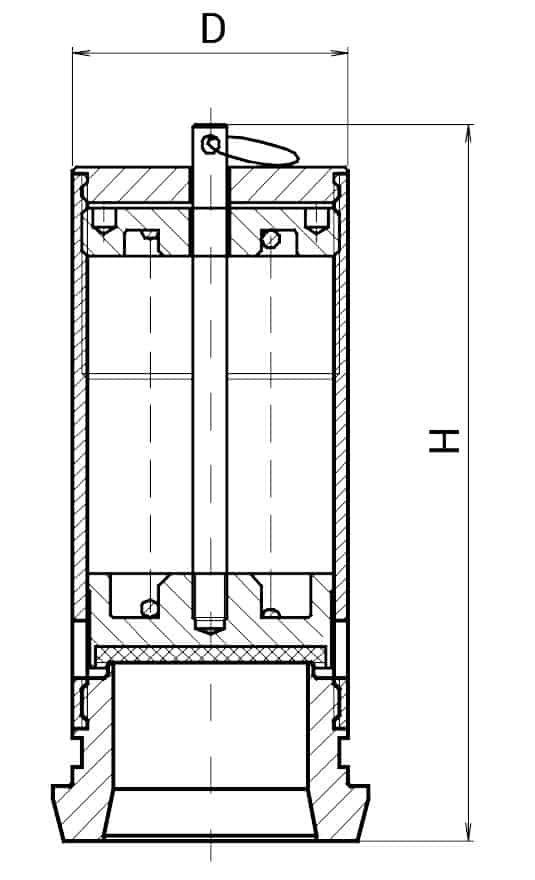

Height (H) : 125 mm

Diameter (D) : 48 mm

Weight : 0.73 kg

Material : AISI 304 / 1.4301

High reliability, long life





Material : Stainless Steel AISI 304 / 1.4301





Recommended part for using with all our beverage production tanks with capacity from 50 to 10000 liters. For use with tanks with bigger capacity more pieces of the safety valve are needed.



PED certificate :

Additional information

Weight 0.3 kg
Dimensions 100 × 100 × 100 mm
Connection

DIN11851-DN40, DIN32676-50.5mm, G 5/4"
