Description
The NIG-NP500P is a nitrogen generator based on a pressure swing adsorption (PSA) gas separation method with the production capacity up to 630 liters of the nitrogen gas per hour (with 99% purity). Max. pressure: 8 bar. An oil-free air compressor is built-in the nitrogen generator. Very cheap solution for small breweries – the nitrogen is useful as an inert push gas (for transport of product between pressure vessels or into the dispensing equipment in the pub) instead of expensive CO2. Made in Germany.
The package includes :
- Compressor, gas separation module
- Electronic control unit with display for compressor pressure and nitrogen pressure.
- The nitrogen generator is ready for operation after connection to the power supply and the pressure vessel.
About PSA technology
Adsorption is the adhesion of atoms, ions, or molecules from a gas, liquid, or dissolved solid to a surface. This process creates a film of the adsorbate on the surface of the adsorbent. This process differs from absorption, in which a fluid (the absorbate) is dissolved by or permeates a liquid or solid (the absorbent), respectively. Adsorption is a surface-based process while absorption involves the whole volume of the material. The term sorption encompasses both processes, while desorption is the reverse of it. Adsorption is a surface phenomenon.
Technical specification
Output values are given in liters per hour and based on an ambient temperature of 20 ° C and an air pressure
of 1013 mbar at a delivery pressure of 8 bar (g).
Purity of the Nitrogen :
- 99.0 % … 630 liters per hour
- 99.5 % … 600 liters per hour
- 99.9 % … On request
This model of the nitrogen generator is not equipped with double-gas blender.
Parameters
Purities of up to 99.99% are possible
Max. Delivery pressure of nitrogen 8.0 bar (g)
Max. Delivery pressure mixed gas 6.5 bar (g)
Ambient conditions 5 – 40 ° C
Air quality normal clean ambient air, free of solvents and other contaminants
Relative humidity <90%
Dimensions (LxWxH) : 1300 x 500 x 260 mm
Weight : 40-60 kg
Input ports : —–
Ouput ports : 3x 1/4″
Noise level : < 65 dB
Power supply : 230V 50 Hz
Electric. protection (CE) : IP22
The devices are designed for wall mounting or for installation on the floor indoors

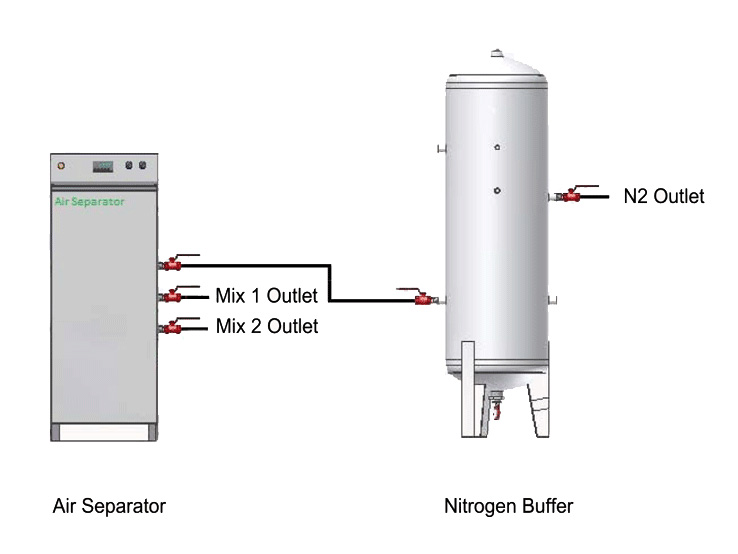

Pressure vessel: as an option are pressure vessels according to EN 286 available
