Description

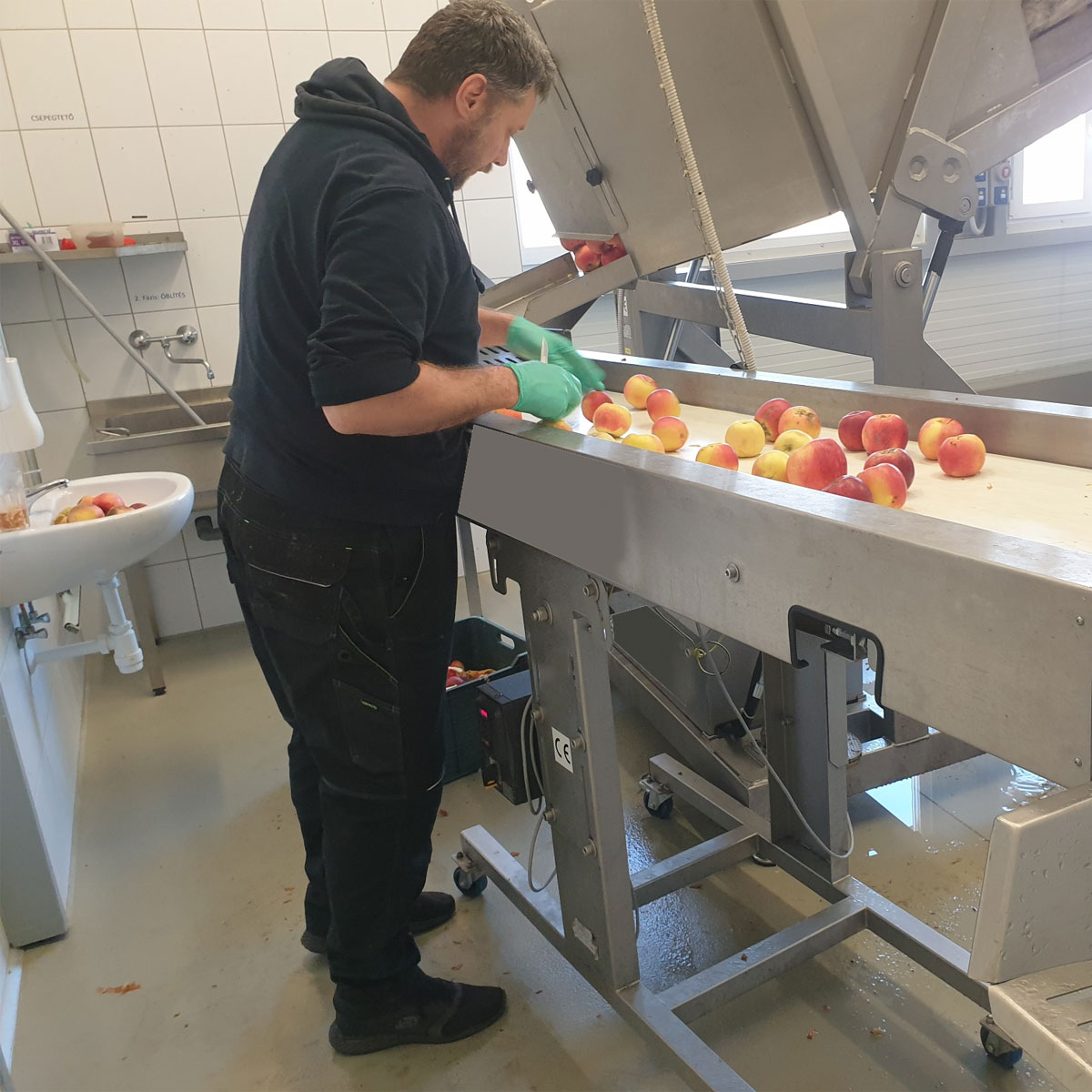

The FSC-6000MG Fruit sorting conveyor is device for the manual sorting of fruit and removing poor-quality fruits – and for transporting fruit from the fruit rinser to the fruit crusher. Capacity up to 6000 kg / hour.
Scrolling speed is adjustable netween 3-10 meters per minute. Working height is 1 meter. Capacity up to 6000 kg / hour. The construction is made of stainless steel WNr. 1.4301, AISI 304 . The machine is easy to clean, with massive food industrial conveyor belt, steplessly adjustable speed in both ways. Requires minimal maintenance.
FSC-6000-MG Technical description |
|
| Lenght: | 2530 mm |
| Width: | 530 mm |
| Height: | 1050 mm |
| Weight: | 110 kg |
| Output height: | 1270 mm (+/- 100mm depends on the tilt angle) |
| Electr. power source: | 0.55 kW |
| Supply voltage: | 1Ph 230V 50 Hz / 6A |
| Capacity: | up to 6000 kg/hr |
Optional equipment |
|
| Frequency inverter (speed control) | € 690,- |
| Elevation (higher in and output for request) / price for each 100 mm | € 320,- |
| Ribbed texture belt | € 690,- |
| Bearing for the axis | € 110,- |
Optional recommended accessories :
PBT-1000-MG : Pallet Bin Tipper for boxes with fruit 1000 kg
FWC-3000-MG : Fruit rinser and crusher 1000 up to 2000 kg/hour
