The FSC-3000MG Fruit sorting conveyor is device for the manual sorting of fruit and removing poor-quality fruits – and for transporting fruit from the fruit rinser to the fruit crusher. Capacity up to 3000 kg / hour.
Scrolling speed is adjustable netween 3-10 meters per minute. Working height is 1 meter. Capacity up to 3000 kg / hour. The construction is made of stainless steel WNr. 1.4301, AISI 304 . The machine is easy to clean, with massive food industrial conveyor belt, steplessly adjustable speed in both ways. Requires minimal maintenance.
FSC-3000-MG Technical description
|Output height:||1270 mm (+/- 100mm depends on the tilt angle)|
|Electr. power source:||0.55 kW|
|Supply voltage:||1Ph 230V 50 Hz / 6A|
|Capacity:||up to 3000 kg/hr|
|Frequency inverter (speed control)||€ 690,-|
|Elevation (higher in and output for request) / price for each 100 mm||€ 320,-|
|Ribbed texture belt||€ 390,-|
|Bearing for the axis||€ 110,-|
Optional recommended accessories :

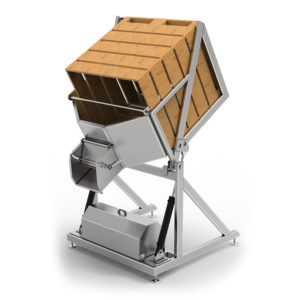

PBT-1000-MG : Pallet Bin Tipper for boxes with fruit 1000 kg
FWC-3000-MG : Fruit rinser and crusher 1000 up to 2000 kg/hour
