BLM-FE300G : Manual bottle labeler for round bottles (300-600 bottles per hour) without the stamp

The manual bottle labelling machine is perfect for use with cylindrical bottles with smooth surface and diameter of 50 to 120 mm. Operation capacity is 5 – 10 bottles per minute (300-600 bottles per hour), depending on the operator’s speed and skills. It is suitable to labelling round wine bottles, champagne bottles or beer bottles and cylindrical jars and cans.
The BLM-FE300G machine is suitable for attaching square, rectangular, circular or oval labels on the front or back side of the bottle.
The bottle labeller is made of polyethylene PE500 which is widely used for components in food machinery, it’s water proof and easy to clean.

Main properties :

• The labeling is carried out by just pulling the lever down and releasing it.
• The machine strictly follows the latest European directives in terms of safety
• Easy positioning of the label roll and paper passage thanks to the mechanical systems studied by us
• A large range of feasible diameters of the bottles
• Possibility of customization through the optional expanding kits

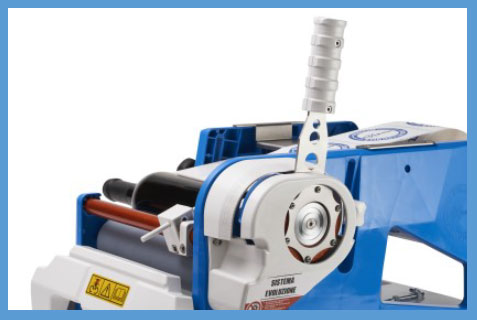

The manual bottle labelling system works by just pulling the lever down and releasing it. With just one simple and light movement the label sticks to the container desired.

This machine is designed to stick labels on the cylindrical bottles or containers with a diameter between 50 mm and 120 mm. It is perfect for containers of glass, jars, plastic, cans or for other cylindrical object with smooth surface. Adapt the labeller to the different types of containers is very easy and quick thanks to the particular regulation system. The new lever system minimises the effort and the movement speeding up the process of labelling. The labelling process remains always precise and accurate. The bottle labeller is made of polyethylene PE500, widely use for components in food machinery, it’s waterproof and easy to clean.

Technical parameters :

• Fully manually operated equipment
• Productivity : 5-10 bottles / min (300-600 bottles per hour)
• Construction material – Polyethylene PE500
• Rolls covering – Gray rubber
• Screws – Inox steel
• Weight : 12.1 kg
• Dimensions : 500 x 360 x 255 mm

Parameters of compatible bottles :

• Min. cylinder diameter: 50 mm
• Max. cylinder diameter: 120 mm
• Compatibility with bottles of square shapes: No
• Compatibility with bottles of round shape: Yes

Parameters of compatible labels :

• Label winding: external (out)
• Minimum tape width: 20 mm
• Max. tape width: 165 mm
• Min. label length: 20 mm
• Max. label length: 200 mm
• Inside diameter of reel: 76 mm
• Max. outer diameter of label roll: 250 mm

Accessories available for the bottle labeller :

• Manual number stamp for labels (date/batch)
• Stand for narrow label rolls
• Kit for second label placement
• Manual label sorter
• Automatic label sorter
  … prices of the optional accessories on demand
