Description

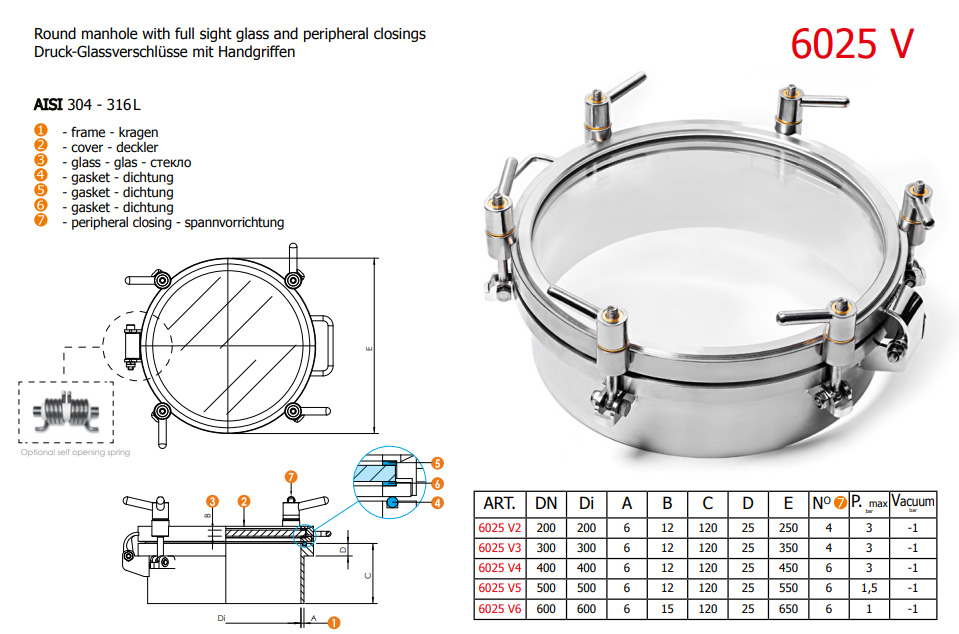

Round manhole DN400 with full glass door – maximal allowed pressure of +3 bar / -1 bar (PED certificate). Material : AISI 304 or AISI 316L.
Technical parameters :
- Material : AISI 304 / AISI 316L (according to choosed type)
- Sight glass material : Pressure resistant glass
- Gasket : Silicone
- Maximal pressure : +3 bar / -1 bar (PED certificate)
- Collar diameter : DN 400 (400 mm)
- Outer diameter (door, flange) : 450 mm
- Collar thickness : 6 mm
- Glass thickness : 12 mm
- Collar height : 120 mm
- Door flange thickness : 25 mm
- Number of locks : 6
